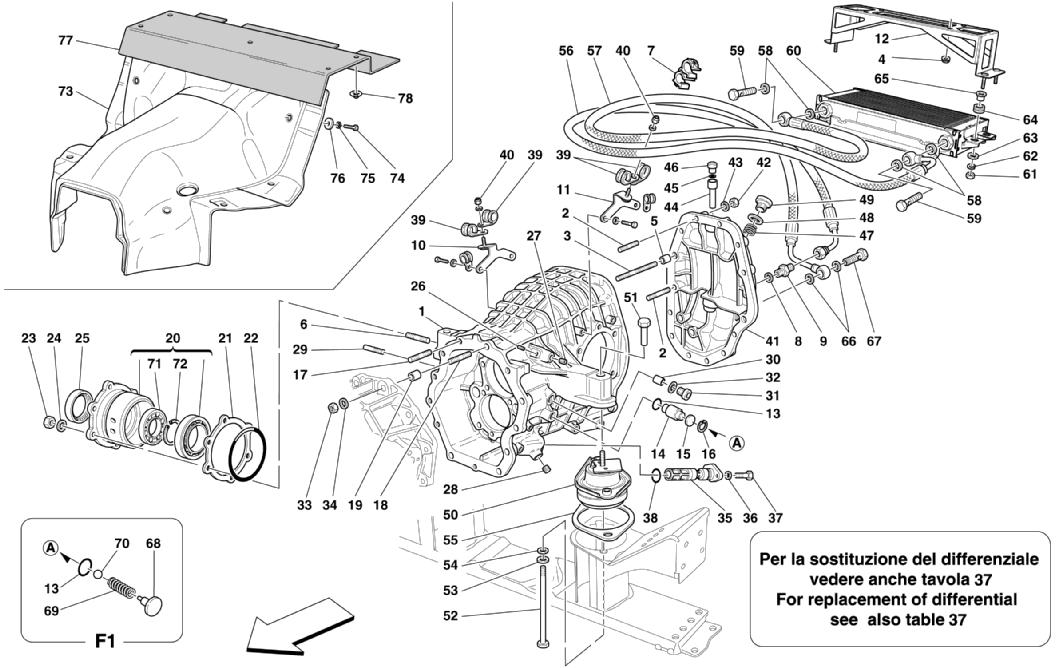

DIFFERENTIAL CARRIER AND CLUTCH COOLING RADIATOR

Go to Split View

DIFFERENTIAL CARRIER AND CLUTCH COOLING RADIATOR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 200431 *Qty: 1 COMPLETE GEARBOX ASSEMBLY -Valid till engine Nr. 90177 -Not as spare part Call
Location: - Prev | Next Part: 227408 *Qty: 1 COMPLETE GEARBOX ASSEMBLY -Valid from engine Nr. 90178 (gearbox Nr. 3) $14,875.99
Location: 1 Prev | Next Part: 190798 *Qty: 1 GEAR BOX 4rd ELEMENT -Not for F1 -With the complete gearbox 200431 Call
Location: 1 Prev | Next Part: 195650 *Qty: 1 GEAR BOX 4rd ELEMENT -Valid for F1 -With the complete gearbox 200431 Call
Location: 2 Prev | Next Part: 13543624 *Qty: 10 STUD $0.90
Location: 3 Prev | Next Part: 13543724 *Qty: 4 STUD $0.90
Location: 4 Prev | Next Part: 14048115 *Qty: 4 NUT Superseded
Location: 5 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $1.90
Location: 6 Prev | Next Part: 13546224 *Qty: 12 STUD $16.70
Location: 7 Prev | Next Part: 140728 *Qty: 2 FIXING CLIP $0.90
Location: 8 Prev | Next Part: 10259960 *Qty: 1 GASKET $0.90
Location: 9 Prev | Next Part: 198141 *Qty: 1 UNION $43.67
Location: 10 Prev | Next Part: 199017 *Qty: 1 R.H. BRACKET $25.92
Location: 11 Prev | Next Part: 199018 *Qty: 1 L.H. BRACKET $26.04
Location: 12 Prev | Next Part: 202294 *Qty: 1 OIL RADIATOR BRACKET FIXING $39.84
Location: 13 Prev | Next Part: 14453381 *Qty: 1 O.R. GASKET $1.37
Location: 14 Prev | Next Part: 153719 *Qty: 1 PIN -Not for F1 $17.82
Location: 15 Prev | Next Part: 154698 *Qty: 1 PAD -Not for F1 Call
Location: 16 Prev | Next Part: 11057476 *Qty: 1 SEEGER RING $0.90
Location: 17 Prev | Next Part: 13543524 *Qty: 6 STUD $0.90
Location: 18 Prev | Next Part: 13543624 *Qty: 1 STUD $0.90
Location: 19 Prev | Next Part: 102704 *Qty: 2 CENTERING DOWEL $1.90
Location: 20 Prev | Next Part: 189098 *Qty: 1 COMPLETE R.H. DIFFERENTIAL COVER $725.60
Location: 20 Prev | Next Part: 189100 *Qty: 1 COMPLETE L.H. DIFFERENTIAL COVER $725.60
Location: 21 Prev | Next Part: 150102 *Qty: 0 DITTO THINCKNESS mm. 1.6 $68.52
Location: 21 Prev | Next Part: 150106 *Qty: 0 DITTO THINCKNESS mm. 1.45 $89.10
Location: 21 Prev | Next Part: 150101 *Qty: 0 DITTO THINCKNESS mm. 1.5 $68.52
Location: 21 Prev | Next Part: 150105 *Qty: 0 DITTO THINCKNESS mm. 1.9 $107.25
Location: 21 Prev | Next Part: 150099 *Qty: 2 DIFFERENTIAL COVER THRUST THINCKNESS mm. 1,3 $74.59
Location: 21 Prev | Next Part: 150103 *Qty: 0 DITTO THINCKNESS mm. 1.7 $195.72
Location: 21 Prev | Next Part: 150107 *Qty: 0 DITTO THINCKNESS mm. 1.55 $107.25
Location: 21 Prev | Next Part: 175378 *Qty: 0 DITTO THINCKNESS mm. 1.75 $51.22
Location: 21 Prev | Next Part: 150100 *Qty: 0 DITTO THINCKNESS mm. 1.4 $68.52
Location: 21 Prev | Next Part: 150104 *Qty: 0 DITTO THINCKNESS mm. 1.8 $57.41
Location: 21 Prev | Next Part: 150108 *Qty: 0 DITTO THINCKNESS mm. 1.65 $68.52
Location: 22 Prev | Next Part: 14461381 *Qty: 2 O.R. GASKET $13.60
Location: 23 Prev | Next Part: 133988 *Qty: 12 NUT $0.90
Location: 24 Prev | Next Part: 12601474 *Qty: 12 WASHER $0.90
Location: 25 Prev | Next Part: 181618 *Qty: 1 R.H. GASKET $49.38
Location: 25 Prev | Next Part: 181617 *Qty: 1 L.H. GASKET $44.45
Location: 26 Prev | Next Part: 65928500 *Qty: 2 THREADED PLUG $17.92
Location: 27 Prev | Next Part: 14326150 *Qty: 1 THREADED PLUG $0.90
Location: 28 Prev | Next Part: 14326050 *Qty: 1 PLUG $1.50
Location: 29 Prev | Next Part: 16183021 *Qty: 1 SCREW $0.90
Location: 30 Prev | Next Part: 115376 *Qty: 3 BUSHING $23.74
Location: 31 Prev | Next Part: 150731 *Qty: 1 PLUG $4.26
Location: 32 Prev | Next Part: 10282460 *Qty: 1 GASKET $1.02
Location: 33 Prev | Next Part: 16100812 *Qty: 13 NUT $0.90
Location: 34 Prev | Next Part: 12601374 *Qty: 13 WASHER $0.90
Location: 35 Prev | Next Part: 143939 *Qty: 1 OIL FILTER ON THE GEAR BOX $102.38
Location: 36 Prev | Next Part: 11199277 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 10977624 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 182119 *Qty: 1 O.R. GASKET $2.59
Location: 39 Prev | Next Part: 10441590 *Qty: 4 BRACKET WITH SHEATH $0.90
Location: 40 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 41 Prev | Next Part: 190240 *Qty: 1 GEARBOX REAR COVER $156.84
Location: 42 Prev | Next Part: 16100812 *Qty: 14 NUT $0.90
Location: 43 Prev | Next Part: 12601374 *Qty: 14 WASHER $0.90
Location: 44 Prev | Next Part: 153500 *Qty: 1 EXTENSION FOR OIL EXHAUST $10.57
Location: 45 Prev | Next Part: 13415400 *Qty: 1 OIL DEFLECTOR DISC FOR VENT $0.90
Location: 46 Prev | Next Part: 13414691 *Qty: 1 OIL BREATHER $13.63
Location: 47 Prev | Next Part: 112254 *Qty: 1 THREADED INSERT $4.43
Location: 48 Prev | Next Part: 10263460 *Qty: 1 GASKET Superseded
Location: 49 Prev | Next Part: 10275011 *Qty: 1 PLUG $2.01
Location: 50 Prev | Next Part: 196868 *Qty: 2 FLEXIBLE PAD $274.08
Location: 51 Prev | Next Part: 196888 *Qty: 2 CENTERING STUD $14.33
Location: 52 Prev | Next Part: 195966 *Qty: 4 SCREW Call
Location: 53 Prev | Next Part: 14496624 *Qty: 4 WASHER $0.90
Location: 54 Prev | Next Part: 12601474 *Qty: 4 WASHER $0.90
Location: 55 Prev | Next Part: 196333 *Qty: 2 SUPPORT PLATE FOR ENGINE PAD $10.13
Location: 56 Prev | Next Part: 203323 *Qty: 1 OIL RETURN TUBE $335.66
Location: 57 Prev | Next Part: 203322 *Qty: 1 OIL DELIVERY TUBE $473.44
Location: 58 Prev | Next Part: 10261560 *Qty: 4 GASKET $0.90
Location: 59 Prev | Next Part: 10181911 *Qty: 2 UNION $7.48
Location: 60 Prev | Next Part: 200534 *Qty: 1 OIL RADIATOR $803.50
Location: 61 Prev | Next Part: 14048115 *Qty: 3 NUT Superseded
Location: 62 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 63 Prev | Next Part: 12644424 *Qty: 3 WASHER $0.90
Location: 64 Prev | Next Part: 103549 *Qty: 3 CABLE GROMMET $1.37
Location: 65 Prev | Next Part: 149707 *Qty: 3 SPACER $1.23
Location: 66 Prev | Next Part: 10259960 *Qty: 2 GASKET $0.90
Location: 67 Prev | Next Part: 195589 *Qty: 1 UNION $17.38
Location: 68 Prev | Next Part: 193578 *Qty: 1 BUSHING -Valid for F1 $25.13
Location: 69 Prev | Next Part: 100750 *Qty: 4 SPRING -Valid for F1 $1.60
Location: 70 Prev | Next Part: 101612 *Qty: 4 BALL -Valid for F1 $1.23
Location: 71 Prev | Next Part: 184995 *Qty: 1 BALL BEARING $72.82
Location: 72 Prev | Next Part: 185723 *Qty: 1 SEEGER RING $4.80
Location: 73 Prev | Next Part: 66964000 *Qty: 1 HEAT PROTECTION SHIELD -Valid for F1 $3,249.03
Location: 73 Prev | Next Part: 67622200 *Qty: 1 HEAT PROTECTION SHIELD -Not for F1 Call
Location: 74 Prev | Next Part: 10902380 *Qty: 8 SCREW $0.90
Location: 75 Prev | Next Part: 14488670 *Qty: 8 WASHER $0.90
Location: 76 Prev | Next Part: 12643770 *Qty: 8 WASHER $0.90
Location: 77 Prev | Next Part: 66965600 *Qty: 1 SHIELD Call
Location: 78 Prev | Next Part: 68313900 *Qty: 5 PLATE Call
Location: 78 Prev | Next Part: 14228076 *Qty: 5 PLATE -Not as spare part -Replaced by 68313900 $2.06

* Quantity shown indicates the number of pieces used in the diagram.
