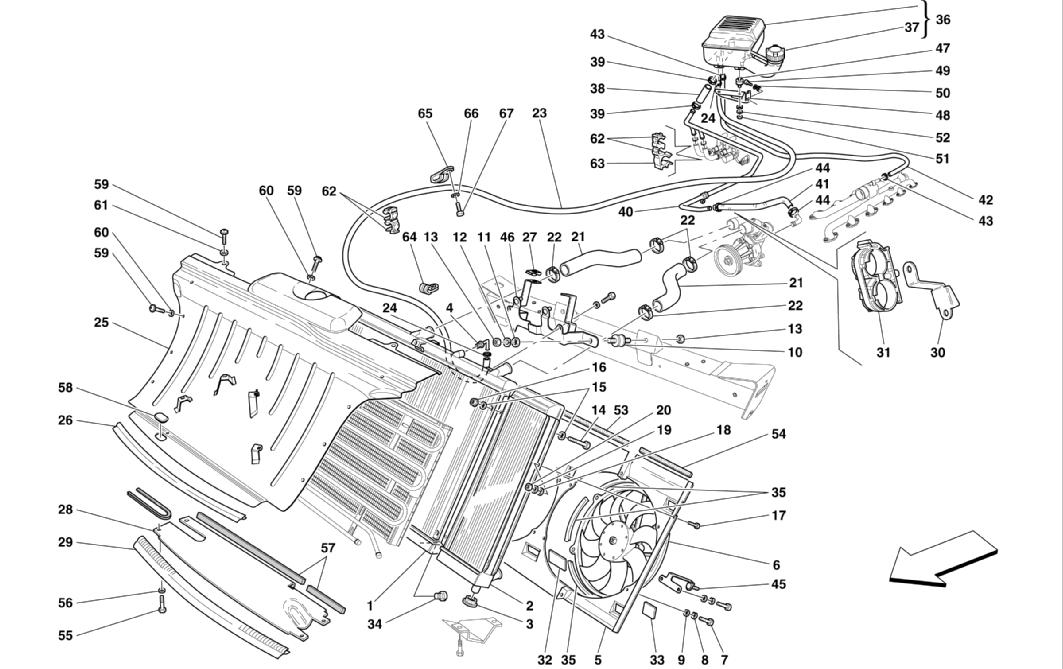

COOLING SYSTEM - RADIATOR AND NOURICE

Go to Split View

COOLING SYSTEM - RADIATOR AND NOURICE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 194142 *Qty: 1 WATER RADIATOR $2,469.19
Location: 2 Prev | Next Part: 194144 *Qty: 1 OIL RADIATOR $1,611.72
Location: 3 Prev | Next Part: 138926 *Qty: 2 RUBBER $4.95
Location: 4 Prev | Next Part: 201040 *Qty: 1 THREADED UNION $27.50
Location: 5 Prev | Next Part: 181601 *Qty: 1 HOOD FOR ELECTROFANS $452.72
Location: 6 Prev | Next Part: 208819 *Qty: 2 COMPLETE ELECTROFAN Call
Location: 7 Prev | Next Part: 14304324 *Qty: 8 SCREW $1.20
Location: 8 Prev | Next Part: 12637824 *Qty: 8 WASHER $0.90
Location: 9 Prev | Next Part: 127493 *Qty: 8 WASHER Superseded
Location: 10 Prev | Next Part: 157650 *Qty: 2 FIXING PAD $13.03
Location: 11 Prev | Next Part: 12646724 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 133989 *Qty: 4 NUT $0.90
Location: 14 Prev | Next Part: 15201024 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 14058311 *Qty: 1 NUT $0.90
Location: 17 Prev | Next Part: 14305224 *Qty: 4 SCREW $0.90
Location: 18 Prev | Next Part: 12648224 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 15896214 *Qty: 4 NUT Call
Location: 21 Prev | Next Part: 190637 *Qty: 2 SLEEVE $224.45
Location: 22 Prev | Next Part: 13000690 *Qty: 4 SCREW COLLAR $0.90
Location: 23 Prev | Next Part: 157746 *Qty: 1 PIPE FROM RADIATOR TO NOURICE -Not as spare part -Replaced by 213721 $40.07
Location: 23 Prev | Next Part: 213721 *Qty: 1 PIPE FROM RADIATOR TO NOURICE Call
Location: 24 Prev | Next Part: 177995 *Qty: 2 CLAMP $1.25
Location: 25 Prev | Next Part: 67781800 *Qty: 1 AIR UPPER CONVEYOR $1,165.83
Location: 26 Prev | Next Part: 68114900 *Qty: 1 AIR CONVEYOR GASKET $34.03
Location: 27 Prev | Next Part: 66927700 *Qty: 2 BRACKET $1.23
Location: 28 Prev | Next Part: 66951500 *Qty: 1 AIR LOWER CONVEYOR $61.72
Location: 29 Prev | Next Part: 68114800 *Qty: 1 AIR CONVEYOR GASKET $30.54
Location: 30 Prev | Next Part: 199474 *Qty: 1 PIPES SUPPORTING BRACKET $19.48
Location: 31 Prev | Next Part: 198101 *Qty: 1 CLIP $6.81
Location: 32 Prev | Next Part: 155441 *Qty: 1 STRAP $1.90
Location: 33 Prev | Next Part: 183649 *Qty: 5 STRAP $1.90
Location: 34 Prev | Next Part: 174538 *Qty: 1 PLUG $16.76
Location: 35 Prev | Next Part: 195910 *Qty: 12 GASKET $4.57
Location: 36 Prev | Next Part: 204043 *Qty: 1 FUEL CANISTER Call
Location: 37 Prev | Next Part: 195999 *Qty: 1 TANK PLUG $46.92
Location: 38 Prev | Next Part: 214257 *Qty: 1 RUBBER HOSE -Not for RHD $14.06
Location: 38 Prev | Next Part: 68124600 *Qty: 1 RUBBER HOSE -Valid for RHD Call
Location: 38 Prev | Next Part: 124028 *Qty: 1 RUBBER HOSE -Not for RHD -Not as spare part -Replaced by 214257 $9.33
Location: 39 Prev | Next Part: 186680 *Qty: 2 CLAMP $1.57
Location: 40 Prev | Next Part: 204029 *Qty: 1 RIGID PIPE -Not for RHD $133.59
Location: 40 Prev | Next Part: 207017 *Qty: 1 RIGID PIPE -Valid for RHD $232.15
Location: 41 Prev | Next Part: 199270 *Qty: 1 RUBBER HOSE $37.67
Location: 42 Prev | Next Part: 207763 *Qty: 1 RUBBER HOSE $38.27
Location: 42 Prev | Next Part: 155618 *Qty: 1 RUBBER HOSE -Not as spare part -Replaced by 207763 $40.51
Location: 43 Prev | Next Part: 177995 *Qty: 2 CLAMP $1.25
Location: 44 Prev | Next Part: 186680 *Qty: 2 CLAMP $1.57
Location: 45 Prev | Next Part: 200783 *Qty: 1 PIPES SUPPORTING BRACKET $15.84
Location: 46 Prev | Next Part: 199599 *Qty: 1 RADIATOR SUPPORTING BRACKET Call
Location: 47 Prev | Next Part: 102947 *Qty: 3 PAD $15.94
Location: 48 Prev | Next Part: 202910 *Qty: 1 BRACKET SUPPORTING NOURICE $22.95
Location: 49 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 50 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 51 Prev | Next Part: 15896214 *Qty: 3 NUT Call
Location: 52 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 53 Prev | Next Part: 181602 *Qty: 2 GASKET $1.48
Location: 54 Prev | Next Part: 181603 *Qty: 2 GASKET $0.90
Location: 55 Prev | Next Part: 16285127 *Qty: 4 SCREW $0.90
Location: 56 Prev | Next Part: 12638177 *Qty: 4 WASHER Superseded
Location: 57 Prev | Next Part: 62765800 *Qty: 1 ANTI-VIBRATIONS $1.48
Location: 58 Prev | Next Part: 62797700 *Qty: 1 PLUG $3.05
Location: 59 Prev | Next Part: 169815 *Qty: 12 SCREW $1.87
Location: 60 Prev | Next Part: 12638177 *Qty: 10 WASHER Superseded
Location: 61 Prev | Next Part: 12647777 *Qty: 2 WASHER Superseded
Location: 62 Prev | Next Part: 145543 *Qty: 10 CLIP $0.90
Location: 63 Prev | Next Part: 140730 *Qty: 2 CLIP $0.90
Location: 64 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 65 Prev | Next Part: 10441990 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 66 Prev | Next Part: 12637824 *Qty: 1 WASHER $0.90
Location: 67 Prev | Next Part: 10902424 *Qty: 1 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
