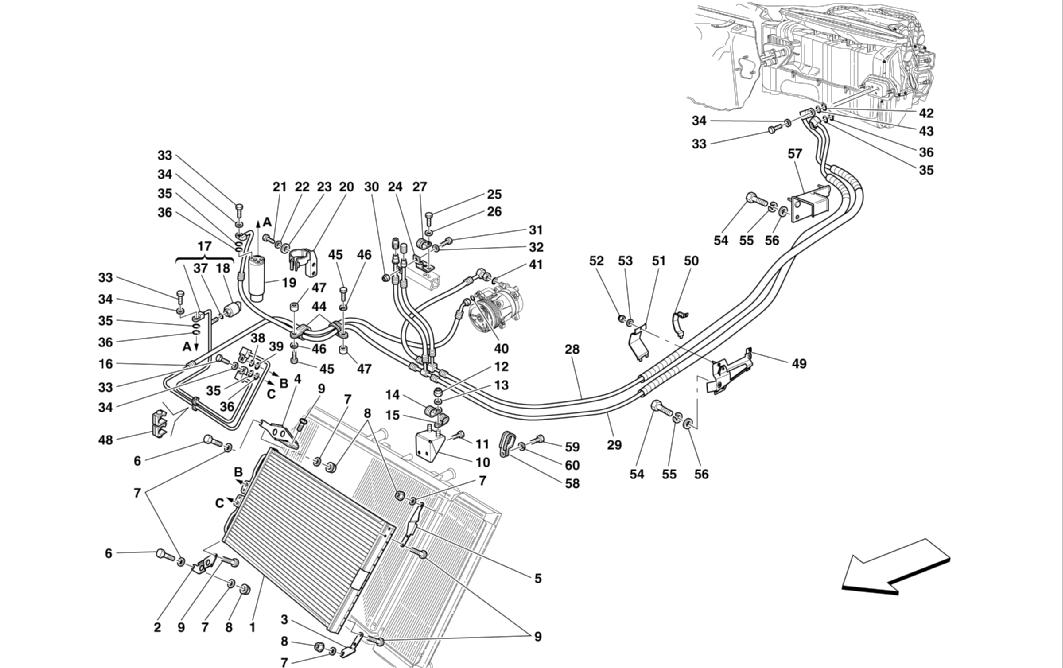

AIR CONDITIONING SYSTEM - FREON PIPES

Go to Split View

AIR CONDITIONING SYSTEM - FREON PIPES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 199479 *Qty: 1 A.C. CONDENSER $1,115.49
Location: 2 Prev | Next Part: 199486 *Qty: 1 LOWER R.H. BRACKET $62.72
Location: 3 Prev | Next Part: 199488 *Qty: 1 LOWER L.H. BRACKET $37.81
Location: 4 Prev | Next Part: 199485 *Qty: 1 UPPER R.H. BRACKET $86.93
Location: 5 Prev | Next Part: 199487 *Qty: 1 UPPER L.H. BRACKET $59.27
Location: 6 Prev | Next Part: 10977824 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 12637824 *Qty: 6 WASHER $0.90
Location: 8 Prev | Next Part: 14058311 *Qty: 4 NUT $0.90
Location: 9 Prev | Next Part: 165136 *Qty: 8 SCREW $0.90
Location: 10 Prev | Next Part: 67851700 *Qty: 1 PIPES FIXING BRACKET $27.54
Location: 11 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 169180 *Qty: 2 NUT $0.90
Location: 13 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 10441290 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 15 Prev | Next Part: 10441590 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 16 Prev | Next Part: 66983000 *Qty: 1 GAS PIPE FROM COMPRESSOR TO CONDENSER Call
Location: 17 Prev | Next Part: 66982800 *Qty: 1 GAS PIPE FROM CONDENSER TO FILTER $477.26
Location: 18 Prev | Next Part: 66374400 *Qty: 1 PRESSOSTAT $204.58
Location: 19 Prev | Next Part: 67085100 *Qty: 1 DEHYDRATING FILTER $73.92
Location: 20 Prev | Next Part: 67001100 *Qty: 1 DEWATERER FILTER FIXING BRACKET Call
Location: 21 Prev | Next Part: 10902424 *Qty: 3 SCREW $0.90
Location: 22 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 23 Prev | Next Part: 12643724 *Qty: 3 WASHER Superseded
Location: 24 Prev | Next Part: 67444300 *Qty: 1 PIPES FIXING BRACKET $15.77
Location: 25 Prev | Next Part: 10977824 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 13506704 *Qty: 2 WASHER $0.90
Location: 27 Prev | Next Part: 10441590 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 28 Prev | Next Part: 68124400 *Qty: 1 COMPRESSOR SUCTION PIPE -Valid for RHD $1,232.75
Location: 28 Prev | Next Part: 66983100 *Qty: 1 COMPRESSOR SUCTION PIPE -Not for RHD $358.97
Location: 29 Prev | Next Part: 66982900 *Qty: 1 PIPE FROM FILTER TO EVAPORATOR Call
Location: 30 Prev | Next Part: 169180 *Qty: 1 NUT $0.90
Location: 31 Prev | Next Part: 10977824 *Qty: 1 SCREW $0.90
Location: 32 Prev | Next Part: 127493 *Qty: 1 WASHER Superseded
Location: 33 Prev | Next Part: 10902624 *Qty: 4 SCREW $0.90
Location: 34 Prev | Next Part: 11193274 *Qty: 4 WASHER $0.90
Location: 35 Prev | Next Part: 68392000 *Qty: 4 O.R. GASKET $3.53
Location: 36 Prev | Next Part: 68392100 *Qty: 4 O.R. GASKET $3.53
Location: 37 Prev | Next Part: 66309600 *Qty: 1 O.R. GASKET Call
Location: 38 Prev | Next Part: 68392700 *Qty: 1 O.R. GASKET $1.80
Location: 39 Prev | Next Part: 66309700 *Qty: 1 O.R. GASKET $7.20
Location: 40 Prev | Next Part: 66309400 *Qty: 1 O.R. GASKET $2.18
Location: 41 Prev | Next Part: 66309500 *Qty: 1 O.R. GASKET $2.18
Location: 42 Prev | Next Part: 66309800 *Qty: 1 O.R. GASKET $4.73
Location: 43 Prev | Next Part: 68392800 *Qty: 1 O.R. GASKET $2.18
Location: 44 Prev | Next Part: 139512 *Qty: 2 BRACKET WITH SHEATH $2.56
Location: 45 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 46 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 47 Prev | Next Part: 13604115 *Qty: 2 SPACER $1.49
Location: 48 Prev | Next Part: 145543 *Qty: 2 FLEXIBLE CLIP $0.90
Location: 49 Prev | Next Part: 67851300 *Qty: 1 BRACKET FIXING PLATE $115.61
Location: 50 Prev | Next Part: 67851200 *Qty: 1 PIPES FIXING REAR BRACKET Call
Location: 51 Prev | Next Part: 67851100 *Qty: 1 PIPES FIXING FRONT BRACKET $14.70
Location: 52 Prev | Next Part: 15896214 *Qty: 1 NUT $0.90
Location: 53 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 54 Prev | Next Part: 10902424 *Qty: 5 SCREW $0.90
Location: 55 Prev | Next Part: 127494 *Qty: 5 WASHER $0.90
Location: 56 Prev | Next Part: 12643724 *Qty: 5 WASHER Superseded
Location: 57 Prev | Next Part: 67851600 *Qty: 1 PIPES FIXING BRACKET Call
Location: 58 Prev | Next Part: 61712500 *Qty: 2 BRACKET WITH SHEATH $1.89
Location: 59 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 60 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
