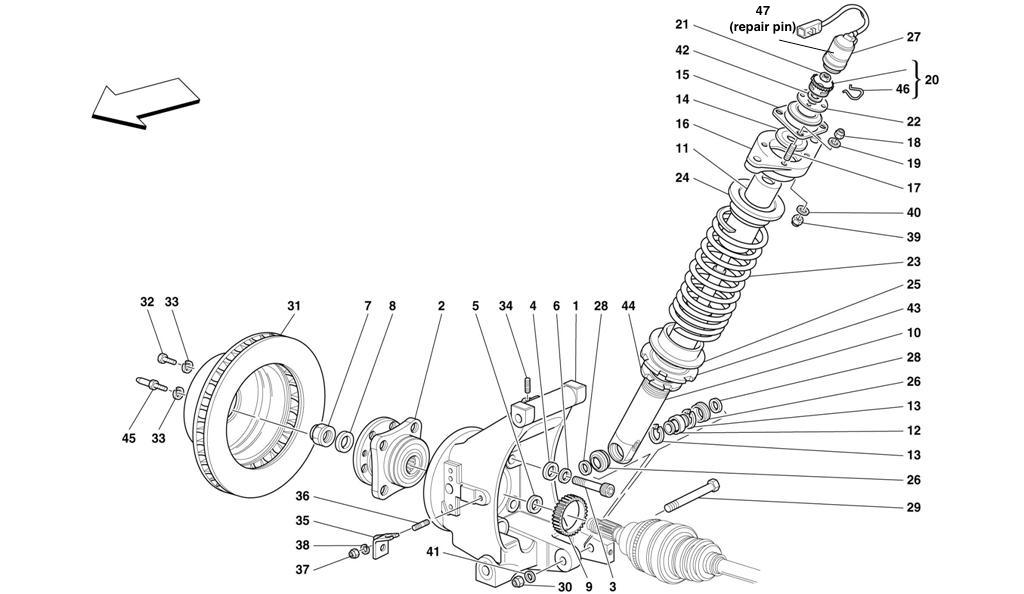

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: -0 Prev | Next Part: 178888 *Qty: 1 COMPLETE R.H. REAR HUB HOLDER $1,318.40
Location: -0 Prev | Next Part: 178889 *Qty: 1 COMPLETE L.H. REAR HUB HOLDER $2,898.47
Location: 1 Prev | Next Part: 178370 *Qty: 1 R.H. REAR HUB HOLDER -Not as spare part -With complete R.H. hub older $1,096.71
Location: 1 Prev | Next Part: 178371 *Qty: 0 PORTAMOZZO SX CPL $1,096.71
Location: 2 Prev | Next Part: 157901 *Qty: 2 HUB COMPLETE BEARING $1,372.74
Location: 3 Prev | Next Part: 14331974 *Qty: 8 SCREW $3.29
Location: 4 Prev | Next Part: 10732531 *Qty: 6 WASHER $0.90
Location: 5 Prev | Next Part: 153355 *Qty: 2 WASHER $5.50
Location: 6 Prev | Next Part: 152250 *Qty: 8 WASHER $0.90
Location: 7 Prev | Next Part: 167259 *Qty: 2 NUT Superseded
Location: 8 Prev | Next Part: 143332 *Qty: 2 WASHER $62.32
Location: 9 Prev | Next Part: 165101 *Qty: 2 REAR TOOTHED WHEEL $819.79
Location: 10 Prev | Next Part: 183636 *Qty: 2 REAR SHOCK ABSORBER -Sold in pair $1,750.59
Location: 11 Prev | Next Part: 155278 *Qty: 2 SHOCK ABSORBER PAD Call
Location: 12 Prev | Next Part: 153285 *Qty: 2 BALL JOINT $413.08
Location: 13 Prev | Next Part: 145478 *Qty: 4 SEEGER RING $2.22
Location: 14 Prev | Next Part: 152654 *Qty: 2 WASHER $26.92
Location: 15 Prev | Next Part: 114812 *Qty: 2 HYPERBLOCK $119.08
Location: 16 Prev | Next Part: 144712 *Qty: 2 CUP $150.76
Location: 17 Prev | Next Part: 13543324 *Qty: 8 STUD $3.53
Location: 18 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 19 Prev | Next Part: 10519624 *Qty: 8 WASHER $0.90
Location: 20 Prev | Next Part: 137824 *Qty: 2 SUPPORT $10.96
Location: 21 Prev | Next Part: 137826 *Qty: 2 NUT $3.70
Location: 22 Prev | Next Part: 152653 *Qty: 2 WASHER $78.70
Location: 23 Prev | Next Part: 168399 *Qty: 2 SPRING -Sold in pair -As an alternatives Call
Location: 23 Prev | Next Part: 156945 *Qty: 2 SPRING -Sold in pair $231.79
Location: 24 Prev | Next Part: 156978 *Qty: 2 UPPER SPACER $47.80
Location: 25 Prev | Next Part: 113581 *Qty: 2 LOWER SPACER $11.25
Location: 26 Prev | Next Part: 153286 *Qty: 4 RUBBER $5.00
Location: 27 Prev | Next Part: 158732 *Qty: 2 ACTUATOR ON THE SHOCK ABSORBER $1,117.93
Location: 28 Prev | Next Part: 153495 *Qty: 4 SPACER WASHER mm.3.00 $2.21
Location: 28 Prev | Next Part: 153496 *Qty: 0 SPACER WASHER mm.2.90 -As an alternative of 153495 $2.21
Location: 28 Prev | Next Part: 153497 *Qty: 0 SPACER WASHER mm.3.10 -As an alternative of 153495 $2.22
Location: 29 Prev | Next Part: 159309 *Qty: 2 SCREW $13.36
Location: 30 Prev | Next Part: 148020 *Qty: 2 NUT $4.84
Location: 31 Prev | Next Part: 144061 *Qty: 2 REAR BRAKE DISC $265.23
Location: 32 Prev | Next Part: 16043424 *Qty: 2 SCREW $0.90
Location: 33 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 34 Prev | Next Part: 11500124 *Qty: 2 STUD $0.90
Location: 35 Prev | Next Part: 168383 *Qty: 2 R.H. SUPPORT $4.11
Location: 35 Prev | Next Part: 168384 *Qty: 2 L.H. SUPPORT $4.11
Location: 36 Prev | Next Part: 11500124 *Qty: 2 STUD $0.90
Location: 37 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 38 Prev | Next Part: 10519424 *Qty: 2 WASHER Call
Location: 39 Prev | Next Part: 12574521 *Qty: 4 NUT $0.90
Location: 40 Prev | Next Part: 12601474 *Qty: 4 WASHER $0.90
Location: 41 Prev | Next Part: 12601574 *Qty: 2 WASHER $0.90
Location: 42 Prev | Next Part: 160461 *Qty: 2 WASHER $1.13
Location: 43 Prev | Next Part: 155086 *Qty: 2 SPACER $86.00
Location: 44 Prev | Next Part: 141860 *Qty: 2 RING NUT $65.00
Location: 45 Prev | Next Part: 104370 *Qty: 2 BRAKE DISC FIXING AND CENTERING SCREW $0.90
Location: 46 Prev | Next Part: 142079 *Qty: 2 CLIP $7.75
Location: 47 Prev | Next Part: SAG456/MONT *Qty: 2 ACTUATOR REPAIR GEAR AND PIN $40.00

* Quantity shown indicates the number of pieces used in the diagram.
