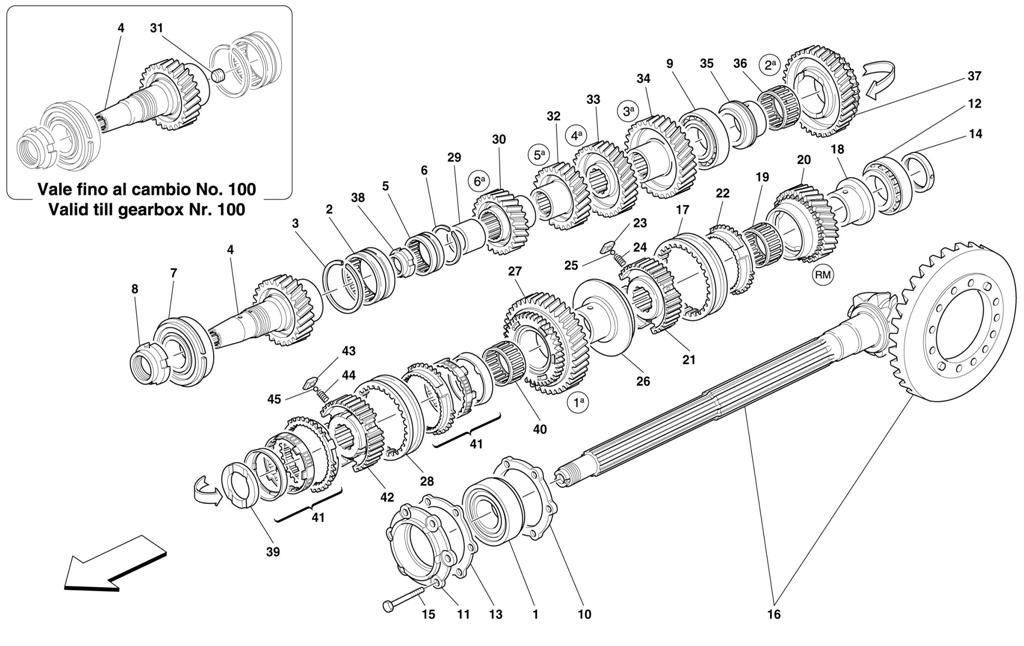

LAY SHAFT GEARS -NOT FOR 456M GTATABLE 37 - INSIDE GEARBOX CONTROLS -NOT FOR 456M GTA

Location Part # Quantity* Description Price Add To Cart
1 144498 1 BEARING FOR DRIVEN SHAFT DIFFERENTIAL SIDE $341.02
2 144486 1 ROLLER BEARING $51.97
3 144511 1 STOP RING Unavailable
4 177885 1 DRIVING GEAR -Z 31- -Valid from gearbox Nr. 101 $2,416.39
4 154749 1 DRIVING GEAR -Z 31- -Valid till gearbox Nr. 100 Unavailable
5 144476 1 ROLLER BEARING $56.82
6 144520 1 STOP RING Unavailable
7 148188 1 BALL BEARING $158.19
8 148137 1 RING NUT $17.78
9 131056 1 ROLLER BEARING $290.70
10 143924 1 RING $58.59
11 143923 1 BUSHING $88.69
12 121822 1 ROLLER BEARING $519.66
13 175375 1 SPACER Thick. mm. 1.85 $46.26
13 175376 1 SPACER Thick. mm. 1.9 $49.41
13 155718 1 SPACER Thick. mm. 2.0 $50.02
13 175377 1 SPACER Thick. mm. 1.95 $117.98
13 155719 1 SPACER Thick. mm. 1.6 $80.98
13 155720 1 SPACER Thick. mm. 1.8 $33.96
13 155721 1 SPACER Thick. mm. 2.2 $34.69
13 155722 1 SPACER Thick. mm. 2.4 $25.05
14 122152 1 SPACER $153.89
14 157668 1 SPACER -As an alternative of 122152 $111.83
15 16321434 6 SCREW $11.25
16 150876 1 CROWN WHEEL AND PINION COMPLETE R.11/40 -Valid till car Ass. Nr. 30093 $3,212.26
16 175727 1 CROWN WHEEL AND PINION COMPLETE R.11/40 -Valid from car Ass. Nr. 30094 $1,562.06
17 152198 1 SLEEVE Unavailable
18 152090 1 BUSHING $655.67
19 150004 1 ROLLER CAGE $25.96
20 155880 1 REVERSE GEAR -Z 34- $2,552.62
21 152203 1 SYNCHRONIZER BODY $404.96
22 152205 1 SYNCHRONIZER RING $341.00
23 152195 3 SMALL BLOCK Unavailable
24 152196 3 SPRING Unavailable
25 152197 3 BALL $4.45
26 152091 1 BUSHING $443.53
27 157251 1 COMPLETE PINION FOR 1ST GEAR -Z 45 $324.92
28 156931 1 SLEEVE Unavailable
29 143889 1 BUSHING $26.98
30 155852 1 PINION FOR 6TH GEAR -Z 33- $281.74
31 155577 1 PLUG -Valid till gearbox Nr. 100 $7.59
32 155851 1 PINION FOR 5TH GEAR -Z 30- $300.12
33 155771 1 PINION FOR 4TH GEAR -Z 32- $360.08
34 155769 1 PINION FOR 3RD GEAR -Z 35- $317.37
35 143892 1 BUSHING $102.19
36 104254 1 ROLLER CAGE $73.06
37 157253 1 COMPLETE PINION FOR 2ND GEAR -Z 40 $774.18
38 144048 1 RING NUT $65.53
39 157375 1 SPACER $12.48
40 104254 1 ROLLER CAGE $73.06
41 159088 2 SYNCHRONIZER RINGS SERIES $1,022.08
42 157255 1 SYNCHRONIZER BODY $674.95
43 157051 3 SMALL BLOCK $12.55
44 157049 3 SPRING $1.87
45 157050 3 BALL Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
