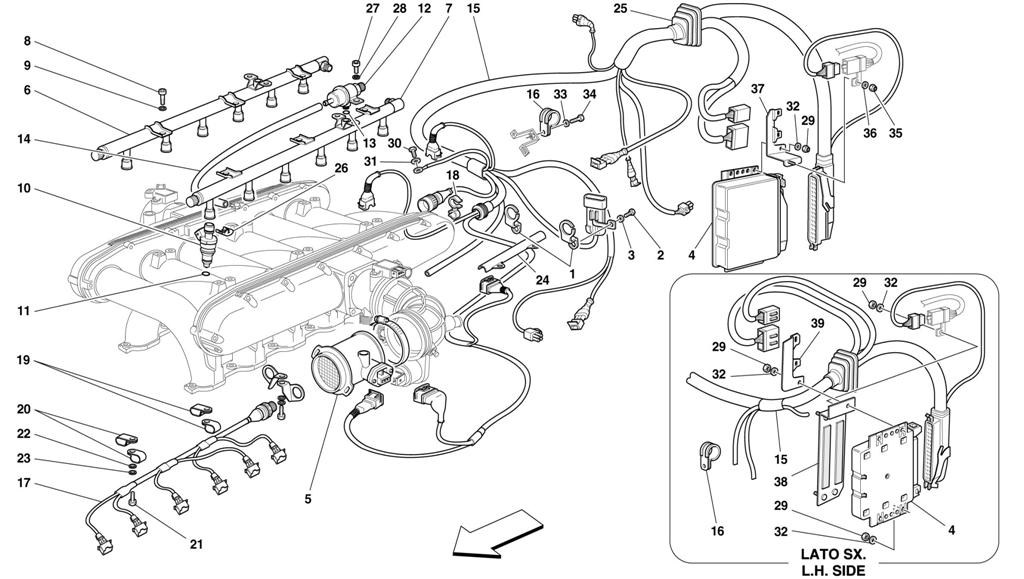

INJECTION DEVICE

Go to Split View

INJECTION DEVICE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155327 *Qty: 2 BRACKET $7.09
Location: 2 Prev | Next Part: 16043124 *Qty: 2 SCREW $0.90
Location: 3 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: 175805 *Qty: 2 PROGRAMMED ELECTRONIC CONTROL STATION -Not for 456M GTA -Valid for BRUNEI $3,812.54
Location: 4 Prev | Next Part: 175807 *Qty: 2 PROGRAMMED ELECTRONIC CONTROL STATION -Valid for 456M GTA -Valid for BRUNEI $3,812.54
Location: 4 Prev | Next Part: 175788 *Qty: 2 PROGRAMMED ELECTRONIC CONTROL STATION -Not for 456M GTA -Not for USA, CDN, AUS, BRUNEI and not f $3,801.98
Location: 4 Prev | Next Part: 175789 *Qty: 2 PROGRAMMED ELECTRONIC CONTROL STATION -Not for 456M GTA -Valid for not catalyzed cars $3,812.54
Location: 4 Prev | Next Part: 181679 *Qty: 2 PROGRAMMED ELECTRONIC CONTROL STATION -Not for 456M GTA -Valid for USA M.Y. 2000 and CDN M.Y. 200 $3,790.66
Location: 4 Prev | Next Part: 175792 *Qty: 2 PROGRAMMED ELECTRONIC CONTROL STATION -Valid for 456M GTA -Not for USA, CDN, AUS, BRUNEI and not $3,801.98
Location: 4 Prev | Next Part: 181680 *Qty: 2 PROGRAMMED ELECTRONIC CONTROL STATION -Valid for 456M GTA -Valid for USA M.Y. 2000 and CDN M.Y. 2 $3,790.66
Location: 4 Prev | Next Part: 175793 *Qty: 2 PROGRAMMED ELECTRONIC CONTROL STATION -Valid for 456M GTA -Valid for not catalyzed cars $3,812.54
Location: 4 Prev | Next Part: 175795 *Qty: 2 PROGRAMMED ELECTRONIC CONTROL STATION -Not for 456M GTA -Valid for USA, CDN and AUS -Not for USA Call
Location: 4 Prev | Next Part: 175797 *Qty: 2 PROGRAMMED ELECTRONIC CONTROL STATION -Valid for 456M GTA -Valid for USA, CDN and AUS -Not for U $3,801.98
Location: 5 Prev | Next Part: 162530 *Qty: 2 AIR INDICATOR $1,081.61
Location: 6 Prev | Next Part: 173751 *Qty: 1 R.H. INJECTORS COMPLETE TUBE $442.14
Location: 7 Prev | Next Part: 173745 *Qty: 1 L.H. INJECTORS COMPLETE TUBE $1,872.17
Location: 8 Prev | Next Part: 14305724 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 10 Prev | Next Part: 162613 *Qty: 12 ELECTRO-INJECTOR $413.40
Location: 11 Prev | Next Part: 133902 *Qty: 12 O.R. GASKET $6.14
Location: 12 Prev | Next Part: 167321 *Qty: 2 PRESSURE REGULATOR Call
Location: 13 Prev | Next Part: 152211 *Qty: 2 SEAL RING $7.03
Location: 14 Prev | Next Part: 115148 *Qty: 2 RUBBER HOSE -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $5.12
Location: 14 Prev | Next Part: 118901 *Qty: 2 RUBBER HOSE -Not for USA M.Y. 2000 and CDN M.Y. 2000 $5.31
Location: 15 Prev | Next Part: 177183 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for RHD -Valid till car Ass. Nr. 32851 $996.01
Location: 15 Prev | Next Part: 177184 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for RHD -Valid till car Ass. Nr. 32851 $2,462.05
Location: 15 Prev | Next Part: 174495 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Not for RHD - Not for USA M.Y. 2000 and CDN M.Y. 2000 -V $3,785.95
Location: 15 Prev | Next Part: 179857 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Not for RHD - Not for USA M.Y. 2000 and CDN M.Y. 2000 -V $771.04
Location: 15 Prev | Next Part: 174496 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Not for RHD - Not for USA M.Y. 2000 and CDN M.Y. 2000 -V $3,785.95
Location: 15 Prev | Next Part: 179858 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Not for RHD - Not for USA M.Y. 2000 and CDN M.Y. 2000 -V $763.55
Location: 15 Prev | Next Part: 179862 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for RHD -Valid from car Ass. Nr. 32852 Call
Location: 15 Prev | Next Part: 179863 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for RHD -Valid from car Ass. Nr. 32852 Call
Location: 15 Prev | Next Part: 180506 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $754.60
Location: 15 Prev | Next Part: 180507 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $801.22
Location: 16 Prev | Next Part: 10441990 *Qty: 2 BRACKET $0.90
Location: 17 Prev | Next Part: 168529 *Qty: 2 INJECTORS CONNECTION CABLES $857.92
Location: 18 Prev | Next Part: 145545 *Qty: 2 SPRINGS $0.90
Location: 19 Prev | Next Part: 10418401 *Qty: 2 FIXING BRACKET $4.92
Location: 20 Prev | Next Part: 10418601 *Qty: 2 FIXING BRACKET $1.08
Location: 21 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 154772 *Qty: 2 BRACKET FOR CABLES FIXING $40.61
Location: 25 Prev | Next Part: 139465 *Qty: 2 RUBBER BOOT $198.92
Location: 26 Prev | Next Part: 144763 *Qty: 12 INJECTORS RETAINING CLIP $3.04
Location: 27 Prev | Next Part: 172763 *Qty: 4 SCREW Call
Location: 28 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 29 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 30 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 31 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: 10519424 *Qty: 4 WASHER Call
Location: 33 Prev | Next Part: 127494 *Qty: 1 WASHER $0.90
Location: 34 Prev | Next Part: 10902024 *Qty: 1 SCREW $0.90
Location: 35 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 36 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 178750 *Qty: 1 R.H. BRACKET -Not for RHD Call
Location: 37 Prev | Next Part: 178751 *Qty: 1 R.H. BRACKET -Valid for RHD Call
Location: 38 Prev | Next Part: 175683 *Qty: 1 ABS CONTROL UNIT FIXING BRACKET $46.11
Location: 39 Prev | Next Part: 175674 *Qty: 1 L.H. BRACKET -Valid for RHD $23.24
Location: 39 Prev | Next Part: 175675 *Qty: 1 L.H. BRACKET -Not for RHD $13.41

* Quantity shown indicates the number of pieces used in the diagram.
