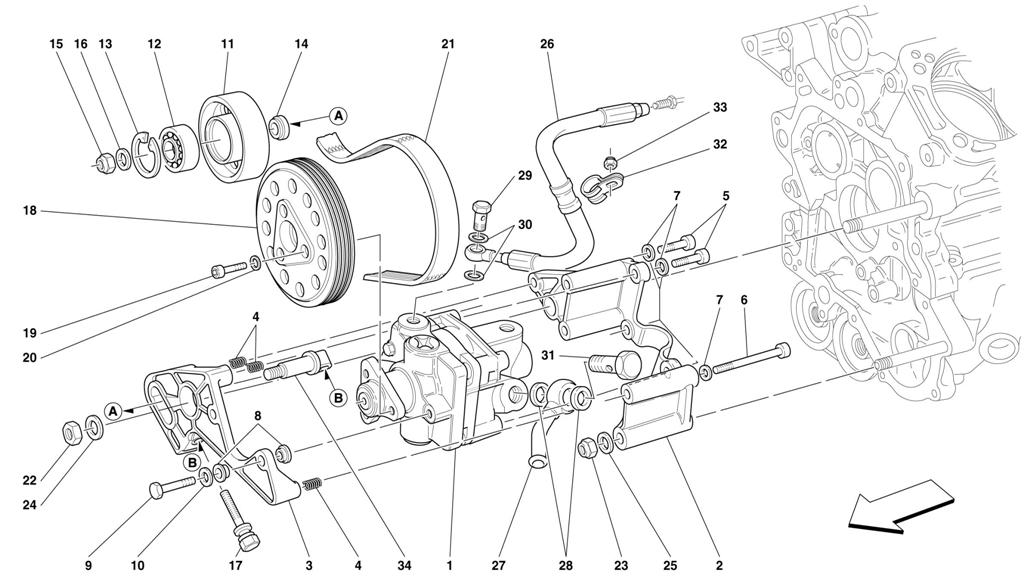

HYDRAULIC STEERING PUMPS

Location Part # Quantity* Description Price Add To Cart
1 154512 1 HYDRAULIC SERVO-CONTROL PUMP Unavailable
2 153360 1 INNER SUPPORT $172.08
3 153378 1 SUPPORT WITH BELT TIGHTENER $1,011.82
4 13525770 4 THREADED INSERT Unavailable
5 14306424 4 SCREW Unavailable
6 14307224 3 SCREW Unavailable
7 11193874 7 WASHER $0.90
8 150309 4 BUSHING $9.14
9 16052024 2 SCREW $3.19
10 12601374 2 WASHER $0.90
11 148631 1 PULLEY $534.88
12 123350 1 BEARING $48.70
13 11060076 1 SEEGER RING Unavailable
14 148638 1 SPACER Unavailable
15 148020 1 NUT $5.93
16 10730721 1 WASHER Unavailable
17 157289 1 SCREW $10.00
18 150333 1 PULLEY $293.31
19 14307024 3 SCREW Unavailable
20 12601374 3 WASHER $0.90
21 199834 1 WATER AND HYDR. STEERING PUMP BELT -Not for 456M GTA -Valid from car Ass. Nr. 31663 $38.96
21 199836 1 WATER AND HYDR. STEERING PUMP BELT -Valid for 456M GTA -Valid from car Ass. Nr. 31524 $30.84
22 148020 1 NUT $5.93
23 102742 1 NUT Unavailable
24 157115 1 WASHER $3.71
25 13550401 1 WASHER $1.99
26 154154 1 HOSE $621.16
27 155449 1 UNION -Valid for 456M GT RHD $483.12
27 166996 1 UNION -Not for 456M GT RHD $46.79
28 10261560 2 GASKET $1.06
29 113670 1 UNION $83.72
30 10260160 2 GASKET $1.10
31 155448 1 UNION $241.55
32 10441890 1 BRACKET WITH SHEATH $0.90
33 102741 1 NUT $0.90
34 153165 1 PIN Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
