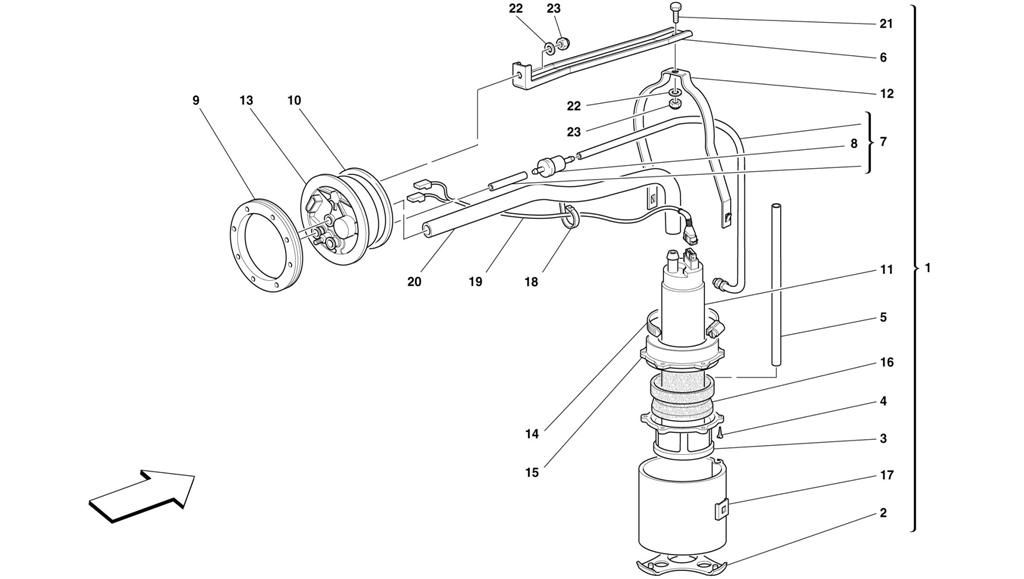

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 175332 *Qty: 2 COMPLETE FUEL PUMP $3,873.05
Location: 2 Prev | Next Part: 126807 *Qty: 2 ANTI-VIBRATIONS $35.50
Location: 3 Prev | Next Part: 126808 *Qty: 2 FILTER INSIDE CHAMBER $39.40
Location: 4 Prev | Next Part: 15671101 *Qty: 12 SCREW $6.37
Location: 5 Prev | Next Part: 126827 *Qty: 2 VENT PIPE Call
Location: 6 Prev | Next Part: 151661 *Qty: 2 BRACKET Call
Location: 7 Prev | Next Part: 175350 *Qty: 2 COMPLETE FUEL FLOWING BACK PIPE $1,825.27
Location: 8 Prev | Next Part: 166540 *Qty: 8 UNION $27.94
Location: 9 Prev | Next Part: 126838 *Qty: 2 RING NUT $216.36
Location: 10 Prev | Next Part: 126835 *Qty: 2 GASKET $44.21
Location: 11 Prev | Next Part: 173891 *Qty: 2 FUEL PUMP $436.03
Location: 12 Prev | Next Part: 153184 *Qty: 2 SPRING $56.72
Location: 13 Prev | Next Part: 173890 *Qty: 2 COVER $224.32
Location: 14 Prev | Next Part: 13000890 *Qty: 2 SCREW COLLAR $1.22
Location: 15 Prev | Next Part: 170512 *Qty: 2 FUEL FILTER COVER Call
Location: 16 Prev | Next Part: 170511 *Qty: 2 GASKET $85.00
Location: 17 Prev | Next Part: 153189 *Qty: 2 PAN Call
Location: 18 Prev | Next Part: 14560480 *Qty: 2 CLAMP $4.25
Location: 19 Prev | Next Part: 177354 *Qty: 2 FUEL PUMP CABLES ASSY Call
Location: 20 Prev | Next Part: 175331 *Qty: 2 FEEDING PIPE Call
Location: 21 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 10519424 *Qty: 4 WASHER Call
Location: 23 Prev | Next Part: 15896214 *Qty: 4 NUT Call

* Quantity shown indicates the number of pieces used in the diagram.
