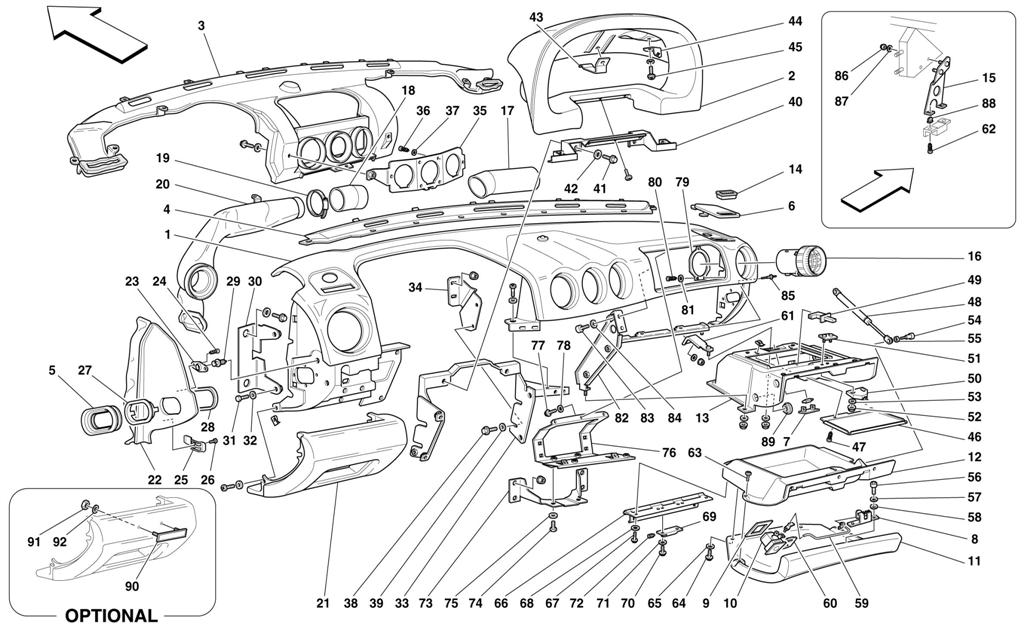

DASHBOARD

Go to Split View

DASHBOARD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 652893.. *Qty: 1 LINING -Not for RHD Unavailable
Location: 1 Prev | Next Part: 652894.. *Qty: 1 COVERED COMPLETE DASHBOARD FRAMEWORK -Not for RHD Unavailable
Location: 1 Prev | Next Part: 656306.. *Qty: 1 LINING -Valid for RHD Unavailable
Location: 1 Prev | Next Part: 656310.. *Qty: 1 COVERED COMPLETE DASHBOARD FRAMEWORK -Valid for RHD Unavailable
Location: 2 Prev | Next Part: 652897.. *Qty: 1 LINING -Not for RHD Unavailable
Location: 2 Prev | Next Part: 652898.. *Qty: 1 COVERED INSTRUMENTS DASH BOARD -Not for RHD Unavailable
Location: 2 Prev | Next Part: 656350.. *Qty: 1 COVERED INSTRUMENTS DASH BOARD -Valid for RHD Unavailable
Location: 2 Prev | Next Part: 656352.. *Qty: 1 LINING -Valid for RHD Unavailable
Location: 3 Prev | Next Part: 65630000 *Qty: 1 AIR DIFFUSER -Valid for RHD $988.83
Location: 3 Prev | Next Part: 65471800 *Qty: 1 AIR DIFFUSER -Not for RHD $929.60
Location: 4 Prev | Next Part: 63202100 *Qty: 1 LOWER ENCLOSURE Unavailable
Location: 5 Prev | Next Part: 63203500 *Qty: 2 AIR DUCTING OUTER GASKET $14.79
Location: 6 Prev | Next Part: 63204200 *Qty: 1 R.H. AIR OUTLET PLATE $94.92
Location: 6 Prev | Next Part: 63204300 *Qty: 1 L.H. AIR OUTLET PLATE $94.92
Location: 7 Prev | Next Part: 139517 *Qty: 1 DOME LAMP $14.27
Location: 8 Prev | Next Part: 63768800 *Qty: 1 DRAWER LOCK DEVICE $419.16
Location: 9 Prev | Next Part: 63768900 *Qty: 1 PLATE $1.37
Location: 10 Prev | Next Part: 64926500 *Qty: 1 CLOSE BUTTON Unavailable
Location: 11 Prev | Next Part: 656339.. *Qty: 1 GLOVE BOX SHUTTER -Valid for RHD Unavailable
Location: 11 Prev | Next Part: 656341.. *Qty: 1 LINING -Valid for RHD Unavailable
Location: 11 Prev | Next Part: 654103.. *Qty: 1 LINING -Not for RHD Unavailable
Location: 11 Prev | Next Part: 654104.. *Qty: 1 GLOVE BOX SHUTTER -Not for RHD Unavailable
Location: 12 Prev | Next Part: 65633700 *Qty: 1 GLOVE BOX CONTAINER -Valid for RHD $1,774.02
Location: 12 Prev | Next Part: 65410800 *Qty: 1 GLOVE BOX CONTAINER -Not for RHD $341.89
Location: 13 Prev | Next Part: 65634400 *Qty: 1 GLOVE BOX FRAME -Valid for RHD $614.52
Location: 13 Prev | Next Part: 65410600 *Qty: 1 GLOVE BOX FRAME -Not for RHD $569.83
Location: 14 Prev | Next Part: 63204000 *Qty: 1 R.H. AIR DIFFUSER $5.59
Location: 14 Prev | Next Part: 63204100 *Qty: 1 L.H. AIR DIFFUSER $5.59
Location: 15 Prev | Next Part: 168961 *Qty: 1 OBDII CONNECTOR FIXING BRACKET Unavailable
Location: 16 Prev | Next Part: 63352600 *Qty: 5 AIR OPENING $235.93
Location: 17 Prev | Next Part: 63219600 *Qty: 1 R.H. SLEEVE -Not for RHD $37.43
Location: 17 Prev | Next Part: 65216600 *Qty: 1 R.H. SLEEVE -Valid for RHD $64.26
Location: 18 Prev | Next Part: 64273800 *Qty: 1 L.H. SLEEVE -Not for RHD $55.82
Location: 18 Prev | Next Part: 65217300 *Qty: 1 L.H. SLEEVE -Valid for RHD $61.45
Location: 19 Prev | Next Part: 13000890 *Qty: 2 SCREW COLLAR $1.22
Location: 20 Prev | Next Part: 65289900 *Qty: 1 R.H. AIR DUCTING -Not for RHD $61.45
Location: 20 Prev | Next Part: 65290000 *Qty: 1 L.H. AIR DUCTING -Not for RHD Unavailable
Location: 20 Prev | Next Part: 65632200 *Qty: 1 R.H. AIR DUCTING -Valid for RHD $61.45
Location: 20 Prev | Next Part: 65632500 *Qty: 1 L.H. AIR DUCTING -Valid for RHD $61.45
Location: 21 Prev | Next Part: 656320.. *Qty: 1 R.H. DASHBOARD LOWER PART -Valid for RHD Unavailable
Location: 21 Prev | Next Part: 654663.. *Qty: 1 LH. LINING -Not for RHD Unavailable
Location: 21 Prev | Next Part: 654151.. *Qty: 1 L.H. DASHBOARD LOWER PART -Not for RHD Unavailable
Location: 21 Prev | Next Part: 656331.. *Qty: 1 R.H. LINING -Valid for RHD Unavailable
Location: 22 Prev | Next Part: 654303.. *Qty: 1 R.H. LATERAL DASHBOARD MOULDING -Not for RHD Unavailable
Location: 22 Prev | Next Part: 656357.. *Qty: 1 L.H. LATERAL DASHBOARD MOULDING -Valid for RHD Unavailable
Location: 22 Prev | Next Part: 656360.. *Qty: 1 L.H. LINING -Valid for RHD Unavailable
Location: 22 Prev | Next Part: 654666.. *Qty: 1 L.H. LINING -Not for RHD Unavailable
Location: 22 Prev | Next Part: 656362.. *Qty: 1 R.H. LATERAL DASHBOARD MOULDING -Valid for RHD Unavailable
Location: 22 Prev | Next Part: 654667.. *Qty: 1 R.H. LINING -Not for RHD Unavailable
Location: 22 Prev | Next Part: 656364.. *Qty: 1 R.H. LINING -Valid for RHD Unavailable
Location: 22 Prev | Next Part: 654302.. *Qty: 1 L.H. LATERAL DASHBOARD MOULDING -Not for RHD Unavailable
Location: 23 Prev | Next Part: 64712800 *Qty: 2 PLATE $1.90
Location: 24 Prev | Next Part: 15914770 *Qty: 4 SCREW $0.90
Location: 25 Prev | Next Part: 65471900 *Qty: 4 CLIP $17.39
Location: 26 Prev | Next Part: 15914770 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 63203400 *Qty: 4 GASKET RETAIN $11.99
Location: 28 Prev | Next Part: 65414500 *Qty: 2 GASKET Unavailable
Location: 29 Prev | Next Part: 14188181 *Qty: 2 RETAINER $0.90
Location: 30 Prev | Next Part: 65442400 *Qty: 1 R.H. SIDE BRACKET $25.12
Location: 30 Prev | Next Part: 65442500 *Qty: 1 L.H. SIDE BRACKET $25.12
Location: 31 Prev | Next Part: 10902124 *Qty: 4 SCREW $0.90
Location: 32 Prev | Next Part: 12648978 *Qty: 4 WASHER $0.90
Location: 33 Prev | Next Part: 65631900 *Qty: 1 BRACKET FOR DASHBOARD FIXING -Valid for RHD $156.97
Location: 33 Prev | Next Part: 65418500 *Qty: 1 BRACKET FOR DASHBOARD FIXING -Not for RHD $165.03
Location: 34 Prev | Next Part: 65442200 *Qty: 1 R.H. BRACKET $27.69
Location: 34 Prev | Next Part: 65442300 *Qty: 1 L.H. BRACKET $27.69
Location: 35 Prev | Next Part: 65632100 *Qty: 1 DIFFUSER FIXING BRACKET -Valid for RHD $120.13
Location: 35 Prev | Next Part: 65410700 *Qty: 1 DIFFUSER FIXING BRACKET -Not for RHD $104.01
Location: 36 Prev | Next Part: 15901501 *Qty: 6 SCREW $0.90
Location: 37 Prev | Next Part: 12639901 *Qty: 6 WASHER $0.90
Location: 38 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 39 Prev | Next Part: 12644477 *Qty: 2 WASHER $0.90
Location: 40 Prev | Next Part: 65441800 *Qty: 1 REAR BRACKET -Not for RHD $209.49
Location: 40 Prev | Next Part: 65635600 *Qty: 1 REAR BRACKET -Valid for RHD $160.13
Location: 41 Prev | Next Part: 10902124 *Qty: 5 SCREW $0.90
Location: 42 Prev | Next Part: 12644477 *Qty: 5 WASHER $0.90
Location: 43 Prev | Next Part: 65279900 *Qty: 1 CLIP $16.41
Location: 44 Prev | Next Part: 65443600 *Qty: 1 R.H. BRACKET $29.04
Location: 44 Prev | Next Part: 65443700 *Qty: 1 L.H. BRACKET $29.04
Location: 45 Prev | Next Part: 13290077 *Qty: 2 SCREW $8.71
Location: 46 Prev | Next Part: 65441400 *Qty: 1 GLOVE BOX MOULDING -Not for RHD $96.65
Location: 46 Prev | Next Part: 65634900 *Qty: 1 GLOVE BOX MOULDING -Valid for RHD $128.48
Location: 47 Prev | Next Part: 15689675 *Qty: 2 SCREW $0.90
Location: 48 Prev | Next Part: 65847700 *Qty: 1 GLOVE BOX STABILUS $130.03
Location: 49 Prev | Next Part: 61539800 *Qty: 1 MAGNETIC SWITCH Unavailable
Location: 50 Prev | Next Part: 65258900 *Qty: 1 STRIKER $47.28
Location: 51 Prev | Next Part: 63765300 *Qty: 1 PLATE $4.11
Location: 52 Prev | Next Part: 10725017 *Qty: 2 NUT $0.90
Location: 53 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 54 Prev | Next Part: 65686200 *Qty: 2 SCREW $9.87
Location: 55 Prev | Next Part: 65686300 *Qty: 2 WASHER $2.38
Location: 56 Prev | Next Part: 13273911 *Qty: 2 SCREW $0.90
Location: 57 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 58 Prev | Next Part: 65686300 *Qty: 2 WASHER $2.38
Location: 59 Prev | Next Part: 65678500 *Qty: 1 TIE ROD -Not for RHD $125.37
Location: 59 Prev | Next Part: 65636700 *Qty: 1 TIE ROD -Valid for RHD $50.82
Location: 60 Prev | Next Part: 63769000 *Qty: 1 FORK $5.59
Location: 61 Prev | Next Part: 65575300 *Qty: 1 BRACKET -Not for RHD $62.70
Location: 61 Prev | Next Part: 65631100 *Qty: 1 BRACKET -Valid for RHD $31.92
Location: 62 Prev | Next Part: 15688170 *Qty: 2 SCREW $0.90
Location: 63 Prev | Next Part: 64460500 *Qty: 5 SCREW $1.29
Location: 64 Prev | Next Part: 13274077 *Qty: 3 SCREW $0.90
Location: 65 Prev | Next Part: 12638177 *Qty: 3 WASHER Superseded
Location: 66 Prev | Next Part: 65634600 *Qty: 1 LID HINGE $134.76
Location: 67 Prev | Next Part: 13273911 *Qty: 7 SCREW $0.90
Location: 68 Prev | Next Part: 12637824 *Qty: 7 WASHER $0.90
Location: 69 Prev | Next Part: 65677400 *Qty: 1 STOPPER FOR GLOVE BOX $68.40
Location: 70 Prev | Next Part: 13273911 *Qty: 2 SCREW $0.90
Location: 71 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 72 Prev | Next Part: 65361300 *Qty: 1 PIN $11.18
Location: 73 Prev | Next Part: 65564400 *Qty: 1 BRACKET FOR AIR-BAG CASE -Not for RHD $32.56
Location: 73 Prev | Next Part: 65633600 *Qty: 1 BRACKET FOR AIR-BAG CASE -Valid for RHD $32.56
Location: 74 Prev | Next Part: 10902124 *Qty: 2 SCREW $0.90
Location: 75 Prev | Next Part: 12644477 *Qty: 2 WASHER $0.90
Location: 76 Prev | Next Part: 65564200 *Qty: 1 AIR-BAG CASE -Not for RHD $125.69
Location: 76 Prev | Next Part: 65633000 *Qty: 1 AIR-BAG CASE -Valid for RHD $98.30
Location: 77 Prev | Next Part: 13273911 *Qty: 5 SCREW $0.90
Location: 78 Prev | Next Part: 12637824 *Qty: 5 WASHER $0.90
Location: 79 Prev | Next Part: 65450000 *Qty: 2 BRACKET $33.53
Location: 80 Prev | Next Part: 15901501 *Qty: 6 SCREW $0.90
Location: 81 Prev | Next Part: 12639901 *Qty: 6 WASHER $0.90
Location: 82 Prev | Next Part: 65631400 *Qty: 1 DASHBOARD FIXING BRACKET -Valid for RHD $109.50
Location: 82 Prev | Next Part: 65473900 *Qty: 1 DASHBOARD FIXING BRACKET -Not for RHD $136.52
Location: 83 Prev | Next Part: 13273911 *Qty: 4 SCREW $0.90
Location: 84 Prev | Next Part: 12637824 *Qty: 4 WASHER $0.90
Location: 85 Prev | Next Part: 14641491 *Qty: 2 RIVET $0.90
Location: 86 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 87 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 88 Prev | Next Part: 14202580 *Qty: 2 BLOCK $0.90
Location: 89 Prev | Next Part: 65815700 *Qty: 2 PLUG Unavailable
Location: 90 Prev | Next Part: 65643100 *Qty: 1 CUSTOMER PLATE -Optional $545.28
Location: 91 Prev | Next Part: 16101711 *Qty: 2 NUT -Optional $0.90
Location: 92 Prev | Next Part: 20159109 *Qty: 2 WASHER -Optional $0.90

* Quantity shown indicates the number of pieces used in the diagram.
