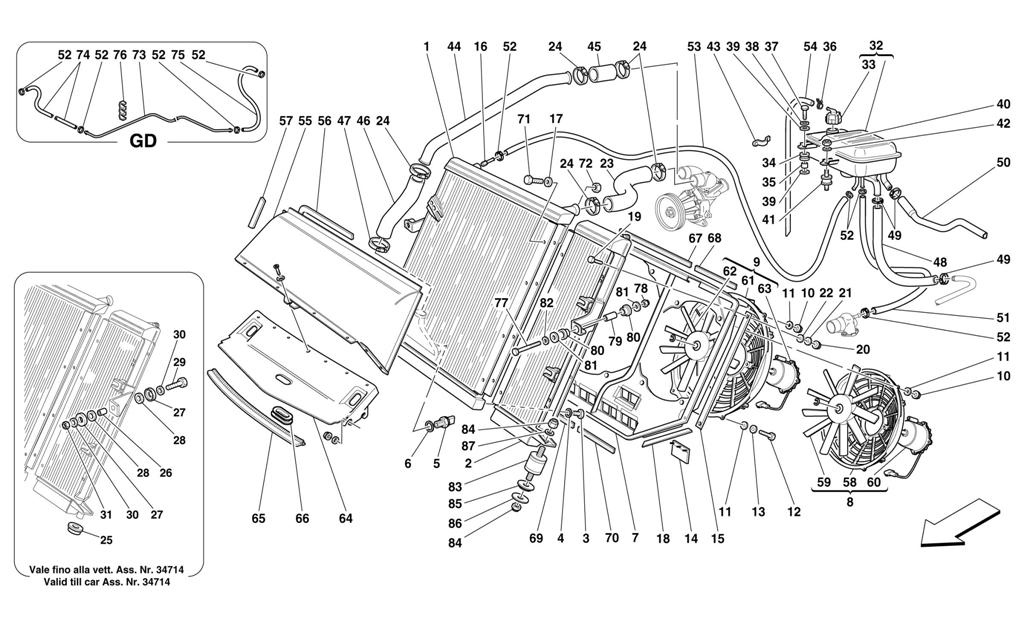

COOLING SYSTEM - RADIATOR AND NOURICE

Go to Split View

COOLING SYSTEM - RADIATOR AND NOURICE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 180895 *Qty: 1 WATER RADIATOR -Valid from car Ass. Nr. 34715 $6,027.55
Location: 1 Prev | Next Part: 165599 *Qty: 1 WATER RADIATOR -Valid till car Ass. Nr. 34714 $4,955.52
Location: 2 Prev | Next Part: 164616 *Qty: 1 OIL RADIATOR -Valid till car Ass. Nr. 34714 $2,883.09
Location: 2 Prev | Next Part: 180923 *Qty: 1 OIL RADIATOR -Valid from car Ass. Nr. 34715 $1,430.91
Location: 3 Prev | Next Part: 170828 *Qty: 1 THREADED PLUG $64.66
Location: 4 Prev | Next Part: 100317 *Qty: 1 O.R. GASKET $1.28
Location: 5 Prev | Next Part: 158655 *Qty: 1 TEMPERATURE SWITCH $26.16
Location: 6 Prev | Next Part: 101508 *Qty: 1 GASKET $1.28
Location: 7 Prev | Next Part: 154533 *Qty: 1 HOOD FOR ELECTROFANS $595.40
Location: 8 Prev | Next Part: 155063 *Qty: 1 L.H. COMPLETE ELECTROFAN $327.41
Location: 9 Prev | Next Part: 155064 *Qty: 1 R.H. COMPLETE ELECTROFAN $327.41
Location: 10 Prev | Next Part: 14058311 *Qty: 6 NUT $0.90
Location: 11 Prev | Next Part: 12637824 *Qty: 8 WASHER $0.90
Location: 12 Prev | Next Part: 10977824 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 10571470 *Qty: 2 WASHER $0.90
Location: 14 Prev | Next Part: 155441 *Qty: 5 STRAP $1.90
Location: 15 Prev | Next Part: 155487 *Qty: 1 L.H. VERTICAL GASKET $2.51
Location: 15 Prev | Next Part: 155488 *Qty: 1 R.H. VERTICAL GASKET $2.97
Location: 16 Prev | Next Part: 157160 *Qty: 1 UNION Call
Location: 17 Prev | Next Part: 13577701 *Qty: 8 WASHER $0.90
Location: 18 Prev | Next Part: 155491 *Qty: 1 L.H. GASKET $2.22
Location: 18 Prev | Next Part: 165482 *Qty: 1 R.H. GASKET $1.16
Location: 19 Prev | Next Part: 155239 *Qty: 4 SCREW $12.39
Location: 20 Prev | Next Part: 15896214 *Qty: 4 NUT $0.90
Location: 21 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 22 Prev | Next Part: 14496424 *Qty: 4 WASHER Superseded
Location: 23 Prev | Next Part: 179037 *Qty: 1 DELIVERY WATER RUBBER PIPE $211.77
Location: 24 Prev | Next Part: 13000690 *Qty: 5 SCREW COLLAR $0.90
Location: 25 Prev | Next Part: 138926 *Qty: 2 RUBBER FOR PIN -Valid till car Ass. Nr. 34714 $4.95
Location: 26 Prev | Next Part: 155395 *Qty: 2 SPACER -Valid till car Ass. Nr. 34714 $1.37
Location: 27 Prev | Next Part: 107979 *Qty: 4 CUP -Valid till car Ass. Nr. 34714 $0.90
Location: 28 Prev | Next Part: 107978 *Qty: 4 PAD -Valid till car Ass. Nr. 34714 $1.28
Location: 29 Prev | Next Part: 16044034 *Qty: 2 SCREW -Valid till car Ass. Nr. 34714 $0.90
Location: 30 Prev | Next Part: 116413 *Qty: 6 WASHER -Valid till car Ass. Nr. 34714 $1.16
Location: 31 Prev | Next Part: 14058511 *Qty: 2 NUT -Valid till car Ass. Nr. 34714 $0.90
Location: 32 Prev | Next Part: 171327 *Qty: 1 COMPLETE WATER CANISTER -Valid for RHD $338.89
Location: 32 Prev | Next Part: 171974 *Qty: 1 COMPLETE WATER CANISTER -Not for RHD $559.68
Location: 33 Prev | Next Part: 145030 *Qty: 1 TANK PLUG $49.75
Location: 34 Prev | Next Part: 103549 *Qty: 2 RUBBER RING $1.37
Location: 35 Prev | Next Part: 149707 *Qty: 2 SPACER $1.23
Location: 36 Prev | Next Part: 13423171 *Qty: 1 ELASTIC COLLAR $0.90
Location: 37 Prev | Next Part: 10902624 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 39 Prev | Next Part: 12643724 *Qty: 2 WASHER Superseded
Location: 40 Prev | Next Part: 102948 *Qty: 1 NUT $0.90
Location: 41 Prev | Next Part: 102947 *Qty: 1 PAD $15.94
Location: 42 Prev | Next Part: 12643724 *Qty: 1 WASHER Superseded
Location: 43 Prev | Next Part: 156083 *Qty: 1 FIXING CLIP $0.90
Location: 44 Prev | Next Part: 155605 *Qty: 1 WATER RETURN PIPE $87.52
Location: 45 Prev | Next Part: 178722 *Qty: 1 SLEEVE -Valid after stock exhaustion of 155607 $56.79
Location: 46 Prev | Next Part: 175643 *Qty: 1 WATER RETURN RUBBER PIPE -Valid after stock exhaustion of 155606 $172.52
Location: 47 Prev | Next Part: 13000690 *Qty: 1 SCREW COLLAR $0.90
Location: 48 Prev | Next Part: 155616 *Qty: 1 RUBBER PIPE FROM EXPANSION TANK TO ENGINE $48.24
Location: 49 Prev | Next Part: 13000490 *Qty: 3 SCREW COLLAR Superseded
Location: 50 Prev | Next Part: 65618300 *Qty: 1 RETURN TUBE FROM VALVE TO NOURICE -Valid for RHD $156.42
Location: 50 Prev | Next Part: 65674500 *Qty: 1 RETURN TUBE FROM VALVE TO NOURICE -Not for RHD Call
Location: 51 Prev | Next Part: 155618 *Qty: 1 VENT PIPE FROM HEADS TO EXPANSION TANK -Not for RHD $40.51
Location: 51 Prev | Next Part: 157744 *Qty: 1 VENT PIPE FROM HEADS TO EXPANSION TANK -Valid for RHD Call
Location: 52 Prev | Next Part: 13000190 *Qty: 4 SCREW COLLAR -For RHD q.ty 6 $0.90
Location: 53 Prev | Next Part: 155619 *Qty: 1 VENT PIPE FROM RADIATOR TO EXPANSION TANK -Not for RHD $40.25
Location: 54 Prev | Next Part: 156082 *Qty: 1 VENT PIPE $44.33
Location: 55 Prev | Next Part: 63132400 *Qty: 1 AIR CONVEYOR $623.11
Location: 56 Prev | Next Part: 65570400 *Qty: 1 GASKET $1.86
Location: 57 Prev | Next Part: 62799900 *Qty: 2 GASKET $6.28
Location: 58 Prev | Next Part: 152912 *Qty: 1 L.H. AIR INLET $73.66
Location: 59 Prev | Next Part: 155063 *Qty: 1 BLOWER $327.41
Location: 60 Prev | Next Part: 153169 *Qty: 1 MOTOR Call
Location: 61 Prev | Next Part: 152920 *Qty: 1 R.H. AIR INLET $126.52
Location: 62 Prev | Next Part: 153045 *Qty: 1 BLOWER $33.41
Location: 63 Prev | Next Part: 153174 *Qty: 1 MOTOR Call
Location: 64 Prev | Next Part: 65467300 *Qty: 1 CONVEYOR UPPER PANEL $236.28
Location: 65 Prev | Next Part: 65248500 *Qty: 1 FRONT GASKET Call
Location: 66 Prev | Next Part: 62797700 *Qty: 1 PLUG $3.05
Location: 67 Prev | Next Part: 165480 *Qty: 1 R.H. UPPER GASKET $1.19
Location: 68 Prev | Next Part: 165476 *Qty: 1 L.H. UPPER GASKET $0.90
Location: 69 Prev | Next Part: 165481 *Qty: 1 R.H. LOWER GASKET $0.90
Location: 70 Prev | Next Part: 165479 *Qty: 1 L.H. LOWER GASKET $0.90
Location: 71 Prev | Next Part: 15201024 *Qty: 4 SCREW $0.90
Location: 72 Prev | Next Part: 14058311 *Qty: 4 NUT $0.90
Location: 73 Prev | Next Part: 179225 *Qty: 1 RIGID PIPE FROM RADIATOR TO NOURICE -Valid for RHD $67.29
Location: 74 Prev | Next Part: 155639 *Qty: 1 RUBBER HOSE -Valid for RHD Call
Location: 75 Prev | Next Part: 176090 *Qty: 1 RUBBER HOSE -Valid for RHD Call
Location: 76 Prev | Next Part: 141546 *Qty: 2 FLEXIBLE CLIP -Valid for RHD $0.90
Location: 77 Prev | Next Part: 16044224 *Qty: 4 SCREW -Valid from car Ass. Nr. 34715 $0.90
Location: 78 Prev | Next Part: 104030 *Qty: 2 NUT -Valid from car Ass. Nr. 34715 $0.90
Location: 79 Prev | Next Part: 180853 *Qty: 2 SPACER -Valid from car Ass. Nr. 34715 $3.27
Location: 80 Prev | Next Part: 180852 *Qty: 4 PAD -Valid from car Ass. Nr. 34715 $6.04
Location: 81 Prev | Next Part: 116413 *Qty: 4 WASHER -Valid from car Ass. Nr. 34715 $1.16
Location: 82 Prev | Next Part: 12646724 *Qty: 2 WASHER -Valid from car Ass. Nr. 34715 $0.90
Location: 83 Prev | Next Part: 157650 *Qty: 2 PAD -Valid from car Ass. Nr. 34715 $13.03
Location: 84 Prev | Next Part: 104030 *Qty: 4 NUT -Valid from car Ass. Nr. 34715 $0.90
Location: 85 Prev | Next Part: 182734 *Qty: 2 WASHER -Valid from car Ass. Nr. 34715 $3.27
Location: 86 Prev | Next Part: 180894 *Qty: 2 WASHER -Valid from car Ass. Nr. 34715 $1.96
Location: 87 Prev | Next Part: 12646724 *Qty: 2 WASHER -Valid from car Ass. Nr. 34715 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
