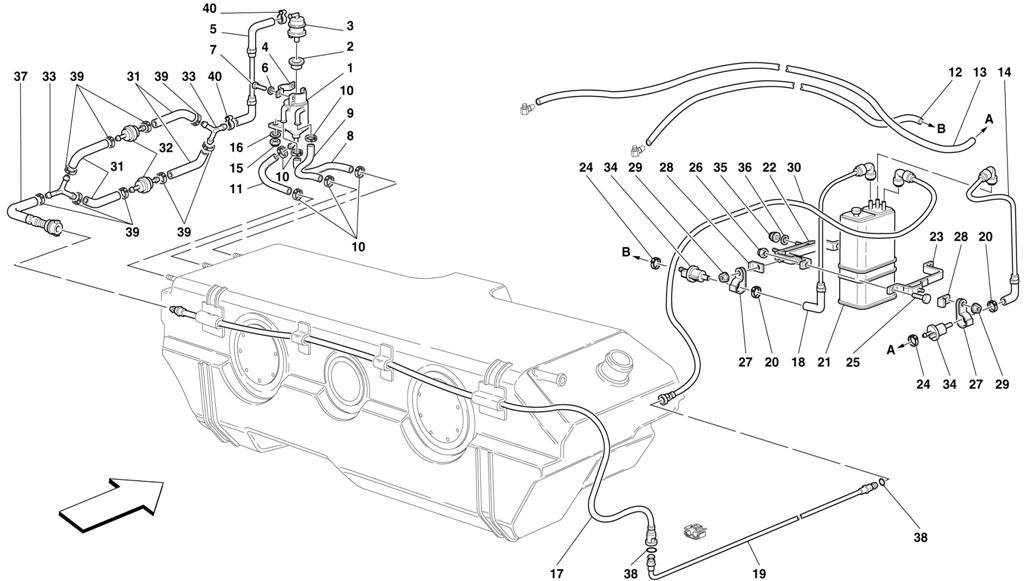

ANTIEVAPORATION DEVICE -VALID FOR USA, CDN AND AUS-NOT FOR USA M.Y. 2000 AND CDN M.Y. 2000-

Location	Part #	Quantity*	Description	Price	Add To Cart
1	155407	1	DISAREATOR	$327.82
2	155313	1	SEAL RING	$46.79
3	124193	1	ANTI FLOWING BACK VALVE		Unavailable
4	155405	1	BRACKET	$31.95
5	174945	1	PIPE FROM ANTI-FLOWING BACK VALVE TO VENTILATION VALVE	$104.20
6	14496324	2	WASHER	$4.41
7	13273911	2	SCREW		Unavailable
8	116764	1	FRONT PIPE FROM FUEL TANK TO DISAERATOR	$53.47
9	116767	1	CENTRAL PIPE FROM FUEL TANK TO DISAERATOR	$51.74
10	13000190	6	SCREW COLLAR	$0.90
11	114880	1	REAR PIPE FROM FUEL TANK TO DISAERATOR	$51.74
12	114888	1	PIPE FROM R.H. UNION TO ANTIEVAPORATION VALVE	$207.04
13	116774	1	PIPE FROM L.H. UNION TO ANTIEVAPORATION VALVE		Unavailable
14	174786	1	PIPE FROM VAPOR FILTER TO OUTER VALVE	$173.63
15	102948	2	NUT		Superseded
16	14496424	2	WASHER		Superseded
17	174947	1	PIPE FROM VALVE TO INTERMEDIATE PIPE	$95.40
18	174787	1	PIPE FROM VAPOR FILTER TO REAR VALVE	$163.86
19	155763	1	INTERMEDIATE PIPE	$84.53
20	13000190	2	SCREW COLLAR	$0.90
21	174782	1	FUEL VAPOR FILTER	$600.86
22	156452	1	FRAME FASTENING FILTER BRACKET	$36.22
23	138496	1	COMPLETE BRACKET	$42.61
24	157934	2	SCREW COLLAR		Superseded
25	10902124	2	SCREW	$0.90
26	102948	2	NUT		Superseded
27	164437	2	FIXING BRACKET	$4.71
28	137716	2	PLATE	$27.38
29	15896214	2	NUT		Unavailable
30	179176	1	PIPE CONNECTING INTERMEDIATE PIPE TO VAPOR FILTER	$148.37
31	116761	4	RUBBER HOSE	$117.31
32	174594	2	TANK VENTILATION VALVE	$14.47
33	105495	2	UNION	$3.19
34	162412	2	ANTI-EVAPORATION VALVE	$148.37
35	102948	2	NUT		Superseded
36	14499324	2	WASHER		Superseded
37	175610	1	UNION WITH SLEEVE	$62.10
38	133956	4	O.R. GASKET	$1.26
39	13434670	9	COLLAR		Unavailable
40	13434670	2	COLLAR		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
