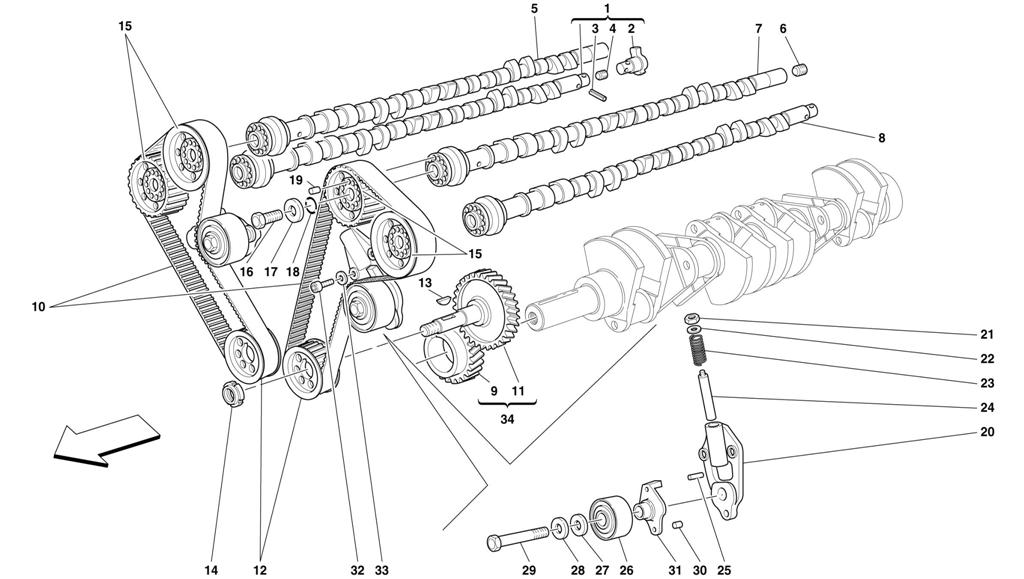

TIMING - CONTROLS

Location Part # Quantity* Description Price Add To Cart
1 151516 1 COMPLETE R.H. EXHAUST CAM SHAFT -Valid for MOTRONIC 2.7 $6,022.69
1 171451 1 COMPLETE R.H. EXHAUST CAM SHAFT -Valid for MOTRONIC 5.2 -Valid from engine Nr. 42241 $1,963.19
1 167583 1 COMPLETE R.H. EXHAUST CAM SHAFT -Valid for MOTRONIC 5.2 -Valid till engine Nr. 42240 Unavailable
2 171450 1 COUPLING ON THE CAM SHAFT -Valid for MOTRONIC 5.2 -Valid from engine Nr. 42241 $339.88
2 165790 1 COUPLING ON THE CAM SHAFT -Valid for MOTRONIC 5.2 -Valid till engine Nr. 42240 $133.70
2 151194 2 COUPLING ON THE CAM SHAFT -Valid for MOTRONIC 2.7 Unavailable
3 149859 4 DOWEL BOLT $3.02
4 10158501 2 PLUG -Valid for MOTRONIC 5.2 -Valid till engine Nr. 42240 $1.68
5 155147 1 COMPLETE R.H. INDUCTION DISTRIBUTION SHAFT $1,127.81
6 10269550 2 THREADED PLUG Unavailable
7 155149 1 COMPLETE L.H. INDUCTION DISTRIBUTION SHAFT $1,504.21
8 163231 1 COMPLETE L.H. EXHAUST CAM SHAFT -Valid for MOTRONIC 5.2 $1,296.87
8 151514 1 COMPLETE L.H. EXHAUST CAM SHAFT -Valid for MOTRONIC 2.7 $6,022.69
9 168702 1 DRIVING GEAR -Valid from engine Nr. 42088 -Not as spare part replaced by 70000876 $250.68
9 154298 1 DRIVING GEAR -Valid till engine Nr. 42087 -Not as spare part replaced by 70000876 Unavailable
10 187744 2 TIMING CONTROL BELT $178.62
11 70000876 2 DRIVEN GEAR -Valid till engine Nr. 42087 -Not as spare part replaced by 70000876 $5,891.26
11 168701 2 DRIVEN GEAR -Valid from engine Nr. 42088 -Not as spare part replaced by 70000876 $462.82
12 149928 2 TIMING GEAR $293.31
13 10206320 2 DISC KEY $2.11
14 104919 2 RING NUT $7.45
15 159382 4 DRIVEN GEAR -Valid from engine Nr. 36010 Unavailable
16 146540 4 SCREW $31.36
17 114802 4 WASHER $11.35
18 114808 4 O.R. GASKET $5.93
19 114803 4 CENTERING DOWEL $26.11
20 149346 2 BELT TIGHTENER BODY $500.37
21 102948 2 NUT Superseded
22 121558 2 WASHER Unavailable
23 121249 2 SPRING FOR BELT $17.07
24 121047 2 PIN $11.23
25 13933570 2 PIN Unavailable
26 171057 2 PULLEY -Valid from Ass. Nr. 28614 Superseded
26 70000933 2 PULLEY -Valid till Ass. Nr. 28613 Unavailable
27 111460 2 SPACER Unavailable
28 102824 2 WASHER $19.04
29 149461 2 SCREW Unavailable
30 125717 2 CENTERING DOWEL $4.41
31 171060 2 PLATE -Valid from Ass. Nr. 28614 $98.77
31 121045 2 PLATE -Valid till Ass. Nr. 28613 Unavailable
32 14306424 4 SCREW Unavailable
33 11193874 4 WASHER $0.90
34 70000876 1 PINION KIT GEAR -Substitutes 154297, 168702, 154298 and 168701 $5,891.26

* Quantity shown indicates the number of pieces used in the diagram.
