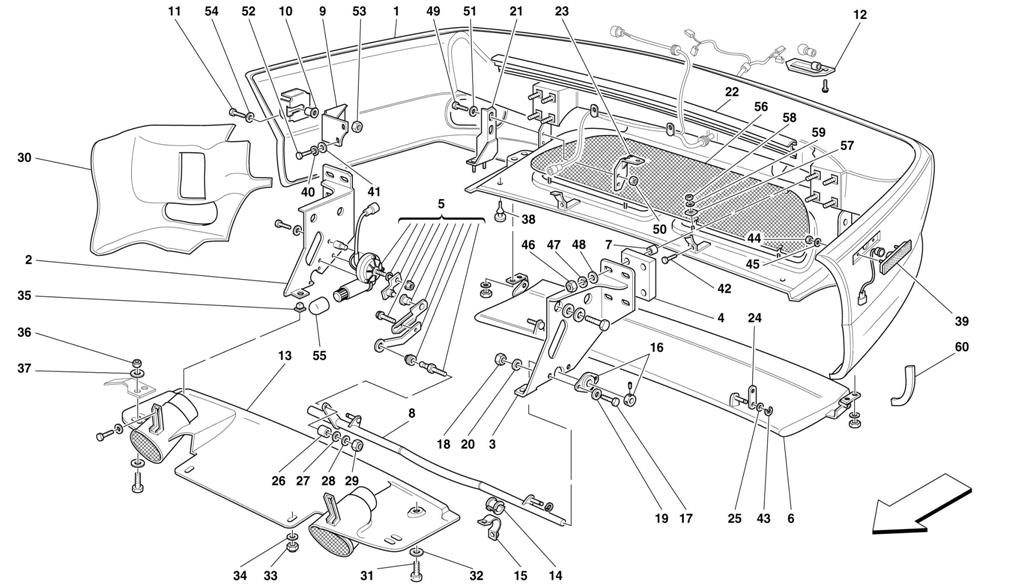

REAR BUMPER AND MOVABLE SPOILER -VALID FOR 456 GTA

Location Part # Quantity* Description Price Add To Cart
1 64089110 1 COMPLETE REAR BUMPER -Not for USA and CDN $5,719.46
1 65055610 1 COMPLETE REAR BUMPER -Valid for CDN $6,268.23
1 65293710 1 REAR BUMPER -Without stabilizer -Valid for CDN $6,268.23
1 64638110 1 REAR BUMPER -Without stabilizer- -Not for USA and CDN $2,901.30
1 64638210 1 REAR BUMPER -Without stabilizer -Valid for USA $4,187.87
1 64699210 1 COMPLETE REAR BUMPER -Valid for USA $5,372.76
2 64723500 1 R.H. BRACKET FOR BUMPER FIXING $293.31
3 64723600 1 L.H. BRACKET FOR BUMPER FIXING $258.80
4 63214100 2 BUMPER PAD $53.47
5 174159 1 MOTOR FOR STABILIZER Unavailable
6 63737200 1 MOBILE STABILIZER $1,725.48
7 63739200 8 SPACER FOR WICK $11.41
8 64723700 1 TRASMISSION PIPE $55.22
9 63739600 1 R.H. BRACKET $15.69
9 63739700 1 L.H. BRACKET $15.69
10 63739300 2 SPACER FOR BRACKET $3.02
11 62794500 2 SCREW Unavailable
12 175204 2 NUMBER PLATE LIGHT Unavailable
13 64890800 1 CENTRAL SHIELD $1,204.78
14 63857700 4 SEMI-BUSHING $29.31
15 63857500 2 BRACKET FOR SHAFT FIXING Unavailable
16 63738000 2 SUPPORT WHIT FLANGE $108.79
17 64231800 4 SCREW Unavailable
18 16102314 4 NUT Unavailable
19 10519624 4 WASHER Unavailable
20 10571779 4 WASHER Unavailable
21 64059900 1 R.H. SUPPORT BRACKET $276.06
21 64060000 1 L.H. SUPPORT BRACKET $155.76
22 65469000 1 SUPPORT COMPLETE GASKET $34.08
23 63870600 1 R.H. BRACKET $22.41
23 63870700 1 L.H. BRACKET $22.41
24 63737800 2 PLATE Unavailable
25 63741000 4 BUSHING Unavailable
26 63186100 1 SPACER $1.66
27 12608574 1 WASHER Unavailable
28 12642024 1 WASHER Unavailable
29 16100814 1 NUT Unavailable
30 64831100 1 HEAT SHIELDS SERIES $1,552.93
31 10902124 2 SCREW $0.90
32 14496424 2 SPACER WASHER Superseded
33 14058311 4 NUT Unavailable
34 12643778 10 WASHER Unavailable
35 14202782 2 BLOCK Unavailable
36 113647 4 NUT Unavailable
37 12638124 4 WASHER $0.90
38 62794800 2 RUBBER $2.31
39 140594 2 REAR SIDE-MARKER LIGHT -Valid for USA and CDN $40.63
40 127494 4 WASHER $0.90
41 12640624 4 WASHER $0.90
42 64231400 2 SCREW Unavailable
43 11087776 4 FLEXIBLE RING Unavailable
44 169180 4 NUT Unavailable
45 12638124 4 WASHER $0.90
46 133988 8 NUT Unavailable
47 127497 8 WASHER $0.90
48 12626224 8 WASHER Unavailable
49 16043021 4 SCREW Unavailable
50 16100814 4 NUT Unavailable
51 12642777 4 WASHER Unavailable
52 10902224 4 SCREW $0.90
53 133988 2 NUT Unavailable
54 12648504 2 WASHER Unavailable
55 64064700 1 PROTECTION BOOT $22.41
56 64086400 1 AIR INTAKE GRILLE $422.02
57 64086600 14 PLATE $4.04
58 62790300 14 NUT $0.90
59 62948400 14 WASHER Unavailable
60 64498600 1 L.H. PROTECTION $9.05
60 64498700 1 R.H. PROTECTION $9.05

* Quantity shown indicates the number of pieces used in the diagram.
