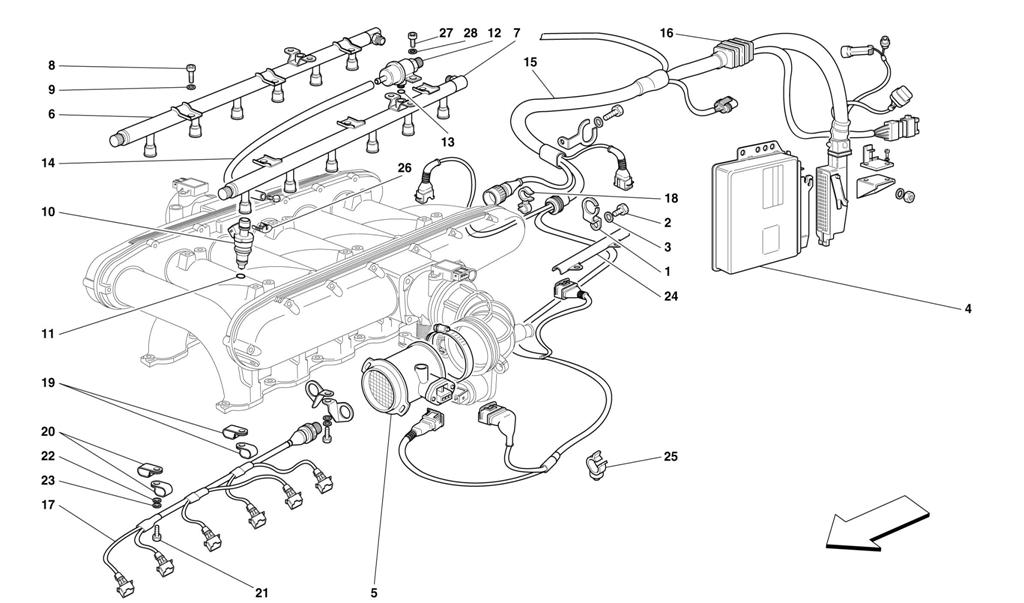

INJECTION DEVICE

Go to Split View

INJECTION DEVICE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155327 *Qty: 2 BRACKET $7.23
Location: 2 Prev | Next Part: 16043124 *Qty: 2 SCREW $0.90
Location: 3 Prev | Next Part: 127496 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: 170133 *Qty: 2 ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2 -Not for 456 GTA -Valid for not ca Unavailable
Location: 4 Prev | Next Part: 170134 *Qty: 2 ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2-Valid for 456 GTA -Valid for cataly $3,886.78
Location: 4 Prev | Next Part: 170135 *Qty: 2 ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2 -Valid for 456 GTA -Valid for USA, $2,206.48
Location: 4 Prev | Next Part: 164922 *Qty: 2 ELECTRONIC CONTROL STATION -Valid for MOTRONIC 2.7 -Not for 456 GTA $2,509.34
Location: 4 Prev | Next Part: 171969 *Qty: 2 ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2 -Valid for 456 GTA -Valid for not Unavailable
Location: 4 Prev | Next Part: 168892 *Qty: 2 ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2-Not for 456 GTA -Valid for catalyze $3,886.78
Location: 4 Prev | Next Part: 168893 *Qty: 2 ELECTRONIC CONTROL STATION PROGRAMMED -Valid for MOTRONIC 5.2 -Not for 456 GTA -Valid for USA, C $3,919.99
Location: 5 Prev | Next Part: 162530 *Qty: 2 AIR INDICATOR -Valid for MOTRONIC 5.2 $1,103.25
Location: 5 Prev | Next Part: 154916 *Qty: 2 AIR INDICATOR -Valid for MOTRONIC 2.7 Unavailable
Location: 6 Prev | Next Part: 149374 *Qty: 1 R.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 2.7 -Valid from engine Nr. 35663 $2,014.62
Location: 6 Prev | Next Part: 171841 *Qty: 1 R.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2 -Valid till engine Nr. 43161 and till engine Unavailable
Location: 6 Prev | Next Part: 153747 *Qty: 1 R.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2 -Valid till engine Nr. 43160 -Substituted by Unavailable
Location: 6 Prev | Next Part: 173751 *Qty: 1 R.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2 -Valid till engine Nr. 47019 -Substitutes 15 $450.98
Location: 6 Prev | Next Part: 161019 *Qty: 1 R.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 2.7 -Valid till engine Nr. 35662 $3,627.76
Location: 7 Prev | Next Part: 161020 *Qty: 1 L.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 2.7 -Valid till engine Nr. 35662 $3,627.76
Location: 7 Prev | Next Part: 149375 *Qty: 1 L.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 2.7 -Valid from engine Nr. 35663 $2,014.62
Location: 7 Prev | Next Part: 171842 *Qty: 1 L.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2 -Valid from engine Nr. 43161 and till engine Unavailable
Location: 7 Prev | Next Part: 153748 *Qty: 1 L.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2 -Valid till engine Nr. 43160 -Substituted by Unavailable
Location: 7 Prev | Next Part: 173745 *Qty: 1 L.H. INJECTORS COMPLETE TUBE -Valid for MOTRONIC 5.2 -Valid till engine Nr. 47019 -Substitutes 15 $1,909.61
Location: 8 Prev | Next Part: 14305724 *Qty: 6 SCREW $0.90
Location: 9 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 10 Prev | Next Part: 162613 *Qty: 12 ELECTRO-INJECTOR -Valid for MOTRONIC 5.2 Unavailable
Location: 10 Prev | Next Part: 143891 *Qty: 12 ELECTRO-INJECTOR -Valid for MOTRONIC 2.7 $452.17
Location: 11 Prev | Next Part: 133902 *Qty: 12 O.R. GASKET $6.26
Location: 12 Prev | Next Part: 167321 *Qty: 2 PRESSURE REGULATOR Unavailable
Location: 13 Prev | Next Part: 152211 *Qty: 2 SEAL RING Unavailable
Location: 14 Prev | Next Part: 118901 *Qty: 2 RUBBER HOSE Unavailable
Location: 15 Prev | Next Part: 152469 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7 -Not for USA, CDN, CH and RHD $1,157.85
Location: 15 Prev | Next Part: 152470 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7 $1,046.95
Location: 15 Prev | Next Part: 167381 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7 -Not for USA, CDN, CH and RHD $1,076.97
Location: 15 Prev | Next Part: 167382 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7 -Valid for USA, CDN and CH $1,849.82
Location: 15 Prev | Next Part: 172761 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2-Valid for RHD -Valid from engine $1,330.26
Location: 15 Prev | Next Part: 167383 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7 -Valid for RHD $1,292.21
Location: 15 Prev | Next Part: 172762 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2 456 GTA -Valid for RHD $1,208.80
Location: 15 Prev | Next Part: 172764 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2 456 GT -Valid for RHD $1,237.70
Location: 15 Prev | Next Part: 168907 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2 456 GTA $2,735.06
Location: 15 Prev | Next Part: 156576 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7 -Valid for RHD $1,292.21
Location: 15 Prev | Next Part: 168908 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2 $2,735.06
Location: 15 Prev | Next Part: 156577 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7 $1,168.51
Location: 15 Prev | Next Part: 168943 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2-Valid for RHD -Valid till engine $1,322.41
Location: 15 Prev | Next Part: 158116 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7 $1,086.51
Location: 15 Prev | Next Part: 168944 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2 456 GTA -Valid for RHD $1,111.20
Location: 15 Prev | Next Part: 158117 *Qty: 1 CABLES FOR R.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 2.7 -Valid for USA, CDN and CH $1,111.19
Location: 15 Prev | Next Part: 169346 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2 456 GT $1,328.70
Location: 15 Prev | Next Part: 169347 *Qty: 1 CABLES FOR L.H. MAIN BEARINGS CONNECTION -Valid for MOTRONIC 5.2 456 GT -Valid for RHD $1,196.63
Location: 16 Prev | Next Part: 139465 *Qty: 2 BELLOWS FOR CABLE BUSHING $202.90
Location: 17 Prev | Next Part: 168529 *Qty: 2 INJECTORS CONNECTION CABLES -Valid after stock exhaustion of 154787 Unavailable
Location: 18 Prev | Next Part: 145545 *Qty: 2 SPRINGS Unavailable
Location: 19 Prev | Next Part: 10418801 *Qty: 2 FIXING BRACKET Unavailable
Location: 20 Prev | Next Part: 10418601 *Qty: 2 FIXING BRACKET $1.10
Location: 21 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 12639724 *Qty: 2 WASHER Unavailable
Location: 23 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 154772 *Qty: 2 BRACKET FOR CABLES FIXING $41.41
Location: 25 Prev | Next Part: 159740 *Qty: 1 CLIP Unavailable
Location: 26 Prev | Next Part: 144763 *Qty: 12 INJECTORS RETAINING CLIP $3.11
Location: 27 Prev | Next Part: 172763 *Qty: 4 SCREW Unavailable
Location: 28 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
