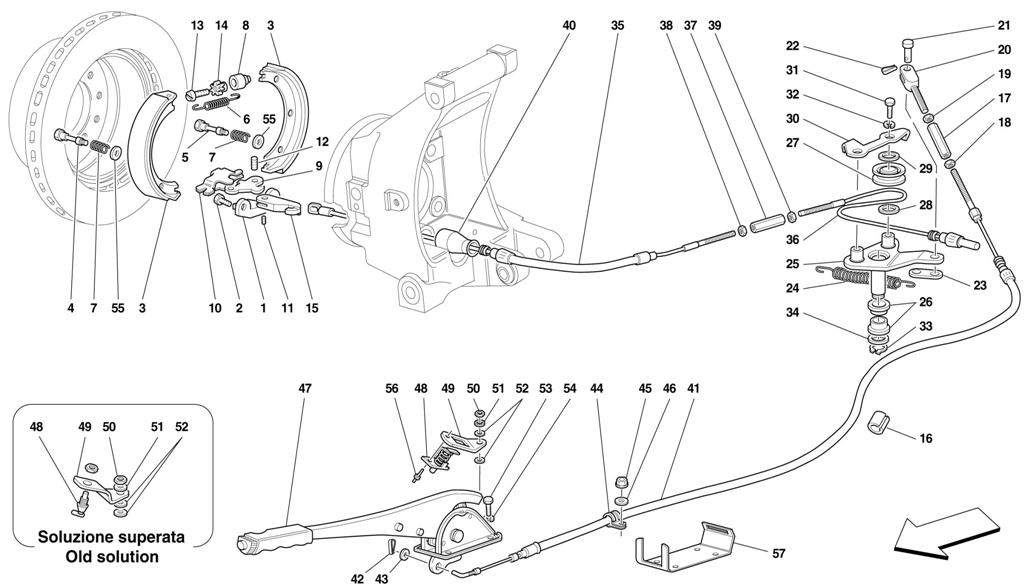

HAND-BRAKE CONTROL -VALID FOR 456 GT

Go to Split View

HAND-BRAKE CONTROL -VALID FOR 456 GT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 142861 *Qty: 2 SMALL BLOCK $238.61
Location: 2 Prev | Next Part: 142856 *Qty: 4 SCREW $5.25
Location: 3 Prev | Next Part: 170701 *Qty: 4 COMPLETE BRAKE SHOE -As an alternative $45.89
Location: 4 Prev | Next Part: 156915 *Qty: 2 SCREW $77.65
Location: 5 Prev | Next Part: 156916 *Qty: 2 SCREW $51.72
Location: 6 Prev | Next Part: 101276 *Qty: 4 SPRING $12.27
Location: 7 Prev | Next Part: 101277 *Qty: 4 SPRING $0.90
Location: 8 Prev | Next Part: 101279 *Qty: 2 SCREW SEAT $112.14
Location: 9 Prev | Next Part: 101280 *Qty: 2 INNER LEVER $25.98
Location: 10 Prev | Next Part: 101281 *Qty: 2 OUTER LEVER $6.12
Location: 11 Prev | Next Part: 101282 *Qty: 2 PIN $1.16
Location: 12 Prev | Next Part: 101283 *Qty: 2 PIN $3.24
Location: 13 Prev | Next Part: 101285 *Qty: 2 SCREW $7.02
Location: 14 Prev | Next Part: 101286 *Qty: 2 NUT $13.35
Location: 15 Prev | Next Part: 105270 *Qty: 2 FORK $45.64
Location: 16 Prev | Next Part: 152913 *Qty: 1 PIPE Call
Location: 17 Prev | Next Part: 152302 *Qty: 1 ADJUSTMENT SLEEVE $13.96
Location: 18 Prev | Next Part: 16102324 *Qty: 1 NUT $0.90
Location: 19 Prev | Next Part: 16102914 *Qty: 1 NUT $5.76
Location: 20 Prev | Next Part: 152301 *Qty: 1 FORK $29.41
Location: 21 Prev | Next Part: 10050814 *Qty: 1 PIN $2.93
Location: 22 Prev | Next Part: 10734201 *Qty: 1 SPLIT PIN Call
Location: 23 Prev | Next Part: 152303 *Qty: 1 SMALL PLATE $23.73
Location: 24 Prev | Next Part: 104895 *Qty: 1 SPRING $8.01
Location: 25 Prev | Next Part: 156122 *Qty: 1 LEVER -Valid for RHD- $90.81
Location: 25 Prev | Next Part: 152279 *Qty: 1 LEVER -Not for RHD- $90.81
Location: 26 Prev | Next Part: 152273 *Qty: 2 BUSHING $6.67
Location: 27 Prev | Next Part: 152274 *Qty: 2 PULLEY -Valid till stock exhaustion $24.12
Location: 27 Prev | Next Part: 175780 *Qty: 2 PULLEY -Valid after stock exhaustion of 152274 $10.80
Location: 28 Prev | Next Part: 152617 *Qty: 2 WASHER $0.90
Location: 29 Prev | Next Part: 109483 *Qty: 2 WASHER $1.93
Location: 30 Prev | Next Part: 158694 *Qty: 1 SMALL PLATE -Valid for RHD- $6.49
Location: 30 Prev | Next Part: 152299 *Qty: 1 SMALL PLATE -Not for RHD- $6.49
Location: 31 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 32 Prev | Next Part: 11193279 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 11066476 *Qty: 1 SEEGER RING $0.90
Location: 34 Prev | Next Part: 152300 *Qty: 1 WASHER $0.93
Location: 35 Prev | Next Part: 152297 *Qty: 1 R.H. REAR CABLE $32.23
Location: 36 Prev | Next Part: 152298 *Qty: 1 L. H. REAR CABLE $29.33
Location: 37 Prev | Next Part: 10091011 *Qty: 1 SLEEVE Superseded
Location: 38 Prev | Next Part: 10727311 *Qty: 1 NUT $1.81
Location: 39 Prev | Next Part: 10725914 *Qty: 1 NUT $0.90
Location: 40 Prev | Next Part: 143938 *Qty: 2 STOP LIMIT FOR HAND BRAKE SHEATH $72.64
Location: 41 Prev | Next Part: 154180 *Qty: 1 HAND-BRAKE CONTROL CABLE $35.15
Location: 42 Prev | Next Part: 10796440 *Qty: 1 SPLIT PIN $0.90
Location: 43 Prev | Next Part: 10519624 *Qty: 1 WASHER $0.90
Location: 44 Prev | Next Part: 10441290 *Qty: 3 BRACKET WITH SHEATH $0.90
Location: 45 Prev | Next Part: 102741 *Qty: 3 NUT $0.90
Location: 46 Prev | Next Part: 12639724 *Qty: 3 WASHER $0.90
Location: 47 Prev | Next Part: 154095 *Qty: 1 HAND BRAKE LEVER -Without lining Superseded
Location: 47 Prev | Next Part: 629965.. *Qty: 1 LINING -See relevant table for leather colours Call
Location: 48 Prev | Next Part: 169292 *Qty: 1 SWITCH -Valid from Ass. Nr. 22323 $1.97
Location: 48 Prev | Next Part: 114318 *Qty: 1 SWITCH -Valid till Ass. Nr. 22322 $23.73
Location: 49 Prev | Next Part: 114320 *Qty: 1 SUPPORT BRACKET -Valid till Ass. Nr. 22322 $2.89
Location: 49 Prev | Next Part: 169291 *Qty: 1 SUPPORT BRACKET -Valid from Ass. Nr. 22323 $1.61
Location: 50 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 51 Prev | Next Part: 12605274 *Qty: 1 WASHER $0.90
Location: 52 Prev | Next Part: 63622400 *Qty: 2 WASHER -Valid from Ass. Nr. 22323 $11.65
Location: 52 Prev | Next Part: 10519378 *Qty: 2 WASHER -Valid till Ass. Nr. 22322 $0.90
Location: 53 Prev | Next Part: 10902111 *Qty: 4 SCREW Superseded
Location: 54 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 55 Prev | Next Part: 12625224 *Qty: 4 WASHER $0.90
Location: 56 Prev | Next Part: 50084409 *Qty: 1 RIVET -Valid from Ass. Nr. 22323 $0.90
Location: 57 Prev | Next Part: 64051200 *Qty: 1 SUPPORT $16.12

* Quantity shown indicates the number of pieces used in the diagram.
