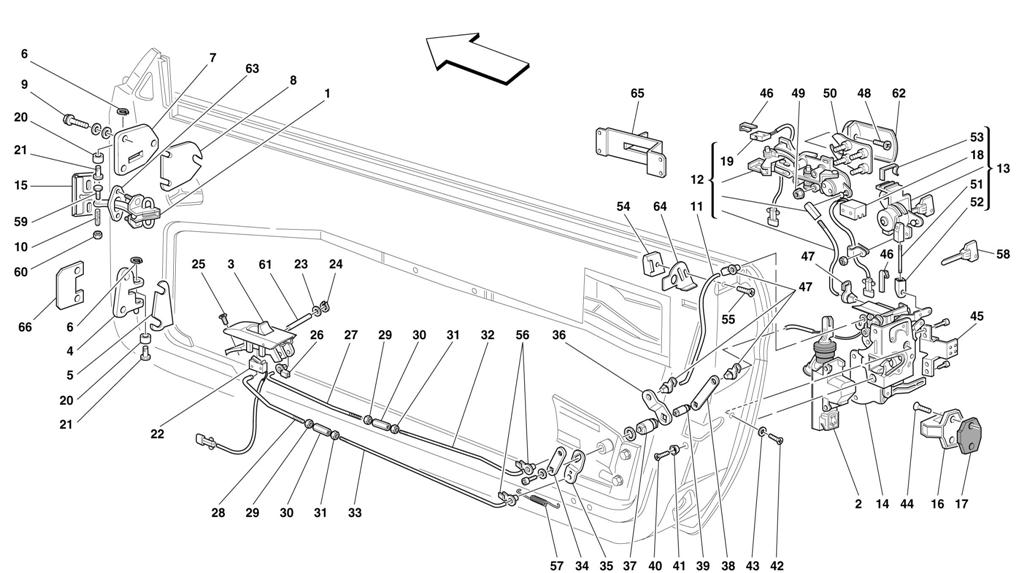

DOORS - OPENING CONTROL AND HINGES

Go to Split View

DOORS - OPENING CONTROL AND HINGES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 162546 *Qty: 1 LOCKSET Call
Location: 1 Prev | Next Part: 65195200 *Qty: 2 TIE ROD -Valid after stock exhaustion of 63896900- $48.31
Location: 2 Prev | Next Part: 63487400 *Qty: 2 CENTRALIZED LOCKING DEVICE Call
Location: 3 Prev | Next Part: 63724800 *Qty: 1 R.H. INNER HANDLE FOR DOOR OPENING $220.35
Location: 3 Prev | Next Part: 63724900 *Qty: 1 L.H. INNER HANDLE FOR DOOR OPENING $259.69
Location: 4 Prev | Next Part: 63188700 *Qty: 1 R.H. LOWER MOBILE HINGE $150.03
Location: 4 Prev | Next Part: 63188800 *Qty: 1 L.H. LOWER MOBILE HINGE $145.80
Location: 5 Prev | Next Part: 65404200 *Qty: 2 THICKNESS mm. 8-10 $16.58
Location: 6 Prev | Next Part: 11087776 *Qty: 4 SEEGER RING $0.90
Location: 7 Prev | Next Part: 63189300 *Qty: 1 R.H. UPPER MOBILE HINGE $166.79
Location: 7 Prev | Next Part: 63189400 *Qty: 1 L.H. UPPER MOBILE HINGE $162.02
Location: 8 Prev | Next Part: 63747100 *Qty: 2 THICKNESS mm. 8-10 $18.64
Location: 9 Prev | Next Part: 13839224 *Qty: 10 SCREW $4.05
Location: 10 Prev | Next Part: 62791700 *Qty: 2 PIN $9.94
Location: 11 Prev | Next Part: 63168000 *Qty: 1 R.H. TIE ROD $3.99
Location: 11 Prev | Next Part: 63888500 *Qty: 1 L.H. TIE ROD $4.11
Location: 12 Prev | Next Part: 63852400 *Qty: 1 R.H. COMPLETE OUTER DOOR HANDLE $213.43
Location: 12 Prev | Next Part: 63852500 *Qty: 1 L.H. COMPLETE OUTER DOOR HANDLE Call
Location: 13 Prev | Next Part: 63180300 *Qty: 1 R.H. COMPLETE LOCK CONTROL BLOCK $222.93
Location: 13 Prev | Next Part: 63180400 *Qty: 1 L.H. COMPLETE LOCK CONTROL BLOCK $222.93
Location: 14 Prev | Next Part: 63497400 *Qty: 1 R.H. COMPLETE DOOR LOCK $949.21
Location: 14 Prev | Next Part: 63497500 *Qty: 1 L.H. COMPLETE DOOR LOCK $949.21
Location: 15 Prev | Next Part: 63895200 *Qty: 1 R.H. SMALL PLATE $26.83
Location: 15 Prev | Next Part: 63895300 *Qty: 1 L.H. SMALL PLATE $26.83
Location: 16 Prev | Next Part: 63157000 *Qty: 2 DOOR CLOSING STRIKER $115.52
Location: 17 Prev | Next Part: 63877300 *Qty: 2 PLATE $3.24
Location: 18 Prev | Next Part: 63859200 *Qty: 2 DOORS LOCKING MICRO-SWITCH $255.25
Location: 19 Prev | Next Part: 63859800 *Qty: 2 OUTER DOOR HANDLE MICRO-SWITCH $100.61
Location: 20 Prev | Next Part: 63189600 *Qty: 4 BUSHING $22.82
Location: 21 Prev | Next Part: 63189700 *Qty: 4 PIN $5.61
Location: 22 Prev | Next Part: 63724400 *Qty: 2 INNER DOOR HANDLE MICRO-SWITCH $221.03
Location: 23 Prev | Next Part: 64203800 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 11087476 *Qty: 2 FLEXIBLE RING $6.39
Location: 25 Prev | Next Part: 13299477 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 14578080 *Qty: 2 TIE ROD RETAINING CLIP $0.90
Location: 27 Prev | Next Part: 63722500 *Qty: 2 SAFETY LOCK FRONT ROD FOR DOOR $84.10
Location: 28 Prev | Next Part: 63723100 *Qty: 2 HANDLE CONNECTION FRONT ROD $49.00
Location: 29 Prev | Next Part: 10794011 *Qty: 4 NUT $0.90
Location: 30 Prev | Next Part: 63402100 *Qty: 4 ADJUSTMENT SLEEVE Call
Location: 31 Prev | Next Part: 10791111 *Qty: 4 L.H. NUT Call
Location: 32 Prev | Next Part: 63722600 *Qty: 2 SAFETY LOCK REAR ROD FOR DOOR $84.10
Location: 33 Prev | Next Part: 63723200 *Qty: 2 HANDLE CONNECTION REAR ROD $49.00
Location: 34 Prev | Next Part: 63167400 *Qty: 2 HANDLE PRIMARY LEVER -Valid till Ass. Nr. 22893 $90.73
Location: 34 Prev | Next Part: 65100500 *Qty: 2 HANDLE PRIMARY LEVER -Valid from Ass. Nr. 22894 Call
Location: 35 Prev | Next Part: 63167800 *Qty: 2 SEFETY DEVICE PRIMARY LEVER $90.73
Location: 36 Prev | Next Part: 63167900 *Qty: 2 SEFETY DEVICE SECONDARY LEVER $66.47
Location: 37 Prev | Next Part: 63168600 *Qty: 2 SAFETY DEVICE TRANSMISSION PIN $11.34
Location: 38 Prev | Next Part: 63167500 *Qty: 2 HANDLE SECONDARY LEVER $90.73
Location: 39 Prev | Next Part: 65100900 *Qty: 2 HANDLE TRANSMISSION PIN -Valid from Ass. Nr. 22894 Call
Location: 39 Prev | Next Part: 63158500 *Qty: 2 HANDLE TRANSMISSION PIN -Valid till Ass. Nr. 22893 $74.69
Location: 40 Prev | Next Part: 14441582 *Qty: 2 SCREW $3.47
Location: 41 Prev | Next Part: 62794700 *Qty: 2 WASHER $0.99
Location: 42 Prev | Next Part: 13276077 *Qty: 2 SCREW $0.90
Location: 43 Prev | Next Part: 13550277 *Qty: 2 WASHER $0.90
Location: 44 Prev | Next Part: 14442034 *Qty: 4 SCREW $0.90
Location: 45 Prev | Next Part: 155323 *Qty: 2 BRACKET FOR MICRO-SWITCH FIXING -Valid till stock exhaustion $6.61
Location: 45 Prev | Next Part: 177879 *Qty: 2 BRACKET FOR MICRO-SWITCH FIXING -Valid after stock exhaustion of 155323 $5.72
Location: 46 Prev | Next Part: 155978 *Qty: 6 CLIP FOR PACKARD CONNECTION $0.90
Location: 47 Prev | Next Part: 64215300 *Qty: 8 TIE ROD RETAINING CLIP $0.90
Location: 48 Prev | Next Part: 62947900 *Qty: 2 SCREW $0.90
Location: 49 Prev | Next Part: 14084011 *Qty: 8 NUT $0.90
Location: 50 Prev | Next Part: 63158010 *Qty: 2 OUTER HANDLE SUPPORT $14.39
Location: 51 Prev | Next Part: 63772500 *Qty: 2 TIE ROD $3.36
Location: 52 Prev | Next Part: 62794000 *Qty: 2 FLEXIBLE JOINT $1.28
Location: 53 Prev | Next Part: 63179700 *Qty: 2 FIXING CLIP $9.10
Location: 54 Prev | Next Part: 63758800 *Qty: 1 R.H. SMALL BLOCK $1.40
Location: 54 Prev | Next Part: 63758900 *Qty: 1 L.H. SMALL BLOCK $1.40
Location: 55 Prev | Next Part: 15643978 *Qty: 2 SCREW $0.90
Location: 56 Prev | Next Part: 14578080 *Qty: 4 TIE ROD RETAINING CLIP $0.90
Location: 57 Prev | Next Part: 64074200 *Qty: 2 SPRING $27.87
Location: 58 Prev | Next Part: 164089 *Qty: 1 BLANK KEY -Not for 456 GTA Call
Location: 58 Prev | Next Part: 170010R *Qty: 1 BLANK KEY -Valid for 456 GTA $11.00
Location: 59 Prev | Next Part: 10903280 *Qty: 2 SCREW $0.90
Location: 60 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 61 Prev | Next Part: 64203900 *Qty: 2 PIN Call
Location: 62 Prev | Next Part: 63852610 *Qty: 2 HANDLE MOVABLE PART $252.73
Location: 63 Prev | Next Part: 65321600 *Qty: 2 SMALL PLATE $7.57
Location: 64 Prev | Next Part: 65669300 *Qty: 1 R.H. REINFORCEMENT $52.71
Location: 64 Prev | Next Part: 65669400 *Qty: 1 L.H. REINFORCEMENT $52.71
Location: 65 Prev | Next Part: 63893000 *Qty: 1 L.H. PAD AIR PLATE $21.53
Location: 65 Prev | Next Part: 63893100 *Qty: 1 R.H. PAD AIR PLATE $21.53
Location: 66 Prev | Next Part: 63747900 *Qty: 1 R.H. PLATE $64.90
Location: 66 Prev | Next Part: 63748000 *Qty: 1 L.H. PLATE $64.90

* Quantity shown indicates the number of pieces used in the diagram.
