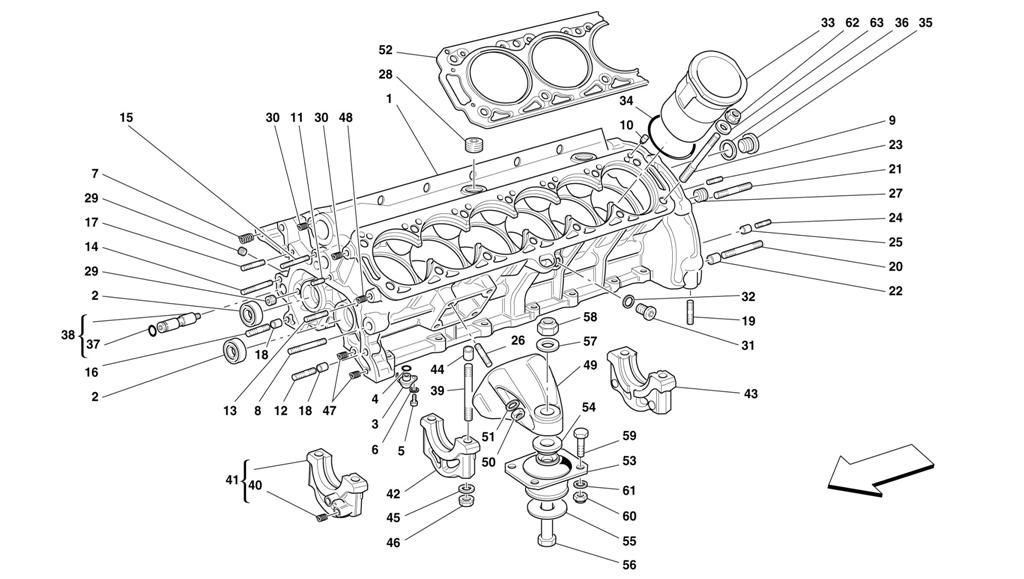

CRANKCASE

Go to Split View

CRANKCASE

Location Part # Quantity* Description Price Add To Cart
- 173504 1 COMPLETE BASE-PLATE -Valid for MOTRONIC 5.2 $12,862.77
- 153192 1 COMPLETE BASE-PLATE -Valid for MOTRONIC 2.7 -Valid till engine Nr. 39699 -For USA till engine Nr. Unavailable
- 169545 1 COMPLETE BASE-PLATE -Valid for MOTRONIC 2.7 -Valid from engine Nr. 39700 -For USA from engine Nr. Unavailable
1 153384 1 CRANKCASE -With the compl. crankcase 153192 Unavailable
1 159345 1 CRANKCASE -With the compl. crankcase 169545 Unavailable
1 164849 1 CRANKCASE -With the compl. crankcase 173504 Unavailable
2 171177 2 BEARING -Replace the 144713 $20.38
3 152382 12 NOZZLE -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. 38733 $226.89
4 143856 12 O.R. GASKET -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. 3 Unavailable
5 14303024 12 SCREW -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. 38733 $1.04
6 12601074 12 WASHER -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. 38733 Unavailable
7 13526170 3 THREADED INSERT $6.52
8 13972234 1 STUD Unavailable
9 140591 28 STUD Unavailable
10 152627 4 DOWEL $4.28
11 13541224 1 STUD $230.91
12 13543924 1 STUD $1.95
13 13543524 1 STUD Unavailable
14 13541924 1 STUD $4.06
15 13541724 1 STUD Unavailable
16 13543424 1 STUD Unavailable
17 13543824 1 STUD Superseded
18 100041 2 DOWEL $8.91
19 13517224 2 STUD Unavailable
20 13543924 2 STUD $1.95
21 13543824 3 STUD Superseded
22 102704 2 DOWEL $3.69
23 13541024 2 STUD Unavailable
24 13541224 2 STUD $230.91
25 103038 2 DOWEL Unavailable
26 13546524 8 STUD Superseded
27 163528 2 THREADED PLUG $4.91
28 14325540 2 THREADED PLUG $11.59
29 10275550 3 THREADED PLUG -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. $1.28
30 13525870 2 THREADED INSERT Unavailable
31 150731 2 THREADED PLUG $4.67
32 10280060 2 GASKET $0.90
33 140316 12 CYLINDER LINER -Valid for MOTRONIC 2.7 $1,253.50
33 166991 12 CYLINDER LINER -Valid for MOTRONIC 5.2 $325.69
34 140321 12 GASKET $8.49
35 10304640 1 THREADED PLUG $6.11
36 10264560 1 GASKET Unavailable
37 134232 1 O.R. GASKET -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH till engine Nr. 3 Unavailable
38 151160 1 OIL PRESSURE RELIEF VALVE -Valid till engine Nr. 39699 -For USA till engine Nr. 38753 -For CH til Unavailable
39 140553 14 STUD $9.22
40 13525770 2 THREADED INSERT Unavailable
41 140545 1 FRONT HAT -With complete crankase Unavailable
42 140499 5 INTERMEDIATE HAT -With complete crankase Unavailable
43 140565 1 REAR HAT -With complete crankase Unavailable
44 145493 14 DOWEL $2.13
45 142588 14 WASHER $1.30
46 142590 14 NUT $6.27
47 13525570 2 THREADED INSERT $2.86
48 13525570 1 THREADED INSERT $2.86
49 141892 2 SUPPORT FOR MOTOR FIXING $248.19
50 133988 8 NUT -Valid after stock exhaustion of 15501121 Unavailable
51 11190579 8 WASHER Unavailable
52 142865 2 GASKET $545.18
53 159423 2 WICK BODY $169.24
54 132268 2 SPACER Unavailable
55 132269 2 SPACER Unavailable
56 15981634 2 SCREW -Valid from Ass. Nr. 16067- $32.07
57 12601774 2 WASHER Unavailable
58 176573 2 NUT $2.29
59 15970634 8 SCREW Unavailable
60 133988 8 NUT Unavailable
61 127497 8 WASHER $0.90
62 140664 28 NUT $75.19
63 140603 28 WASHER $5.05

* Quantity shown indicates the number of pieces used in the diagram.
