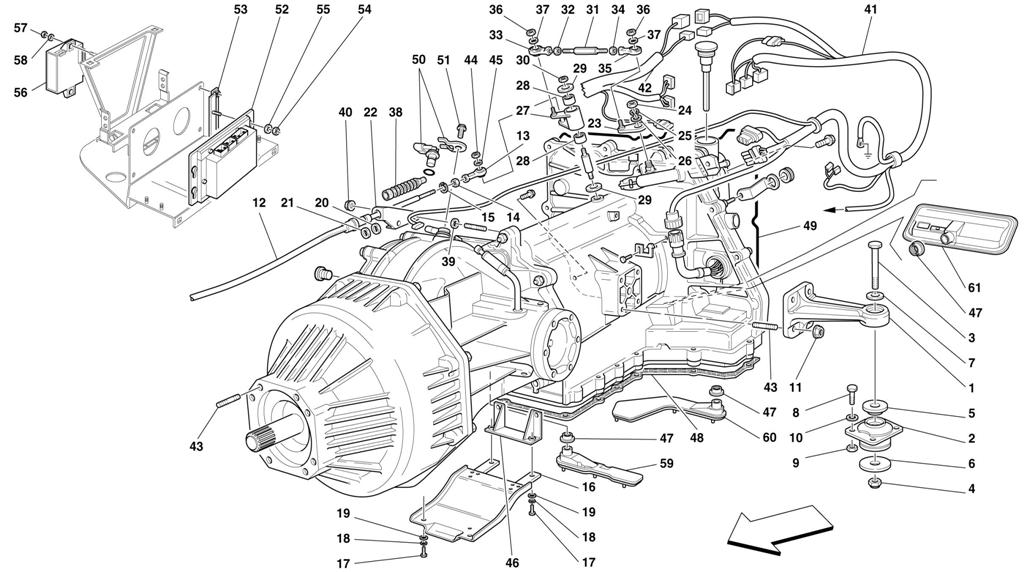

COMPLETE GEARBOX -VALID FOR 456 GTA

Go to Split View

COMPLETE GEARBOX -VALID FOR 456 GTA

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 164018 *Qty: 1 COMPLETE AUTOMATIC GEARBOX Call
Location: 1 Prev | Next Part: 168487 *Qty: 2 GEARBOX FIXING SUPPORT $553.89
Location: 2 Prev | Next Part: 165394 *Qty: 2 FLEXIBLE PAD $109.57
Location: 3 Prev | Next Part: 15981634 *Qty: 2 SCREW $3.27
Location: 4 Prev | Next Part: 169193 *Qty: 1 NUT $1.67
Location: 5 Prev | Next Part: 132268 *Qty: 2 UPPER SPACER Call
Location: 6 Prev | Next Part: 132269 *Qty: 2 LOWER SPACER Call
Location: 7 Prev | Next Part: 10520224 *Qty: 2 WASHER Superseded
Location: 8 Prev | Next Part: 15970634 *Qty: 8 SCREW $0.90
Location: 9 Prev | Next Part: 133988 *Qty: 8 NUT $0.90
Location: 10 Prev | Next Part: 127497 *Qty: 8 WASHER $0.90
Location: 11 Prev | Next Part: 156462 *Qty: 8 NUT $1.17
Location: 12 Prev | Next Part: 171223 *Qty: 1 GEARBOX CONTROL PUSH-PULL CABLE $368.52
Location: 13 Prev | Next Part: 171200 *Qty: 1 BALL JOINT $30.99
Location: 14 Prev | Next Part: 10725914 *Qty: 1 NUT $0.90
Location: 15 Prev | Next Part: 11088076 *Qty: 1 FLEXIBLE RING $0.90
Location: 16 Prev | Next Part: 65082200 *Qty: 1 AIR CONVEYOR -Valid till Ass. Nr. 23809 $223.47
Location: 16 Prev | Next Part: 65293600 *Qty: 1 AIR CONVEYOR -Valid from Ass. Nr. 23810 $45.65
Location: 17 Prev | Next Part: 10977687 *Qty: 4 SCREW $0.90
Location: 18 Prev | Next Part: 149951 *Qty: 4 WASHER Superseded
Location: 19 Prev | Next Part: 12638177 *Qty: 4 WASHER Superseded
Location: 20 Prev | Next Part: 171188 *Qty: 1 SPACER $5.66
Location: 21 Prev | Next Part: 171189 *Qty: 2 SPACER $14.33
Location: 22 Prev | Next Part: 171202 *Qty: 1 BRACKET $25.21
Location: 23 Prev | Next Part: 170753 *Qty: 1 SMALL LEVER $48.56
Location: 24 Prev | Next Part: 10788711 *Qty: 1 NUT $1.52
Location: 25 Prev | Next Part: 12646821 *Qty: 1 WASHER $0.90
Location: 26 Prev | Next Part: 12604579 *Qty: 1 WASHER $1.32
Location: 27 Prev | Next Part: 170758 *Qty: 1 ROCKER $469.03
Location: 28 Prev | Next Part: 171186 *Qty: 2 ROLLER CASING $10.13
Location: 29 Prev | Next Part: 170757 *Qty: 2 WASHER $4.19
Location: 30 Prev | Next Part: 14058511 *Qty: 1 NUT $0.90
Location: 31 Prev | Next Part: 164011 *Qty: 1 PIN $45.88
Location: 32 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 33 Prev | Next Part: 111530 *Qty: 1 BALL JOINT $31.04
Location: 34 Prev | Next Part: 10790215 *Qty: 1 NUT $11.28
Location: 35 Prev | Next Part: 111529 *Qty: 1 BALL JOINT $76.21
Location: 36 Prev | Next Part: 15896470 *Qty: 2 NUT $0.90
Location: 37 Prev | Next Part: 10730014 *Qty: 2 WASHER $0.90
Location: 38 Prev | Next Part: 173604 *Qty: 1 RUBBER BOOT $58.86
Location: 39 Prev | Next Part: 125516 *Qty: 2 WASHER $5.40
Location: 40 Prev | Next Part: 15896214 *Qty: 2 NUT $0.90
Location: 41 Prev | Next Part: 171919 *Qty: 1 AUTOMATIC GEARBOX CONNECTING CABLES -Valid from car Ass. Nr. 23401 $3,614.92
Location: 41 Prev | Next Part: 167529 *Qty: 1 AUTOMATIC GEARBOX CONNECTING CABLES -Valid till car Ass. Nr. 23400 $2,793.29
Location: 42 Prev | Next Part: 171920 *Qty: 1 REAR CABLES -Not for USA, CDN and RHD -Valid from car Ass. Nr. 23401 $1,701.10
Location: 42 Prev | Next Part: 171921 *Qty: 1 REAR CABLES -Valid for RHD -Valid from car Ass. Nr. 23401 $1,686.35
Location: 42 Prev | Next Part: 171922 *Qty: 1 REAR CABLES -Valid for USA and CDN -Valid from car Ass. Nr. 23401 $1,678.76
Location: 42 Prev | Next Part: 168747 *Qty: 1 REAR CABLES -Not for USA, CDN and RHD -Valid till car Ass. Nr. 23400 Call
Location: 42 Prev | Next Part: 170532 *Qty: 1 REAR CABLES -Valid for RHD -Valid till car Ass. Nr. 23400 Call
Location: 42 Prev | Next Part: 166983 *Qty: 1 REAR CABLES -Valid for USA and CDN -Valid till car Ass. Nr. 23400 $6,237.16
Location: 43 Prev | Next Part: 13546334 *Qty: 16 STUD $1.10
Location: 44 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 45 Prev | Next Part: 10519424 *Qty: 1 WASHER Call
Location: 46 Prev | Next Part: 177193 *Qty: 1 BRACKET Call
Location: 47 Prev | Next Part: 178100 *Qty: 3 RUBBER BUSHING $21.21
Location: 48 Prev | Next Part: 177298 *Qty: 1 LOWER GASKET $123.48
Location: 49 Prev | Next Part: 178158 *Qty: 1 REAR GASKET $293.15
Location: 50 Prev | Next Part: 177195 *Qty: 1 SPEED SENSOR $236.94
Location: 51 Prev | Next Part: 177196 *Qty: 1 SCREW Call
Location: 52 Prev | Next Part: 172776 *Qty: 1 ELECTRONIC CONTROL STATION -Not for USA and CDN $5,156.62
Location: 52 Prev | Next Part: 172777 *Qty: 1 ELECTRONIC CONTROL STATION -Valid for USA and CDN $3,605.85
Location: 53 Prev | Next Part: 168226 *Qty: 1 FRONT BRACKET FOR CONTROL UNIT $14.74
Location: 53 Prev | Next Part: 168227 *Qty: 1 REAR BRACKET FOR CONTROL UNIT $14.74
Location: 54 Prev | Next Part: 102741 *Qty: 4 NUT $0.90
Location: 55 Prev | Next Part: 12643724 *Qty: 4 WASHER Superseded
Location: 56 Prev | Next Part: 166960 *Qty: 1 CONTROL STATION $865.91
Location: 57 Prev | Next Part: 113647 *Qty: 2 NUT $0.90
Location: 58 Prev | Next Part: 12637824 *Qty: 2 WASHER $0.90
Location: 59 Prev | Next Part: 178159 *Qty: 1 LOWER FRONT FILTER $81.72
Location: 60 Prev | Next Part: 178162 *Qty: 1 LOWER CENTRAL FILTER $76.87
Location: 61 Prev | Next Part: 178164 *Qty: 1 REAR FILTER $259.09

* Quantity shown indicates the number of pieces used in the diagram.
