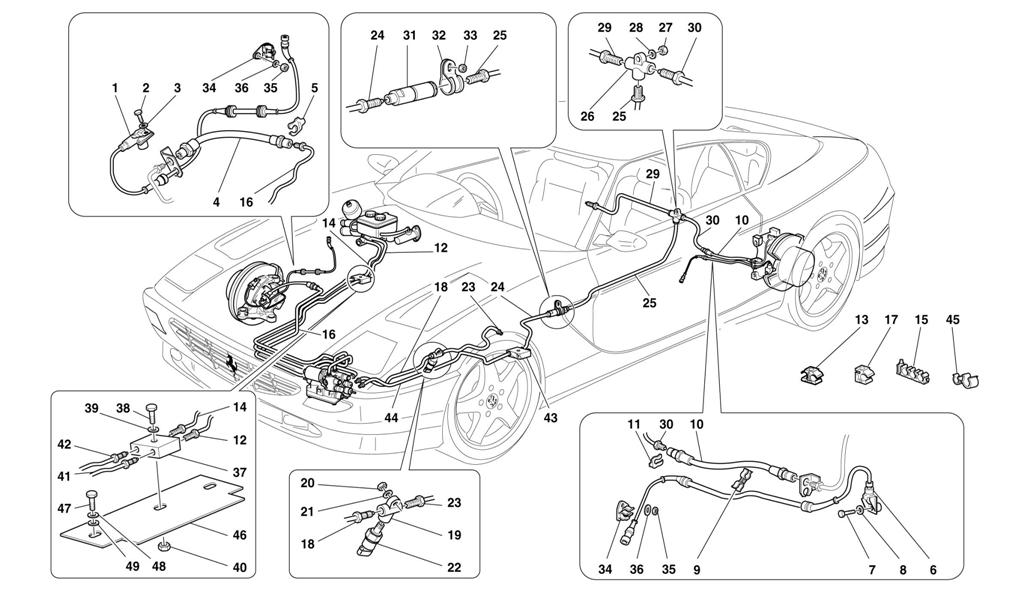

BRAKE SYSTEM -VALID FOR RHD

Go to Split View

BRAKE SYSTEM -VALID FOR RHD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 154661 *Qty: 2 FRONT TOOTHED WHEEL SENSOR $145.95
Location: 2 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 3 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: 137313 *Qty: 2 HOSE $113.92
Location: 5 Prev | Next Part: 116374 *Qty: 2 FIXING CLIP $2.59
Location: 6 Prev | Next Part: 154662 *Qty: 2 REAR TOOTHED WHEEL SENSOR $173.35
Location: 7 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 9 Prev | Next Part: 124551 *Qty: 4 FIXING CLIP $1.54
Location: 10 Prev | Next Part: 116373 *Qty: 2 REAR HOSE Superseded
Location: 11 Prev | Next Part: 116374 *Qty: 2 FIXING CLIP $2.59
Location: 12 Prev | Next Part: 157720 *Qty: 1 BRAKE PIPE FROM PUMP TO UNION $11.16
Location: 13 Prev | Next Part: 143055 *Qty: 8 FIXING CLIP $0.90
Location: 14 Prev | Next Part: 157724 *Qty: 1 BRAKE PIPE FROM PUMP TO UNION $8.25
Location: 15 Prev | Next Part: 127515 *Qty: 2 FIXING CLIP $0.90
Location: 16 Prev | Next Part: 157725 *Qty: 1 BRAKE PIPE FROM ABS CENTER UNIT TO R.H. FRONT FLEXIBLE PIPE $16.86
Location: 17 Prev | Next Part: 141505 *Qty: 4 FIXING CLIP $1.36
Location: 18 Prev | Next Part: 157735 *Qty: 1 BRAKE PIPE FROM ABS CENTER UNIT TO REGULATOR $10.47
Location: 19 Prev | Next Part: 101394 *Qty: 1 3-WAY UNION Call
Location: 20 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 21 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 22 Prev | Next Part: 154309 *Qty: 1 PRESSURE REGULATOR $33.54
Location: 23 Prev | Next Part: 157736 *Qty: 1 BRAKE PIPE FROM REGULATORTO L.H. FRONT FLEXIBLE PIPE $10.49
Location: 24 Prev | Next Part: 157739 *Qty: 1 BRAKE PIPE FROM UNION TO CORRECTOR $12.08
Location: 25 Prev | Next Part: 154045 *Qty: 1 BRAKE PIPE FROM CORRECTOR TO 3-WAY UNION -Not for 456 GTA $21.90
Location: 25 Prev | Next Part: 168755 *Qty: 1 BRAKE PIPE FROM CORRECTOR TO 3-WAY UNION -Valid for 456 GTA $23.64
Location: 26 Prev | Next Part: 101394 *Qty: 1 3-WAY UNION Call
Location: 27 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 28 Prev | Next Part: 12639724 *Qty: 1 WASHER $0.90
Location: 29 Prev | Next Part: 154046 *Qty: 1 BRAKE PIPE FROM UNION TO R.H. REAR FLEXIBLE PIPE -Not for 456 GTA $11.30
Location: 29 Prev | Next Part: 168757 *Qty: 1 BRAKE PIPE FROM UNION TO R.H. REAR FLEXIBLE PIPE -Valid for 456 GTA $22.76
Location: 30 Prev | Next Part: 154047 *Qty: 1 BRAKE PIPE FROM UNION TO L.H. REAR FLEXIBLE PIPE -Not for 456 GTA $10.28
Location: 30 Prev | Next Part: 168756 *Qty: 1 BRAKE PIPE FROM UNION TO L.H. REAR FLEXIBLE PIPE -Valid for 456 GTA $17.55
Location: 31 Prev | Next Part: 136313 *Qty: 1 BRAKING REGULATOR -Valid for 456 GTA $69.88
Location: 31 Prev | Next Part: 157908 *Qty: 1 BRAKING REGULATOR -Not for 456 GTA -Valid for braking system "BREMBO" $122.22
Location: 31 Prev | Next Part: 155808 *Qty: 1 BRAKING REGULATOR -Not for 456 GTA -Valid for braking system "TEVES" $88.41
Location: 32 Prev | Next Part: 10441990 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 33 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 34 Prev | Next Part: 128292 *Qty: 4 CLIP $2.76
Location: 35 Prev | Next Part: 62790300 *Qty: 4 NUT $0.90
Location: 36 Prev | Next Part: 10519224 *Qty: 4 WASHER $0.90
Location: 37 Prev | Next Part: 157719 *Qty: 1 TWO-WAY UNION $123.75
Location: 38 Prev | Next Part: 10903024 *Qty: 2 SCREW $0.90
Location: 39 Prev | Next Part: 12639724 *Qty: 2 WASHER $0.90
Location: 40 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 41 Prev | Next Part: 157733 *Qty: 1 BRAKE PIPE FROM UNION TO ABS CENTER UNIT $24.26
Location: 42 Prev | Next Part: 157734 *Qty: 1 BRAKE PIPE FROM UNION TO ABS CENTER UNIT $22.93
Location: 43 Prev | Next Part: 157719 *Qty: 1 TWO-WAY UNION $123.75
Location: 44 Prev | Next Part: 157738 *Qty: 1 BRAKE PIPE FROM REGULATOR TO UNION $12.44
Location: 45 Prev | Next Part: 150738 *Qty: 6 CLIP $0.90
Location: 46 Prev | Next Part: 159111 *Qty: 2 BRACKET $6.94
Location: 47 Prev | Next Part: 10902124 *Qty: 4 SCREW $0.90
Location: 48 Prev | Next Part: 12601274 *Qty: 4 WASHER $0.90
Location: 49 Prev | Next Part: 12643778 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
