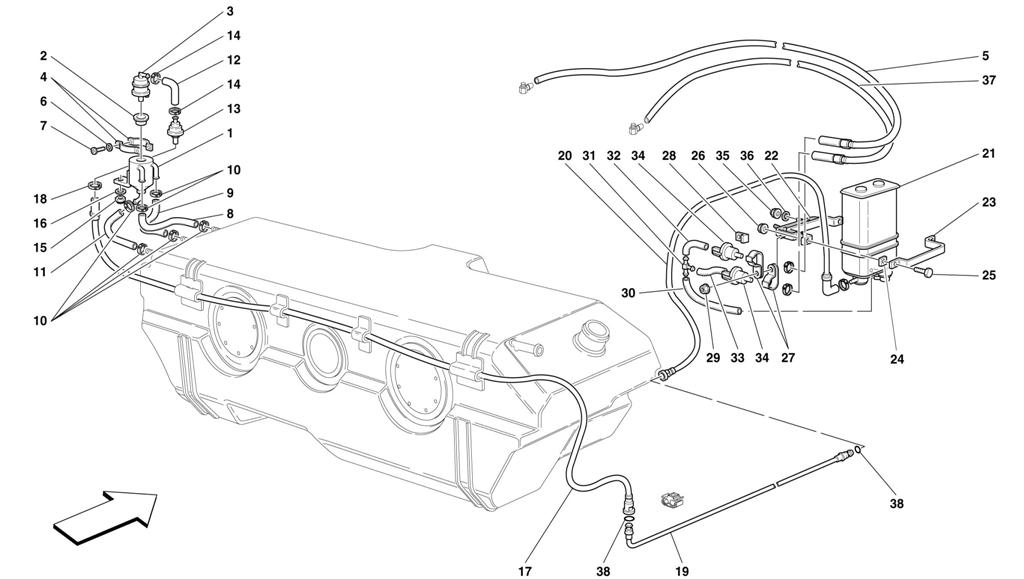

ANTIEVAP. DEVICE -NOT FOR USA, CDN AND AUS FROM CAR ASS. NR. 26913-

Go to Split View

ANTIEVAP. DEVICE -NOT FOR USA, CDN AND AUS FROM CAR ASS. NR. 26913-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 155407 *Qty: 1 DISARETOR $274.63
Location: 2 Prev | Next Part: 155313 *Qty: 1 SEAL RING $46.79
Location: 3 Prev | Next Part: 124193 *Qty: 1 ANTI FLOWING BACK VALVE Unavailable
Location: 4 Prev | Next Part: 155405 *Qty: 1 BRACKET $26.90
Location: 5 Prev | Next Part: 155779 *Qty: 1 PIPE FROM VALVE TO L.H. MANIFOLD -Valid after stock exhaustion of 155855 $122.29
Location: 5 Prev | Next Part: 155855 *Qty: 1 PIPE FROM VALVE TO L.H. MANIFOLD -Valid till stock exhaustion $204.30
Location: 6 Prev | Next Part: 14496324 *Qty: 2 WASHER $3.59
Location: 7 Prev | Next Part: 13273911 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 116764 *Qty: 1 PIPE FROM FRONT FUEL TANK TO DISAREATOR $44.10
Location: 9 Prev | Next Part: 116767 *Qty: 1 PIPE FROM CENTRAL FUEL TANK TO DISAREATOR $28.28
Location: 10 Prev | Next Part: 13000190 *Qty: 6 SCREW COLLAR $0.90
Location: 11 Prev | Next Part: 114880 *Qty: 1 PIPE FROM REAR FUEL TANK TO DISAREATOR $42.36
Location: 12 Prev | Next Part: 148464 *Qty: 1 SLEEVE $7.31
Location: 13 Prev | Next Part: 170442 *Qty: 1 VALVE -Valid after stock exhaustion of 159478 Unavailable
Location: 14 Prev | Next Part: 13000190 *Qty: 2 SCREW COLLAR $0.90
Location: 15 Prev | Next Part: 102948 *Qty: 2 NUT Superseded
Location: 16 Prev | Next Part: 14496421 *Qty: 2 WASHER Unavailable
Location: 17 Prev | Next Part: 155762 *Qty: 1 PIPE FROM VALVE TO INTERMEDIATE PIPE $118.87
Location: 18 Prev | Next Part: 13000190 *Qty: 1 SCREW COLLAR $0.90
Location: 19 Prev | Next Part: 155763 *Qty: 1 INTERMEDIATE PIPE $69.09
Location: 20 Prev | Next Part: 155765 *Qty: 1 PIPE FROM INTERMEDIATE PIPE TO VAPOR FILTER $247.85
Location: 21 Prev | Next Part: 148413 *Qty: 1 CHARCOAL CARBON CANISTER -Valid for MOTRONIC 2.7 $545.27
Location: 21 Prev | Next Part: 173791 *Qty: 1 CHARCOAL CARBON CANISTER -Valid for MOTRONIC 5.2 -Replace the 168366 $391.11
Location: 22 Prev | Next Part: 156452 *Qty: 1 FRAME FASTENING FILTER $30.25
Location: 23 Prev | Next Part: 154385 *Qty: 1 COMPLETE BRACKET $89.64
Location: 24 Prev | Next Part: 143587 *Qty: 2 PLATE $6.03
Location: 25 Prev | Next Part: 10902111 *Qty: 2 SCREW Superseded
Location: 26 Prev | Next Part: 102948 *Qty: 2 NUT Superseded
Location: 27 Prev | Next Part: 142196 *Qty: 2 FIXING BRACKET $1.92
Location: 28 Prev | Next Part: 137716 *Qty: 1 PLATE $22.32
Location: 29 Prev | Next Part: 15896214 *Qty: 1 NUT Unavailable
Location: 30 Prev | Next Part: 114874 *Qty: 1 PIPE FROM FILTER TO UNION Unavailable
Location: 31 Prev | Next Part: 105990 *Qty: 1 3-WAY UNION Unavailable
Location: 32 Prev | Next Part: 155759 *Qty: 1 PIPE FROM UNION TO ANTIEVAPORATION VALVE Unavailable
Location: 33 Prev | Next Part: 133337 *Qty: 1 PIPE FROM UNION TO ANTIEVAPORATION VALVE Unavailable
Location: 34 Prev | Next Part: 130978 *Qty: 2 ANTI-EVAPORATION VALVE -Valid for MOTRONIC 2.7 Unavailable
Location: 34 Prev | Next Part: 162412 *Qty: 2 ANTI-EVAPORATION VALVE -Valid for MOTRONIC 5.2 $123.72
Location: 35 Prev | Next Part: 102948 *Qty: 2 NUT Superseded
Location: 36 Prev | Next Part: 14499301 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 155778 *Qty: 1 PIPE FROM VALVE TO R.H. MANIFOLD -Valid after stock exhaustion of 155856 $109.53
Location: 37 Prev | Next Part: 155856 *Qty: 1 PIPE FROM VALVE TO R.H. MANIFOLD -Valid till stock exhaustion $191.56
Location: 38 Prev | Next Part: 133956 *Qty: 4 O.R. GASKET $1.05

* Quantity shown indicates the number of pieces used in the diagram.
