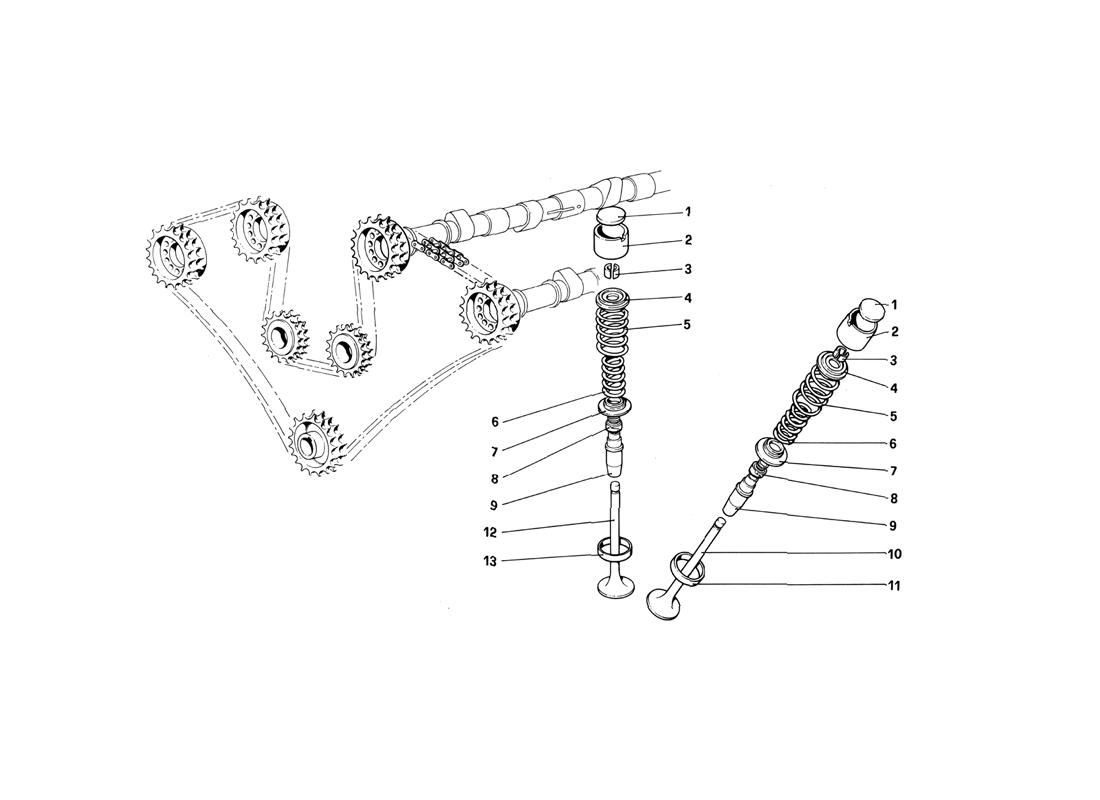

TIMING SYSTEM - VALVES

Location Part # Quantity* Description Price Add To Cart
1 108667 24 Ditto. thickness 3.25 mm. $15.55
1 102851 24 Ditto. thickness 4.40 mm. $18.35
1 116101 24 Ditto. thickness 3.72 mm. $15.57
1 116107 24 Ditto. thickness 4.02 mm. Unavailable
1 108668 24 Ditto. thickness 3.30 mm. $16.02
1 102852 24 Ditto. thickness 4.45 mm. $16.24
1 102838 24 Ditto. thickness 3.75 mm. Unavailable
1 102844 24 Ditto. thickness 4.05 mm. Unavailable
1 108669 24 Ditto. thickness 3.35 mm. Unavailable
1 102853 24 Ditto. thickness 4.50 mm. $16.52
1 116102 24 Ditto. thickness 3.77 mm. $13.64
1 116108 24 Ditto. thickness 4.07 mm. Unavailable
1 108670 24 Ditto. thickness 3.40 mm. $15.39
1 102854 24 Ditto. thickness 4.55 mm. $16.24
1 102839 24 Ditto. thickness 3.80 mm. $15.25
1 102845 24 Ditto. thickness 4.10 mm. $16.02
1 108671 24 Ditto. thickness 3.45 mm. $16.02
1 104347 24 Ditto. thickness 4.60 mm. $14.66
1 116103 24 Ditto. thickness 3.82 mm. $13.52
1 116109 24 Ditto. thickness 4.12 mm. Unavailable
1 102833 24 Ditto. thickness 3.50 mm. Unavailable
1 102843 24 Pad for valve adjustment 4 mm. $18.21
1 102840 24 Ditto. thickness 3.85 mm. Unavailable
1 116110 24 Ditto. thickness 4.17 mm. $14.05
1 102834 24 Ditto. thickness 3.55 mm. $18.33
1 116104 24 Ditto. thickness 3.87 mm. $13.99
1 102847 24 Ditto. thickness 4.20 mm. $15.12
1 102835 24 Ditto. thickness 3.60 mm. Unavailable
1 102841 24 Ditto. thickness 3.90 mm. Unavailable
1 102842 24 Ditto. thickness 4.25 mm. $16.02
1 102836 24 Ditto. thickness 3.65 mm. Unavailable
1 102848 24 Ditto. thickness 3.95 mm. $18.21
1 102849 24 Ditto. thickness 4.30 mm. $16.02
1 116100 24 Ditto. thickness 3.67 mm. $11.96
1 116106 24 Ditto. thickness 3.97 mm. $12.44
1 102850 24 Ditto. thickness 4.35 mm. $16.02
1 116105 24 -Ditto. thickness 3.92 mm. $14.68
1 102837 24 Ditto. thickness 3.70 mm. $15.49
1 102846 24 Ditto. thickness 4. 15 mm. $17.62
2 100232 24 Tappet for valve control $128.56
3 100244 24 Cone for cup $14.49
4 100241 24 Seat for springs $49.41
5 100240 24 Outer spring $26.51
6 100239 24 Inner spring $22.33
7 100242 24 Lower cup for valve spring $76.71
8 119766 24 Oil retainer $21.21
9 117874 24 Oversize valve guide $57.61
9 100236 24 Valve guide $60.80
10 107082 12 Exhaust valve. sodium type $138.59
11 126595 12 Exhaust valve seat $38.10
12 100234 12 Intake valve $108.26
13 126594 12 Intake valve seat $38.10

* Quantity shown indicates the number of pieces used in the diagram.
