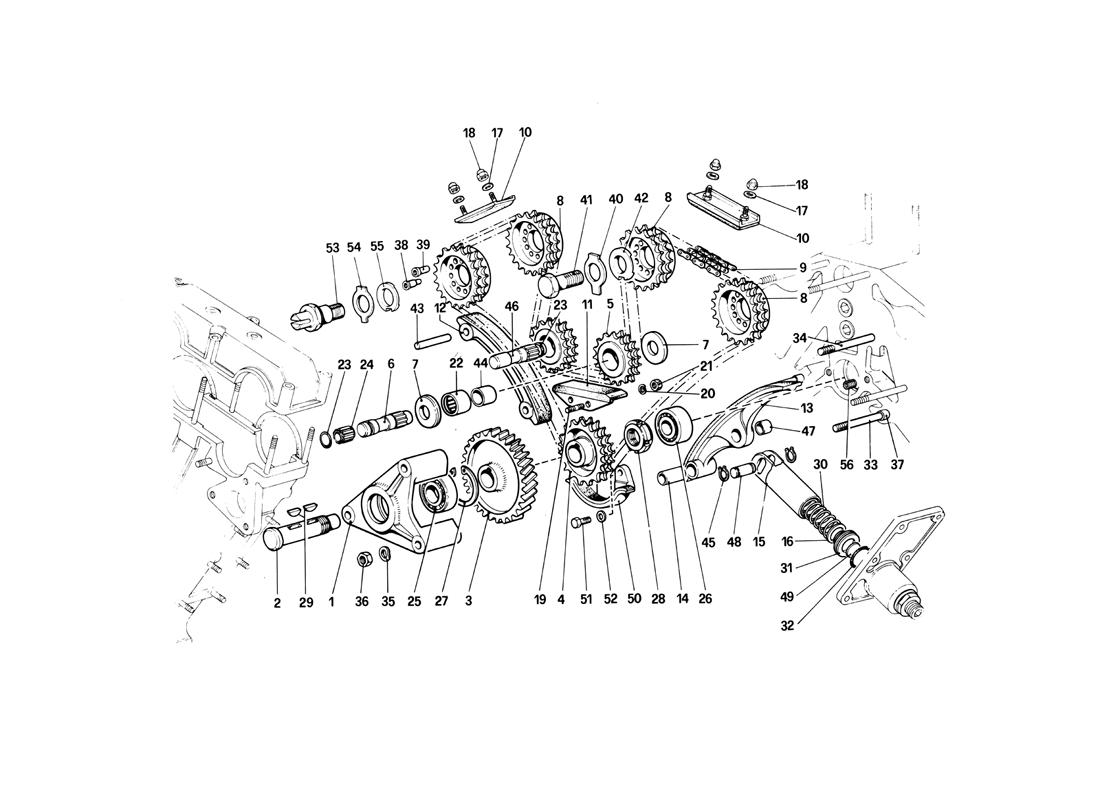

TIMING SYSTEM - CONTROLS

Go to Split View

TIMING SYSTEM - CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 100200 *Qty: 1 Support for chain gear Call
Location: 2 Prev | Next Part: 100199 *Qty: 1 Pin for support $190.86
Location: 3 Prev | Next Part: 100197 *Qty: 1 Driven gear $1,748.09
Location: 4 Prev | Next Part: 100198 *Qty: 1 Driven gear for chain control $510.25
Location: 5 Prev | Next Part: 109936 *Qty: 2 Gear for fixed sprocket $305.36
Location: 6 Prev | Next Part: 100209 *Qty: 1 Pin for sprocket $74.77
Location: 7 Prev | Next Part: 102608 *Qty: 4 Spacer $104.58
Location: 8 Prev | Next Part: 100202 *Qty: 4 Driven gear on camshaft $399.00
Location: 9 Prev | Next Part: 100195 *Qty: 1 Timing chain $162.44
Location: 10 Prev | Next Part: 126241 *Qty: 2 Guide shoe. holding chain $78.53
Location: 11 Prev | Next Part: 109938 *Qty: 1 Guide shoe. central $262.86
Location: 12 Prev | Next Part: 126053 *Qty: 1 Guide shoe. lateral Call
Location: 13 Prev | Next Part: 126243 *Qty: 1 Guide shoe. mobile Call
Location: 14 Prev | Next Part: 104536 *Qty: 1 Bush $88.83
Location: 15 Prev | Next Part: 104977 *Qty: 1 Idler body $225.73
Location: 16 Prev | Next Part: 116503 *Qty: 1 Upper spacer $12.61
Location: 17 Prev | Next Part: 10297860 *Qty: 4 Gasket $0.90
Location: 18 Prev | Next Part: 101239 *Qty: 3 Nut $1.56
Location: 18 Prev | Next Part: 10725921 *Qty: 1 Nut for right cover Superseded
Location: 19 Prev | Next Part: 11500021 *Qty: 2 Stud Superseded
Location: 20 Prev | Next Part: 10516470 *Qty: 2 Washer Superseded
Location: 21 Prev | Next Part: 15896221 *Qty: 2 Nut Superseded
Location: 22 Prev | Next Part: 101300 *Qty: 2 Cage for chain stretcher $9.80
Location: 23 Prev | Next Part: 100015 *Qty: 2 Sealing ring $1.40
Location: 24 Prev | Next Part: 101591 *Qty: 4 Lock ring $14.89
Location: 25 Prev | Next Part: 101298 *Qty: 1 Bearing $14.36
Location: 26 Prev | Next Part: 104917 *Qty: 1 Bearing $8.28
Location: 27 Prev | Next Part: 11060076 *Qty: 1 Seeger ring $0.90
Location: 28 Prev | Next Part: 101241 *Qty: 1 Ring nut $112.78
Location: 29 Prev | Next Part: 10206320 *Qty: 2 Tongue $1.66
Location: 30 Prev | Next Part: 104978 *Qty: 1 Spring for idler body $5.66
Location: 31 Prev | Next Part: 118321 *Qty: 1 Spring seat $57.03
Location: 32 Prev | Next Part: 104984 *Qty: 1 Sealing ring $1.48
Location: 33 Prev | Next Part: 100036 *Qty: 2 Stud $18.34
Location: 34 Prev | Next Part: 104187 *Qty: 1 Stud $8.83
Location: 35 Prev | Next Part: 11198071 *Qty: 3 Washer Superseded
Location: 36 Prev | Next Part: 16100821 *Qty: 3 Nut Call
Location: 37 Prev | Next Part: 102704 *Qty: 2 Dowel $1.90
Location: 38 Prev | Next Part: 100203 *Qty: 4 Driving dowel $54.70
Location: 39 Prev | Next Part: 102827 *Qty: 3 Centering dowel $9.10
Location: 40 Prev | Next Part: 102777 *Qty: 2 Locking plate $9.51
Location: 41 Prev | Next Part: 106606 *Qty: 2 Bolt Call
Location: 42 Prev | Next Part: 106605 *Qty: 2 Washer Call
Location: 43 Prev | Next Part: 100212 *Qty: 2 Pin $36.75
Location: 44 Prev | Next Part: 101301 *Qty: 2 Inner ring $23.95
Location: 45 Prev | Next Part: 11066076 *Qty: 1 Lock ring Superseded
Location: 46 Prev | Next Part: 103228 *Qty: 1 Pin for gear of R.H. fixed sprocket $111.10
Location: 47 Prev | Next Part: 104537 *Qty: 1 Upper bush $61.95
Location: 48 Prev | Next Part: 104539 *Qty: 1 Pin $28.57
Location: 49 Prev | Next Part: 116504 *Qty: 1 Lower spacer $25.83
Location: 50 Prev | Next Part: 119029 *Qty: 1 Central guide shoe. holding chain Call
Location: 51 Prev | Next Part: 10902421 *Qty: 1 Screw Superseded
Location: 52 Prev | Next Part: 11197771 *Qty: 2 Washer Superseded
Location: 53 Prev | Next Part: 117801 *Qty: 1 Securing end for pinion $90.09
Location: 54 Prev | Next Part: 100205 *Qty: 1 Locking plate $1.07
Location: 55 Prev | Next Part: 106612 *Qty: 1 Washer $46.21
Location: 56 Prev | Next Part: 13525570 *Qty: 2 Heli-coil 4 $2.86

* Quantity shown indicates the number of pieces used in the diagram.
