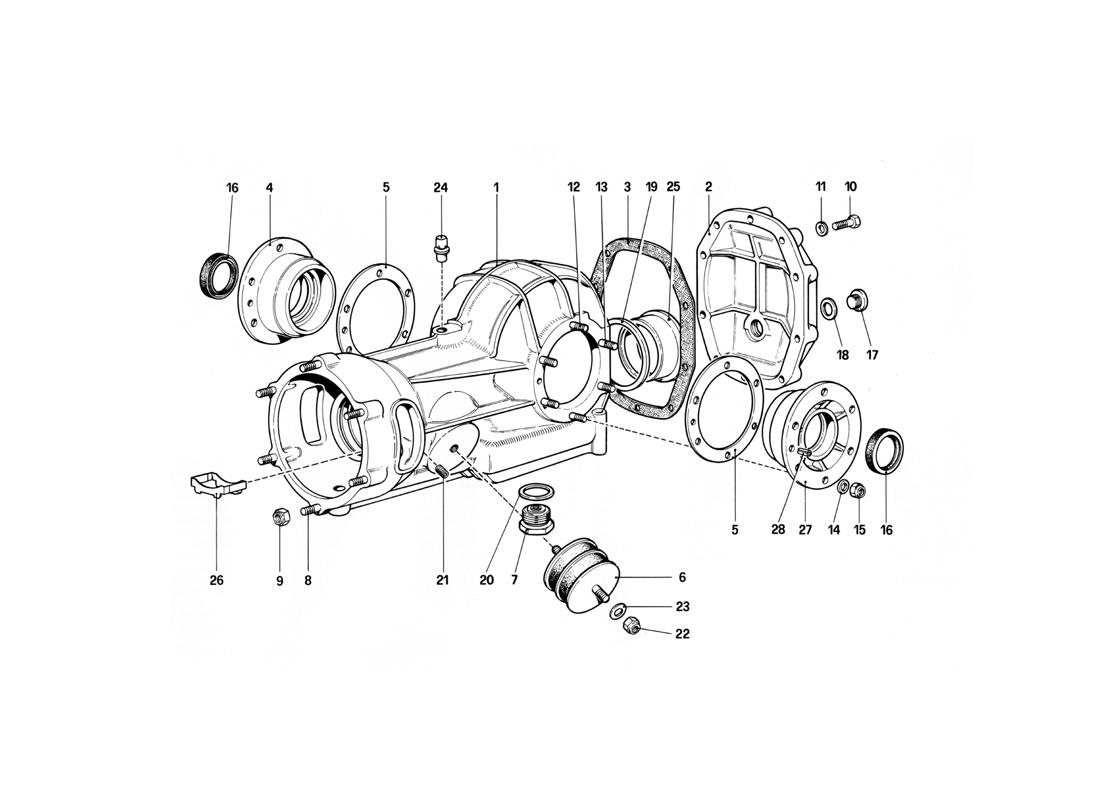

DIFFERENTIAL HOUSING

Go to Split View

DIFFERENTIAL HOUSING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 120197 *Qty: 1 Differential casing
Not spare
Unavailable
Location: 1 Prev | Next Part: 130589 *Qty: 1 Differential casing complete $4,702.54
Location: 1 Prev | Next Part: 120208 *Qty: 1 Differential complete 412 A - R 12/39 $8,443.34
Location: 1 Prev | Next Part: 120199 *Qty: 1 Differential complete 412 M - R 10/43 $4,469.44
Location: 2 Prev | Next Part: 100818 *Qty: 1 Rear cover Unavailable
Location: 3 Prev | Next Part: 100819 *Qty: 1 Gasket $4.42
Location: 4 Prev | Next Part: 126222 *Qty: 1 R.H. cover 412 A $582.70
Location: 4 Prev | Next Part: 126121 *Qty: 1 R.H. cover 412 M $263.54
Location: 5 Prev | Next Part: 107458 *Qty: 2 Ditto. thickness 1.25 mm. $38.63
Location: 5 Prev | Next Part: 107459 *Qty: 2 Ditto. thickness 1.5 mm. $14.08
Location: 5 Prev | Next Part: 107460 *Qty: 2 Ditto. thickness 1.75 mm. $40.53
Location: 5 Prev | Next Part: 107461 *Qty: 2 Ditto. thickness 2 mm. $37.82
Location: 5 Prev | Next Part: 122393 *Qty: 2 Ditto. thickness 2,25 mm. $57.46
Location: 5 Prev | Next Part: 122394 *Qty: 2 Ditto. thickness 2.50 mm. $59.36
Location: 5 Prev | Next Part: 122395 *Qty: 2 Ditto. thickness 2.75 mm. $62.07
Location: 5 Prev | Next Part: 100820 *Qty: 2 Shim for lateral cover 1 mm. $11.87
Location: 6 Prev | Next Part: 100825 *Qty: 2 Buffer. supporting differential casing Superseded
Location: 7 Prev | Next Part: 100826 *Qty: 1 Oil drain plug $99.50
Location: 8 Prev | Next Part: 13546321 *Qty: 6 Stud Superseded
Location: 9 Prev | Next Part: 13598021 *Qty: 6 Nut $3.94
Location: 10 Prev | Next Part: 16044021 *Qty: 10 Screw. securing rear cover $0.90
Location: 11 Prev | Next Part: 11198071 *Qty: 10 Conic washer Superseded
Location: 12 Prev | Next Part: 13546221 *Qty: 8 Long stud Superseded
Location: 13 Prev | Next Part: 13449421 *Qty: 4 Short stud Unavailable
Location: 14 Prev | Next Part: 11190571 *Qty: 12 Washer Unavailable
Location: 15 Prev | Next Part: 12164721 *Qty: 12 Nut Superseded
Location: 16 Prev | Next Part: 125076 *Qty: 2 Sealing ring $23.19
Location: 17 Prev | Next Part: 10275040 *Qty: 1 Oil level plug Superseded
Location: 18 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 19 Prev | Next Part: 102920 *Qty: 1 Spacer between casing and bearing $93.45
Location: 20 Prev | Next Part: 10265160 *Qty: 1 Gasket $2.02
Location: 21 Prev | Next Part: 101639 *Qty: 2 Grub screw for oil holes $1.35
Location: 22 Prev | Next Part: 12574521 *Qty: 2 Nut $0.90
Location: 23 Prev | Next Part: 13550476 *Qty: 2 Washer Unavailable
Location: 24 Prev | Next Part: 13411990 *Qty: 1 Breather $3.71
Location: 25 Prev | Next Part: 102921 *Qty: 1 Rear bearing carrier $211.05
Location: 26 Prev | Next Part: 106940 *Qty: 1 Oil conveyor $30.46
Location: 27 Prev | Next Part: 126109 *Qty: 1 L.H. cover 412 M $255.13
Location: 27 Prev | Next Part: 126221 *Qty: 1 L.H. cover 412 A $413.65
Location: 28 Prev | Next Part: 14600870 *Qty: 2 Spring pin $0.90

* Quantity shown indicates the number of pieces used in the diagram.
