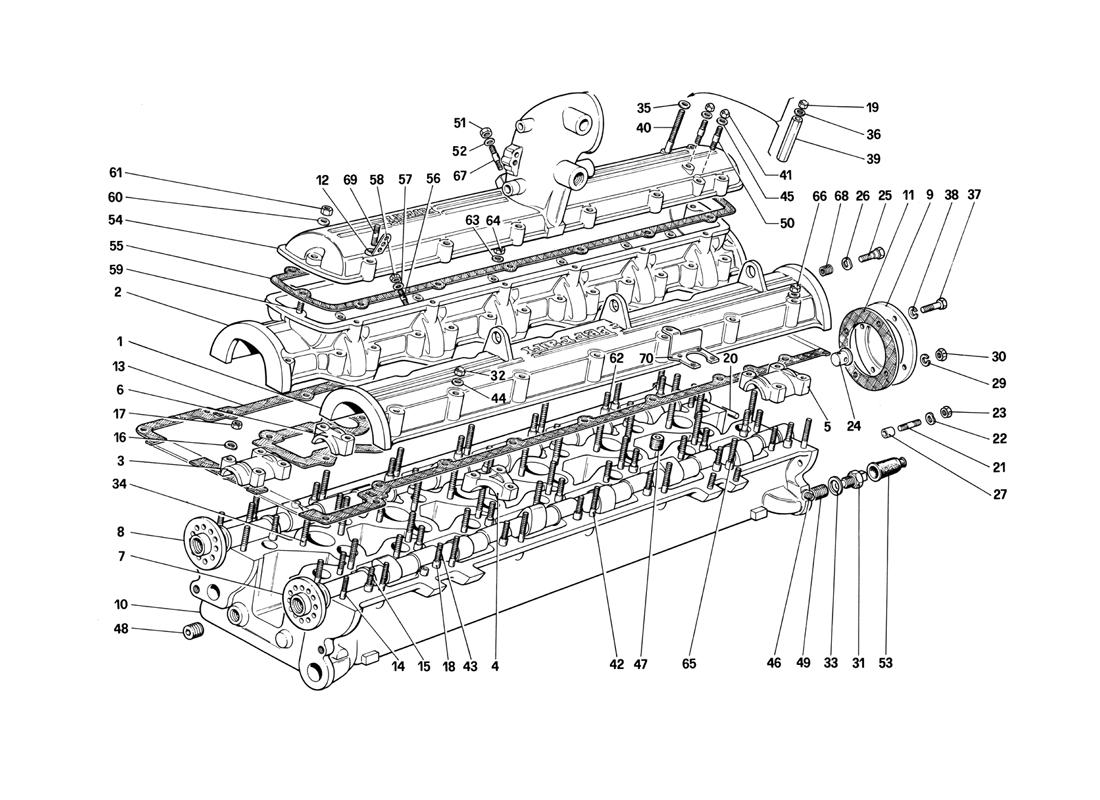

CYLINDER HEAD (RIGHT)

CYLINDER HEAD (RIGHT)

Location Part # Quantity* Description Price Add To Cart
1 125154 1 Inner cover for R.H. head $924.71
1 113939 1 Outer cover for R.H. head complete $2,376.30
2 113284 1 Outer cover
With assembly no. 113939
Unavailable
3 100228 2 Front cap
With cylinder head complete no. 126510
Unavailable
3 125434 2 Front cap
With cylinder head complete no. 127958
Unavailable
4 100226 5 Intermediate cap
With cylinder head complete no. 126511
Unavailable
4 125432 5 Intermediate cap
With cylinder head complete no. 127959
Unavailable
5 100229 2 Rear cap
With cylinder head complete no. 126512
Unavailable
5 125435 2 Rear cap
With cylinder head complete no. 127960
Unavailable
6 100227 5 Intermediate cap
With cylinder head complete no. 126513
Unavailable
6 125433 5 Intermediate cap
With cylinder head complete no. 127961
Unavailable
7 129309 1 Right intake camshaft complete
For CH - Up to engine No. 127
$1,731.47
7 126450 1 Right intake camshaft. complete
Not for CH - Up to engine No. 127
$2,552.44
7 129227 1 Right intake camshaft complete
For CH - From engine No. 128
$1,987.15
7 129211 1 Right intake camshaft complete
Not for CH - From engine No. 128
$2,352.18
8 126452 1 Right exhaust camshaft complete
Up to engine No. 127
$2,211.56
8 129215 1 Right exhaust camshaft complete
From engine No. 128
$2,721.44
9 125173 1 Rear cover $239.24
10 125152 1 Right cylinder head. complete
From engine No. 128
$14,896.32
10 125277 1 Right cylinder head
With assembly no. 125152
Unavailable
10 126924 1 Right cylinder head
With assembly no. 127958
Unavailable
10 126508 1 Right cylinder head
With assembly no. 126510
Unavailable
10 126510 1 Right cylinder head complete
Up to engine No. 127
$9,796.98
10 127958 1 Right cylinder head. complete
ForCH
$8,568.77
11 125174 1 Gasket Superseded
12 127532 3 Bracket $22.47
13 113567 1 Gasket Superseded
14 102735 37 Stud Unavailable
15 104188 4 Stud Unavailable
16 11197773 41 Washer Superseded
17 15896211 41 Nut Superseded
18 102725 28 Centering dowel $1.36
19 101239 1 Nut $2.44
20 13938070 2 Driving pin
Only for plug no. 126541
Unavailable
21 11500221 4 Stud Unavailable
22 11197773 4 Washer Superseded
23 15896211 4 Nut Superseded
24 10269750 1 Plug
From engine No. 128
$1.93
24 126541 1 Plug
Up to engine No. 127
$40.92
25 10902321 2 Bolt Superseded
26 11197773 2 Washer Superseded
27 102725 2 Centering dowel $1.36
28 11500321 2 Stud Unavailable
29 12601271 2 Washer Superseded
30 101239 1 Nut $2.44
31 100453 1 Thermistor $29.29
32 101239 27 Nut $2.44
33 10257060 1 Gasket $0.90
34 13541921 18 Stud Superseded
35 12601271 2 Washer Superseded
36 12643701 2 Washer Superseded
37 10902321 2 Bolt Superseded
38 11197773 2 Washer Superseded
39 113916 1 Spacer $20.77
40 13952011 1 Stud. securing by-pass valve $2.03
41 101239 2 Nut $2.44
42 104185 12 Stud $32.42
43 102935 1 Stud on dowel $2.29
44 12601271 28 Washer Superseded
45 12601271 2 Washer Superseded
46 14326050 3 Plug. oil ducts for RH and LH heads $1.66
47 14325040 3 Plug $5.44
48 14325240 2 Plug $5.99
49 111352 1 Heli-coil Unavailable
50 11500021 2 Stud Superseded
51 101239 2 Nut $2.44
52 10519401 2 Washer Superseded
53 101505 1 Cap for thermistor $71.62
54 126545 1 Upper cover
With assembly no. 126544
Unavailable
54 126544 1 Upper cover with complete throttle body $2,791.07
55 113572 1 Gasket Superseded
56 11499921 12 Stud Superseded
57 11197771 12 Washer Superseded
58 15896221 12 Nut Superseded
59 11500821 11 Stud Unavailable
60 12601271 14 Washer Superseded
61 101239 14 Nut $2.44
62 13542021 1 Stud on dowel $1.32
63 10297760 6 Washer $0.90
64 12574211 6 Nut Superseded
65 102935 1 Stud $2.29
66 12574211 1 Nut Superseded
67 13540721 2 Stud Superseded
68 13525470 2 Heli-coil Unavailable
69 11501021 3 Stud Unavailable
70 121150 1 Bracket $18.23

* Quantity shown indicates the number of pieces used in the diagram.
