ABS

ABS

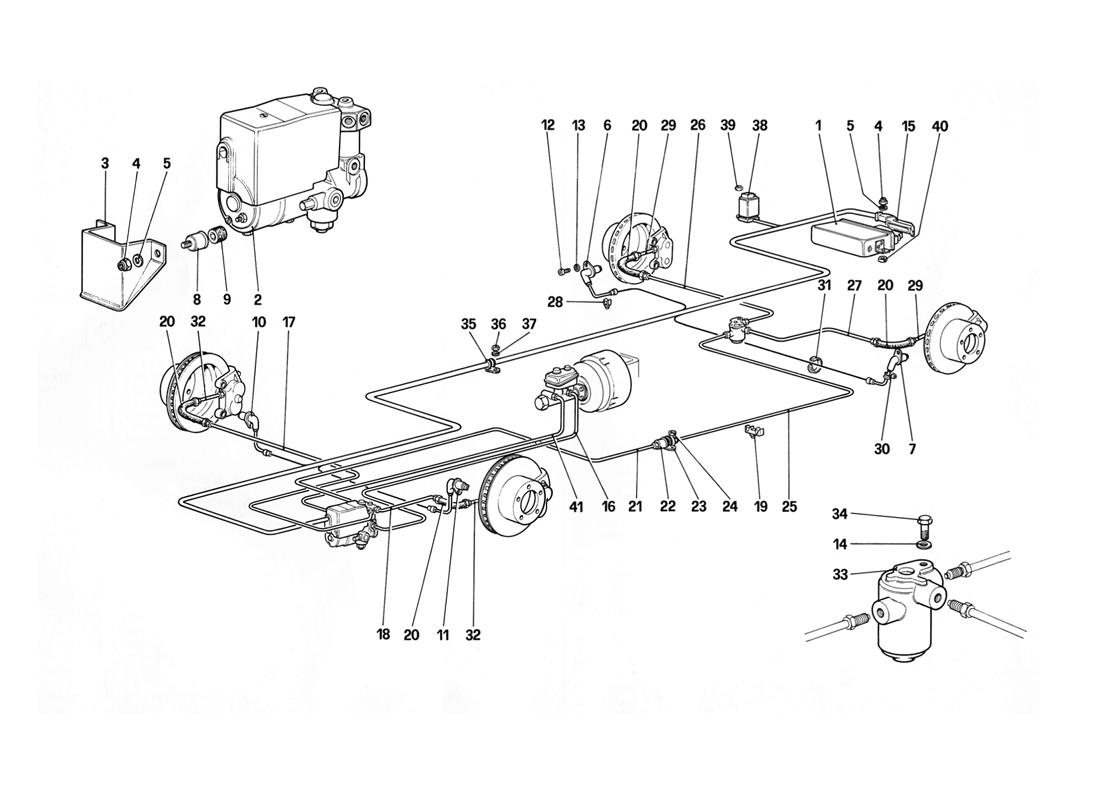

Location Part # Quantity* Description Price Add To Cart
1 126057 1 Electronic control unit for A.B.S. $1,378.88
2 126056 1 Idraulic control unit for A.B.S. $3,866.26
3 127624 1 Shield panel $161.63
4 12574211 5 Selflocking nut Superseded
5 14496401 5 Washer Superseded
6 126058 1 Sensor. rear R.H. $236.39
7 126059 1 Sensor. rear L.H. $116.06
8 127614 3 Cup $2.50
9 127613 3 Pad $3.05
10 126112 1 Sensor/front R.H. $221.96
11 126113 1 Sensor. front L.H. $111.56
12 14305121 4 Screw Unavailable
13 12601271 4 Washer Superseded
14 106852 1 Washer Superseded
15 124372 1 Cable for A.B.S. $1,860.74
16 118611 1 Pipe from pump to front control unit
For RHD use no. 128784
$8.67
17 127467 1 Pipe from control unit to hose R.H. front $14.23
18 118611 1 Pipe from control unit to hose L.H. front $8.67
19 127515 3 Clip Unavailable
19 127516 3 Clip Unavailable
20 116373 4 Hose Superseded
21 106970 1 Pipe from control unit to 2 way union $17.34
22 127505 1 2 way union $14.45
23 10441490 1 Strap Unavailable
24 12574211 1 Nut Superseded
25 101408 1 Pipe from 2 way union to pressure regulator $57.96
26 101407 1 Pipe from pressure regulator to right hose Unavailable
27 107366 1 Pipe from pressure regulator to left hose $15.10
28 128292 4 Clip Unavailable
29 106671 2 Pipe from hose to rear caliper Superseded
30 10450090 2 Strap $2.72
31 111193 2 Strap Superseded
32 101395 2 Pipe from hose to front caliper Superseded
33 110833 1 Pressure regulator $630.96
34 16043021 1 Screw Unavailable
35 10441790 6 Bracket $0.90
35 10441490 2 Bracket Unavailable
36 12574211 8 Nut Superseded
37 12639701 8 Washer Unavailable
38 61766200 1 Relay $160.00
39 13831801 1 Nut Unavailable
40 61286900 4 Spacer $7.96
41 118611 1 Pipe from pump to rear control unit
For RHD use no. 128783
$8.67

* Quantity shown indicates the number of pieces used in the diagram.
