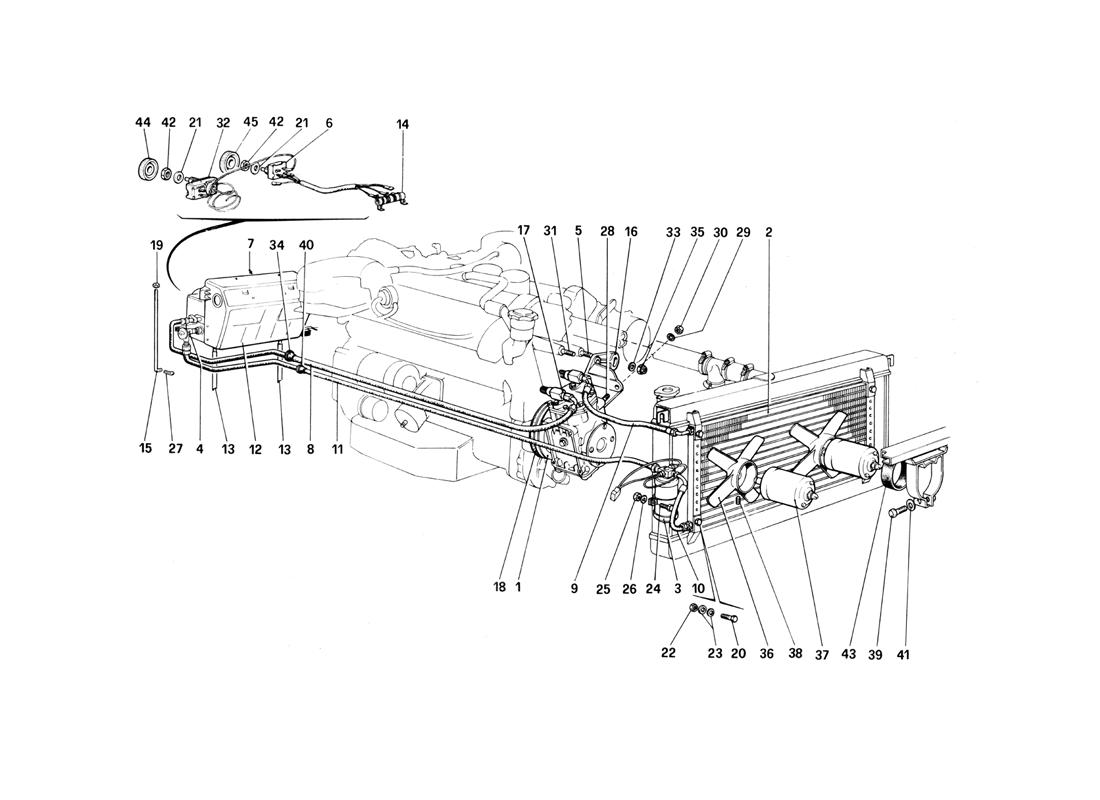

AIR CONDITIONING SYSTEM

Go to Split View

AIR CONDITIONING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 100473 *Qty: 1 Giunto con rotazione antioraria $576.33
Location: 2 Prev | Next Part: 101938 *Qty: 1 Condensatore Unavailable
Location: 3 Prev | Next Part: 114730 *Qty: 1 Filtro disidratatore completo di pressostati Superseded
Location: 4 Prev | Next Part: 110084 *Qty: 1 Valvola espansione Superseded
Location: 4 Prev | Next Part: 107216 *Qty: 1 Anello di tenuta per valvola $4.42
Location: 5 Prev | Next Part: 13450121 *Qty: 1 THREADED STUD Superseded
Location: 6 Prev | Next Part: 101990 *Qty: 1 Commutatore Unavailable
Location: 7 Prev | Next Part: 101983 *Qty: 1 Gruppo ventole $690.86
Location: 8 Prev | Next Part: 111336 *Qty: 1 Tubo per Freon ? 5 / 8" per RHD $236.22
Location: 8 Prev | Next Part: 107136 *Qty: 1 Tubo per Freon ? 5 / 8" per GS $311.83
Location: 9 Prev | Next Part: 107137 *Qty: 1 Tubo per Freon ? 1 / 2" $183.73
Location: 10 Prev | Next Part: 107134 *Qty: 1 Tubo per Freon ? 3 /8" $124.94
Location: 11 Prev | Next Part: 114750 *Qty: 1 Tubo per Freon ? 3 / 8" per RHD $191.93
Location: 11 Prev | Next Part: 114729 *Qty: 1 Tubo per Freon ? 3 / 8" per GS $187.32
Location: 12 Prev | Next Part: 120345 *Qty: 1 Condizionatore
Col complessivo n. 119573
Unavailable
Location: 12 Prev | Next Part: 119573 *Qty: 1 Gruppo condizionatore completo $1,479.32
Location: 13 Prev | Next Part: 101996 *Qty: 2 Tubo scarico condensa Unavailable
Location: 14 Prev | Next Part: 107142 *Qty: 1 Resistenza per commutatore $48.94
Location: 15 Prev | Next Part: 101568 *Qty: 2 Tirante fissaggio evaporatore $10.09
Location: 16 Prev | Next Part: 100459 *Qty: 1 Supporto compressore $382.16
Location: 17 Prev | Next Part: 106607 *Qty: 1 Compressore A. C. Superseded
Location: 18 Prev | Next Part: 100475 *Qty: 2 Cinghia compressore $29.21
Location: 19 Prev | Next Part: 12574211 *Qty: 2 Dado Superseded
Location: 20 Prev | Next Part: 10903021 *Qty: 4 Bullone Superseded
Location: 21 Prev | Next Part: 107144 *Qty: 2 Rondella $11.31
Location: 22 Prev | Next Part: 12574211 *Qty: 4 Dado Superseded
Location: 23 Prev | Next Part: 12643701 *Qty: 8 Rondella Superseded
Location: 24 Prev | Next Part: 10902621 *Qty: 1 Bullone Superseded
Location: 25 Prev | Next Part: 15896211 *Qty: 1 Dado Superseded
Location: 26 Prev | Next Part: 106850 *Qty: 1 Rondella Superseded
Location: 27 Prev | Next Part: 10795701 *Qty: 2 Copiglia $0.90
Location: 28 Prev | Next Part: 100472 *Qty: 3 THREADED STUD $14.29
Location: 29 Prev | Next Part: 12638601 *Qty: 3 Rondella $0.90
Location: 30 Prev | Next Part: 12574521 *Qty: 3 Dado $0.90
Location: 31 Prev | Next Part: 13450021 *Qty: 2 THREADED STUD $0.90
Location: 32 Prev | Next Part: 105910 *Qty: 1 Termostato tarato Superseded
Location: 33 Prev | Next Part: 13550421 *Qty: 3 Rondella $0.90
Location: 34 Prev | Next Part: 102250 *Qty: 1 Cappuccio sul parafiamma per tubo evaporatore - compressore $8.63
Location: 35 Prev | Next Part: 12574521 *Qty: 3 Dado autobloccante $0.90
Location: 36 Prev | Next Part: 119448 *Qty: 2 Ventola a 4 pale $130.19
Location: 37 Prev | Next Part: 119447 *Qty: 2 Motorino elettroventilatore $329.43
Location: 38 Prev | Next Part: 13804521 *Qty: 2 Grano Unavailable
Location: 39 Prev | Next Part: 10902621 *Qty: 2 Bullone Superseded
Location: 40 Prev | Next Part: 102251 *Qty: 1 Cappuccio sul parafiamma per tubo depuratore - evaporatore $11.35
Location: 41 Prev | Next Part: 106850 *Qty: 2 Rondella Superseded
Location: 42 Prev | Next Part: 105911 *Qty: 2 Dado $4.02
Location: 43 Prev | Next Part: 111872 *Qty: 2 Anello antivibrante $6.32
Location: 44 Prev | Next Part: 119575 *Qty: 1 Pomello per termostato $7.99
Location: 45 Prev | Next Part: 61112400 *Qty: 1 Pomello per commutatore $101.93

* Quantity shown indicates the number of pieces used in the diagram.
