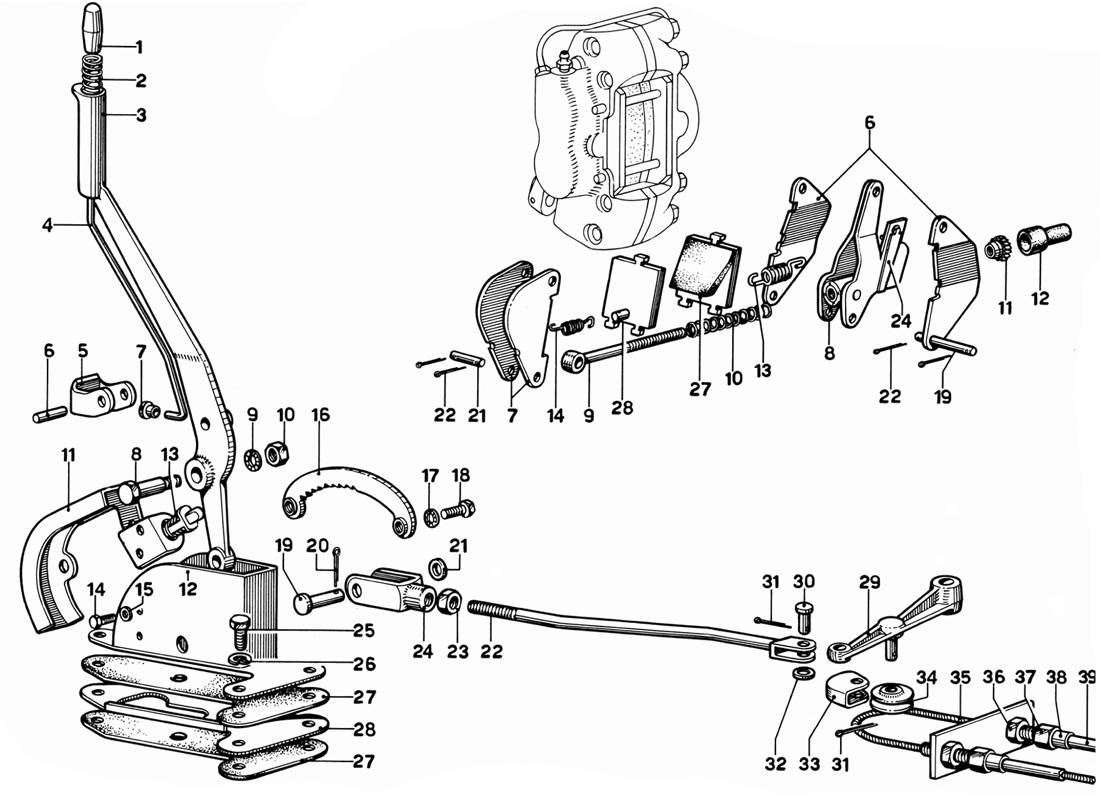

HAND-BRAKE CONTROL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 1420 *Qty: 1 Complessivo leva freno a mano, con spia Unavailable
Location: 1 Prev | Next Part: 64320588 *Qty: 1 Complessivo freno a mano S Unavailable
Location: 1 Prev | Next Part: 680227 *Qty: 1 Pulsante Unavailable
Location: 2 Prev | Next Part: 64320589 *Qty: 1 Complessivo freno a mano D Unavailable
Location: 2 Prev | Next Part: 680228 *Qty: 1 Spring Unavailable
Location: 3 Prev | Next Part: 680355 *Qty: 1 LEVER Unavailable
Location: 4 Prev | Next Part: 680424 *Qty: 1 Tie Rod Unavailable
Location: 5 Prev | Next Part: 680229 *Qty: 1 Gancio arresto leva Unavailable
Location: 6 Prev | Next Part: 64326338 *Qty: 2 Complessivo leva esterna dibloccaggio Unavailable
Location: 6 Prev | Next Part: 94816 *Qty: 1 Pin $1.64
Location: 7 Prev | Next Part: 680445 *Qty: 1 Cappuccio per interruttore Unavailable
Location: 7 Prev | Next Part: 64326337 *Qty: 2 Complessivo leva interna dibloccaggio Unavailable
Location: 8 Prev | Next Part: 64326342 *Qty: 2 Complessivo leva di comando Unavailable
Location: 8 Prev | Next Part: 680230 *Qty: 1 Pivot Unavailable
Location: 9 Prev | Next Part: 64320579 *Qty: 2 Tie Rod Unavailable
Location: 9 Prev | Next Part: 680233 *Qty: 1 Washer Unavailable
Location: 10 Prev | Next Part: 680234 *Qty: 1 Nut Superseded
Location: 10 Prev | Next Part: 64320580 *Qty: 2 Spring Unavailable
Location: 11 Prev | Next Part: 69523 *Qty: 1 Cover Unavailable
Location: 11 Prev | Next Part: 64326238 *Qty: 2 Nut Unavailable
Location: 12 Prev | Next Part: 64326239 *Qty: 2 Cappuccio gomma Unavailable
Location: 12 Prev | Next Part: 680423 *Qty: 1 Scatola Unavailable
Location: 13 Prev | Next Part: - *Qty: 1 Interruttore con supporto Unavailable
Location: 13 Prev | Next Part: 64325754 *Qty: 2 Spring Unavailable
Location: 14 Prev | Next Part: 4x10 *Qty: 2 Screw Unavailable
Location: 14 Prev | Next Part: 64326241 *Qty: 2 Spring Unavailable
Location: 15 Prev | Next Part: Reg4 *Qty: 2 Washer Unavailable
Location: 16 Prev | Next Part: 69677 *Qty: 1 Settore dentato $24.80
Location: 17 Prev | Next Part: 680232 *Qty: 2 Washer Superseded
Location: 18 Prev | Next Part: 680231 *Qty: 2 Bolt Unavailable
Location: 19 Prev | Next Part: 64326242 *Qty: 2 Pivot Unavailable
Location: 19 Prev | Next Part: 69525 *Qty: 1 Pivot Superseded
Location: 20 Prev | Next Part: C1 *Qty: 1 Split Pin Unavailable
Location: 21 Prev | Next Part: 64326243 *Qty: 2 Pivot Unavailable
Location: 21 Prev | Next Part: 680233 *Qty: 1 Washer Unavailable
Location: 22 Prev | Next Part: 64150079 *Qty: 4 Split Pin Unavailable
Location: 22 Prev | Next Part: 680336 *Qty: 1 Tie Rod Unavailable
Location: 23 Prev | Next Part: 10x1.25 Un *Qty: 1 Locknut Unavailable
Location: 24 Prev | Next Part: 680337 *Qty: 1 Assieme tirante freno Unavailable
Location: 24 Prev | Next Part: 680235 *Qty: 1 FORK Unavailable
Location: 24 Prev | Next Part: 64326345 *Qty: 2 Spring Unavailable
Location: 25 Prev | Next Part: 95196 *Qty: 3 Bolt Unavailable
Location: 26 Prev | Next Part: Reg 8 *Qty: 3 Washer Unavailable
Location: 27 Prev | Next Part: 64326340 *Qty: 1 Complessivo pastiglia sinistra Unavailable
Location: 27 Prev | Next Part: 69530 *Qty: 2 Rubber Gasket $7.35
Location: 28 Prev | Next Part: 69529 *Qty: 1 Contenitore $33.18
Location: 28 Prev | Next Part: 64326341 *Qty: 1 Complessivo pastiglia destra Unavailable
Location: 29 Prev | Next Part: 680371 *Qty: 1 LEVER Unavailable
Location: 30 Prev | Next Part: 94626 *Qty: 3 Pivot $2.04
Location: 31 Prev | Next Part: C1 *Qty: 4 Split Pin Unavailable
Location: 32 Prev | Next Part: 680233 *Qty: 3 Washer Unavailable
Location: 33 Prev | Next Part: 69395 *Qty: 1 Guida per cavo Unavailable
Location: 34 Prev | Next Part: 69153 *Qty: 1 Carrucola Superseded
Location: 35 Prev | Next Part: 94885 *Qty: 1 Cavo Bowden 0 mm. 4 x mm. 3800 Unavailable
Location: 36 Prev | Next Part: 10x1,25 UN *Qty: 2 Locknut Unavailable
Location: 37 Prev | Next Part: 680372 *Qty: 2 Registro guaina Unavailable
Location: 38 Prev | Next Part: 94886 *Qty: 4 Ghiera per guaina $3.80
Location: 39 Prev | Next Part: 92939 *Qty: 4 Guaina ? mm. 5x8,5x3400 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
