GEAR BOX

Go to Split View

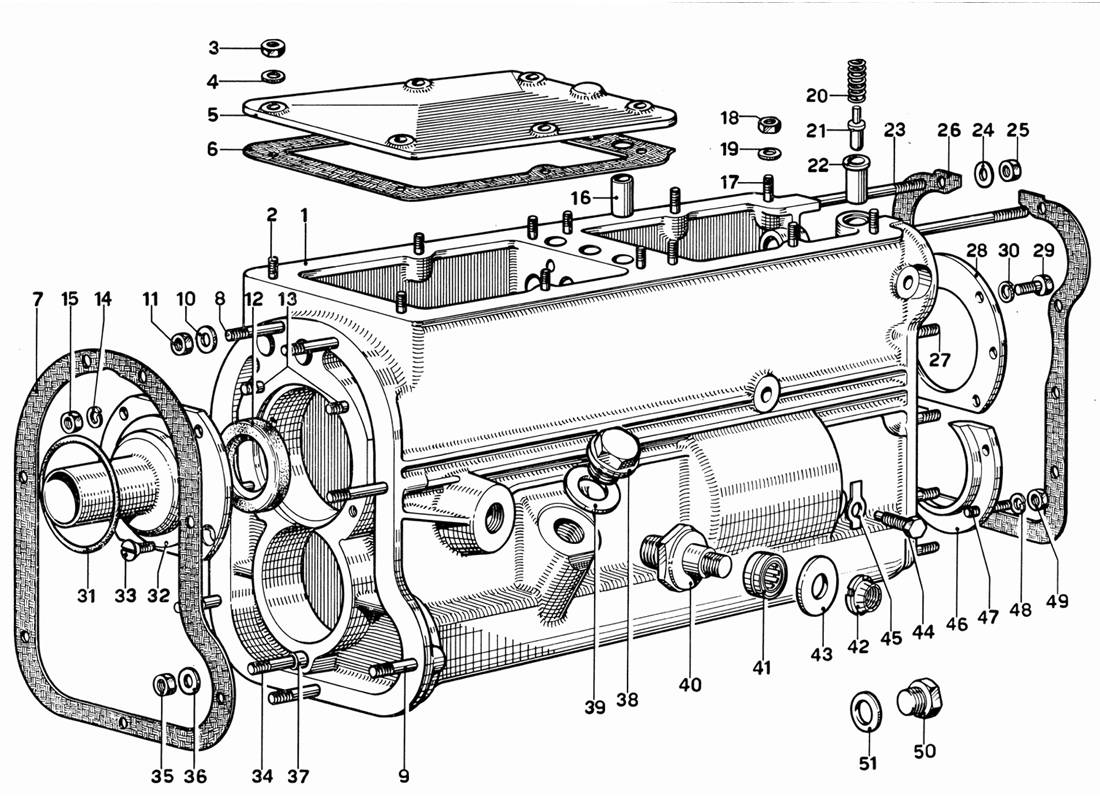

GEAR BOX

Location Part # Quantity* Description Price Add To Cart
1 1212 1 Complessivo combio Unavailable
1 521219 6 Scatola cambio Unavailable
2 P 1 6 Stud Unavailable
3 6x1uryf55a 6 Nut Unavailable
4 REO 6 1 Washer Unavailable
5 520854 1 Cover Unavailable
6 53047 1 GASKET $22.38
7 520622 5 GASKET $6.29
8 P 2 2 Stud Unavailable
9 P 2 7 Short Threaded Stud Unavailable
10 REO 8 7 Washer Unavailable
11 8x11UNI 55 1 Nut Unavailable
12 3252/7 3 Sealing Ring Unavailable
13 P 2 3 THREADED STUD Unavailable
14 REG B 3 Washer Unavailable
15 8x1UNI 558 3 Nut Unavailable
16 521255 6 Bush Unavailable
17 P 1 6 Short Threaded Stud Unavailable
18 6x1UNI 558 6 Nut Unavailable
19 REO 6 1 Washer Unavailable
20 53684 1 Spring Unavailable
21 520846 1 Pivot Unavailable
22 520847 2 Bush Unavailable
23 95012 10 Long Threaded Stud Unavailable
24 REO 8 10 Washer Unavailable
25 8x11UNI 55 1 Nut Unavailable
26 520808 8 GASKET Unavailable
27 P2 1 Short Threaded Stud Unavailable
28 521220 6 Copercho per cuscinetto Unavailable
29 - 6 Bolt Unavailable
30 REG6 1 Washer Unavailable
31 167 1 Sealing Ring Unavailable
32 521755 1 Flangia con manicotto Unavailable
33 1 VR 8x15 1 Screw Unavailable
34 P2 1 THREADED STUD Unavailable
35 8x1UNI 558 1 Nut Unavailable
36 REO 8 1 Washer Unavailable
37 SGC1 1 Centering Dowel Unavailable
38 22TF1 1 Plug Unavailable
39 22GR2 1 GASKET Unavailable
40 500495 1 Pivot Unavailable
41 RNA4902 PP 1 Gabbia con rulli Unavailable
42 15 MC 1 Nut Unavailable
43 500496 1 Washer Superseded
44 521325 1 Bolt Unavailable
45 92363 1 PLATE Superseded
46 521221 4 Cover Unavailable
47 P1 4 THREADED STUD Unavailable
48 REG6 4 Washer Unavailable
49 6x1UNI5588 1 Nut Unavailable
50 - 1 Tappo scarico olio Unavailable
51 - 1 GASKET Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
