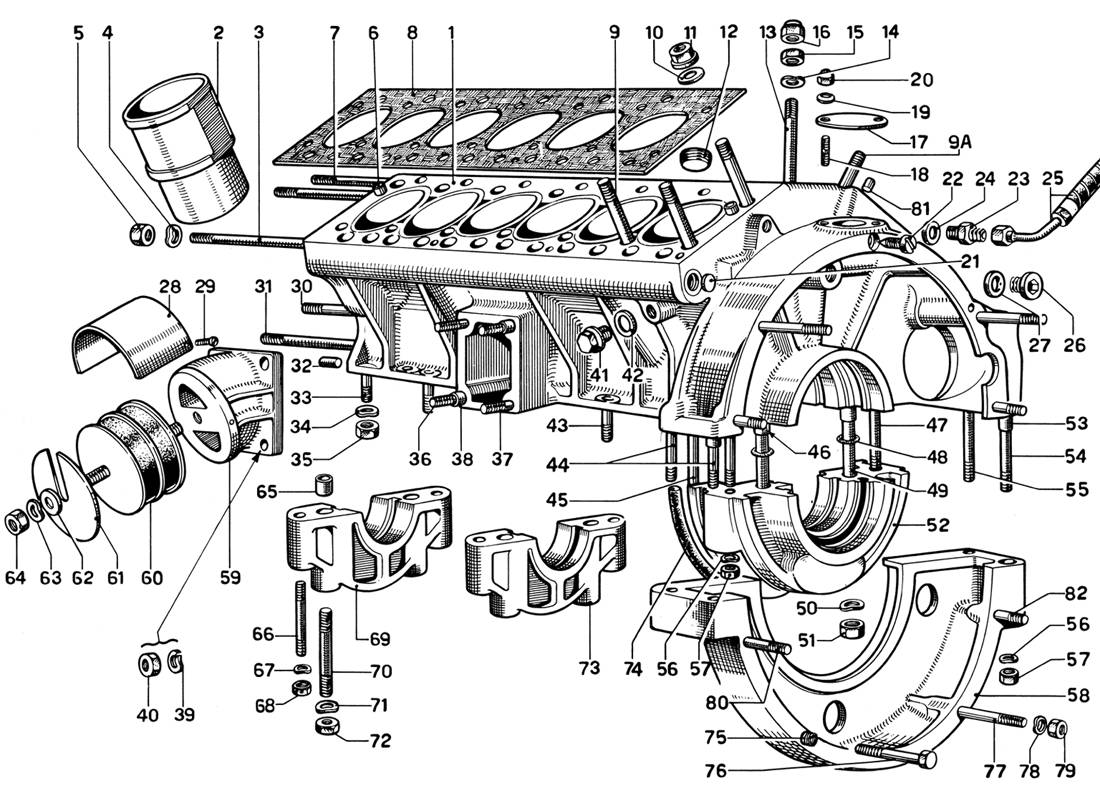

CRANKCASE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 100507 *Qty: 1 Basamento Unavailable
Location: 2 Prev | Next Part: 100560 *Qty: 12 2 maggiorazione Unavailable
Location: 2 Prev | Next Part: 100560 *Qty: 12 1 maggiorazione Unavailable
Location: 2 Prev | Next Part: 100560 *Qty: 12 Canna cilindro (0 normale) Unavailable
Location: 3 Prev | Next Part: P2 *Qty: 2 THREADED STUD Unavailable
Location: 4 Prev | Next Part: REO 8 *Qty: 6 Washer Unavailable
Location: 5 Prev | Next Part: 8 x 1 UNI *Qty: 6 Nut Unavailable
Location: 6 Prev | Next Part: 94615 *Qty: 3 CENTERING DOWEL $15.22
Location: 7 Prev | Next Part: P2 *Qty: 1 THREADED STUD Unavailable
Location: 8 Prev | Next Part: 100504 *Qty: 2 Gasket or Seal $62.98
Location: 9 Prev | Next Part: 100505 *Qty: 27 Stud Unavailable
Location: 9 Prev | Next Part: 100506 *Qty: 1 Stud $14.72
Location: 10 Prev | Next Part: 95242 *Qty: 28 Washer Superseded
Location: 11 Prev | Next Part: 95241 *Qty: 28 Nut $29.66
Location: 12 Prev | Next Part: 95124 *Qty: 3 Tappo conico Superseded
Location: 13 Prev | Next Part: 95171 *Qty: 6 Stud Unavailable
Location: 14 Prev | Next Part: REO 10 *Qty: 6 Washer Unavailable
Location: 15 Prev | Next Part: 10x1,25UN1 *Qty: 1 Nut Unavailable
Location: 16 Prev | Next Part: 110 x 1,25 *Qty: 5 Nut Unavailable
Location: 17 Prev | Next Part: 10788 *Qty: 1 Coperchietto ispezione Superseded
Location: 18 Prev | Next Part: P1 *Qty: 2 THREADED STUD Unavailable
Location: 19 Prev | Next Part: RC 6 *Qty: 2 Washer Unavailable
Location: 20 Prev | Next Part: 106 MA *Qty: 2 Nut Unavailable
Location: 21 Prev | Next Part: T e 20 *Qty: 4 Expansion Plug Unavailable
Location: 22 Prev | Next Part: 10787 *Qty: 1 Indice fasatura . Unavailable
Location: 23 Prev | Next Part: 93444 *Qty: 1 UNION Unavailable
Location: 24 Prev | Next Part: 94385 *Qty: 1 Gasket or Seal $2.09
Location: 25 Prev | Next Part: 240042 *Qty: 1 Complessivo tubo olio Unavailable
Location: 26 Prev | Next Part: 94858 *Qty: 2 Plug Superseded
Location: 27 Prev | Next Part: 94191 *Qty: 2 GASKET Unavailable
Location: 28 Prev | Next Part: 100513 *Qty: 2 Lamiera protezione tampone Unavailable
Location: 29 Prev | Next Part: 4P x 9,5 T *Qty: 4 Screw Unavailable
Location: 30 Prev | Next Part: P2 *Qty: 1 THREADED STUD Unavailable
Location: 31 Prev | Next Part: P2 *Qty: 1 THREADED STUD Unavailable
Location: 32 Prev | Next Part: 94617 *Qty: 1 Grano di centraggio . Superseded
Location: 33 Prev | Next Part: P2 *Qty: 2 Stud Unavailable
Location: 34 Prev | Next Part: REO 8 *Qty: 14 Washer Unavailable
Location: 35 Prev | Next Part: 8x1UNI5588 *Qty: 14 Nut Unavailable
Location: 36 Prev | Next Part: 95173 *Qty: 4 Stud $5.45
Location: 37 Prev | Next Part: 95174 *Qty: 4 Stud $8.83
Location: 38 Prev | Next Part: 95006 *Qty: 4 CENTERING DOWEL Unavailable
Location: 39 Prev | Next Part: REG 10 *Qty: 8 Washer Unavailable
Location: 40 Prev | Next Part: 10x1,25UN1 *Qty: 8 Nut Unavailable
Location: 41 Prev | Next Part: 16 TF 1 *Qty: 2 Tappo scarico acqua Unavailable
Location: 42 Prev | Next Part: 16 TR 2 *Qty: 2 GASKET Unavailable
Location: 43 Prev | Next Part: P2 *Qty: 10 Stud Unavailable
Location: 44 Prev | Next Part: P2 *Qty: 2 Stud Unavailable
Location: 45 Prev | Next Part: P2 *Qty: 2 Long Threaded Stud Unavailable
Location: 45 Prev | Next Part: - *Qty: 2 pa al basamento Unavailable
Location: 46 Prev | Next Part: 94379 *Qty: 2 CENTERING DOWEL Superseded
Location: 47 Prev | Next Part: P6 *Qty: 2 Stud Unavailable
Location: 48 Prev | Next Part: 114 *Qty: 4 Seal Unavailable
Location: 49 Prev | Next Part: 95167 *Qty: 2 Stud Unavailable
Location: 50 Prev | Next Part: REO 12 *Qty: 2 Washer Unavailable
Location: 51 Prev | Next Part: 12 x 1,25 *Qty: 2 Nut Unavailable
Location: 52 Prev | Next Part: 100211 *Qty: 1 Support Unavailable
Location: 53 Prev | Next Part: SGC1 *Qty: 2 Centering Dowel Unavailable
Location: 54 Prev | Next Part: P2 *Qty: 1 THREADED STUD Unavailable
Location: 55 Prev | Next Part: 94850 *Qty: 1 Stud Unavailable
Location: 56 Prev | Next Part: REO 8 *Qty: 6 Washer Unavailable
Location: 57 Prev | Next Part: 8 x 1 UNI *Qty: 6 Nut Unavailable
Location: 58 Prev | Next Part: 100318 *Qty: 1 Flangia attacco frizione Unavailable
Location: 59 Prev | Next Part: 100383 *Qty: 2 Zampa sostegno basamento Unavailable
Location: 60 Prev | Next Part: 10983 *Qty: 2 Tampone sospensione motore Superseded
Location: 61 Prev | Next Part: 100339 *Qty: 4 Spessore per tampone Unavailable
Location: 62 Prev | Next Part: 93300 *Qty: 2 WASHER Unavailable
Location: 63 Prev | Next Part: REG 10 *Qty: 2 Washer Unavailable
Location: 64 Prev | Next Part: 10x1,25UN1 *Qty: 2 Nut Unavailable
Location: 65 Prev | Next Part: 94379 *Qty: 12 CENTERING DOWEL Superseded
Location: 66 Prev | Next Part: P6 *Qty: 12 Stud Unavailable
Location: 67 Prev | Next Part: REO 8 *Qty: 12 Washer Unavailable
Location: 68 Prev | Next Part: 8 x1 uNl55 *Qty: 12 Nut Unavailable
Location: 69 Prev | Next Part: 100028 *Qty: 1 Support $19.74
Location: 70 Prev | Next Part: 95166 *Qty: 12 Stud Unavailable
Location: 71 Prev | Next Part: REO 12 *Qty: 12 Washer Unavailable
Location: 72 Prev | Next Part: 12x1,25UN1 *Qty: 12 Nut Unavailable
Location: 73 Prev | Next Part: 100027 *Qty: 5 Support Unavailable
Location: 74 Prev | Next Part: 100026 *Qty: 1 Guarnizioni gomma Unavailable
Location: 75 Prev | Next Part: BBF2 *Qty: 1 Bussola filettata Unavailable
Location: 76 Prev | Next Part: 8 x 50 UNI *Qty: 1 Bolt Unavailable
Location: 77 Prev | Next Part: P 2 *Qty: 3 THREADED STUD Unavailable
Location: 78 Prev | Next Part: REO 8 *Qty: 8 Ronde!la Unavailable
Location: 79 Prev | Next Part: 8 x 1 UNI5 *Qty: 8 Nut Unavailable
Location: 80 Prev | Next Part: P 2 *Qty: 1 THREADED STUD Unavailable
Location: 81 Prev | Next Part: 95079 *Qty: 1 Grano per testa destra . Superseded
Location: 82 Prev | Next Part: P 2 *Qty: 3 Stud Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
