BRAKE SYSTEM SCHEME

Go to Split View

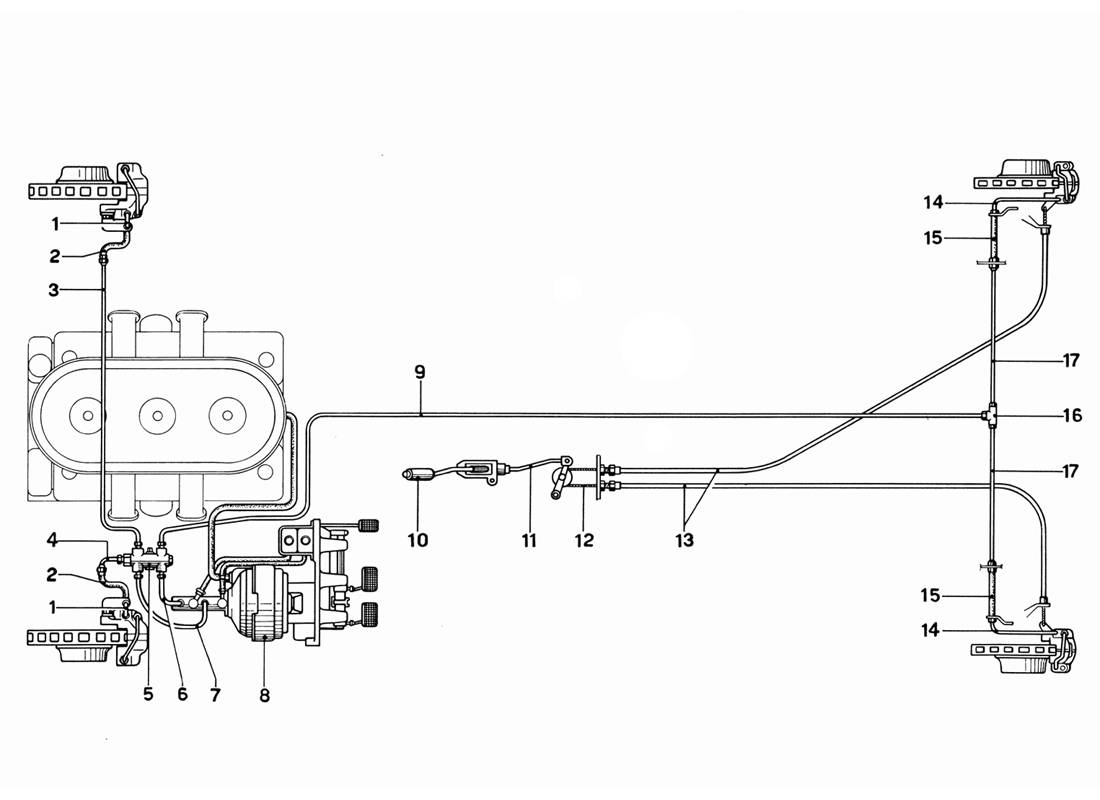

BRAKE SYSTEM SCHEME

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 680453 *Qty: 2 Tubo dal flessibile al caliper anteriore Unavailable
Location: 2 Prev | Next Part: 64047362 *Qty: 2 Flexible Pipe Unavailable
Location: 3 Prev | Next Part: 680452 *Qty: 1 Tubo dallapparecchio controllo pressione al flessibile D. Unavailable
Location: 4 Prev | Next Part: 680449 *Qty: 1 Tubo dallapparecchio controllo pressione al flessibile S Unavailable
Location: 5 Prev | Next Part: 64068644 *Qty: 1 Apparecchio controllo pressione olio del circuiti freno Unavailable
Location: 6 Prev | Next Part: 680454 *Qty: 1 Tubo dal servofreno allapparecchio di controllo Unavailable
Location: 7 Prev | Next Part: 680449 *Qty: 1 Tubo dal servofreno allapparecchio di controllo (ruote anteriori) Unavailable
Location: 8 Prev | Next Part: 14/05875 *Qty: 1 Brake Servo Bonaldi in tandem Unavailable
Location: 9 Prev | Next Part: 680454 *Qty: 1 Tubo dallapparecchio dicontrollo al 3 vie poster Unavailable
Location: 10 Prev | Next Part: 1420 *Qty: 1 Complessivo leva freno a mano Unavailable
Location: 11 Prev | Next Part: 680337 *Qty: 1 Assieme tirante freno Unavailable
Location: 12 Prev | Next Part: 94885 *Qty: 1 Cavo Bowden Unavailable
Location: 13 Prev | Next Part: 92939 *Qty: 1 Guaina per cavo Unavailable
Location: 14 Prev | Next Part: 680457 *Qty: 2 Tubo dal flessibile ai caliper posteriori da 121/2 Unavailable
Location: 15 Prev | Next Part: 64047358 *Qty: 2 Flexible Pipe Unavailable
Location: 16 Prev | Next Part: 64474341 *Qty: 1 UNION 3-way Unavailable
Location: 17 Prev | Next Part: 680455 *Qty: 2 Tubo dal 3 vie ai flessibili del caliper posteriori Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
