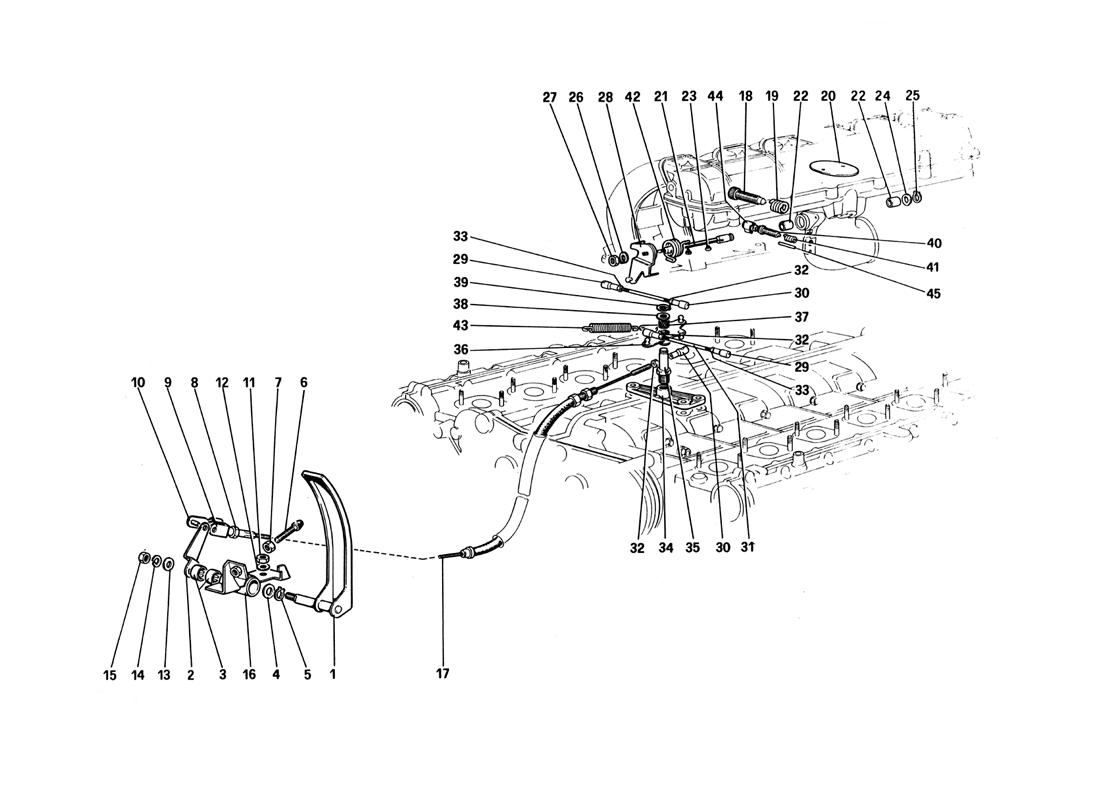

THROTTLE CONTROL

Go to Split View

THROTTLE CONTROL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 115393 *Qty: 1 Pedale acceleratore $372.74
Location: 2 Prev | Next Part: 115399 *Qty: 1 Leva $17.67
Location: 3 Prev | Next Part: 101677 *Qty: 2 Astuccio a rullini $2.18
Location: 4 Prev | Next Part: 108576 *Qty: 1 Rondella di rasamento $1.54
Location: 5 Prev | Next Part: 11066075 *Qty: 1 Anello seeger Unavailable
Location: 6 Prev | Next Part: 105232 *Qty: 1 Registro $5.35
Location: 7 Prev | Next Part: 16102311 *Qty: 1 Dado Superseded
Location: 8 Prev | Next Part: 10725911 *Qty: 1 Controdado Superseded
Location: 9 Prev | Next Part: 100655 *Qty: 1 Forcellino $152.60
Location: 10 Prev | Next Part: 100656 *Qty: 1 Perno con molletta $2.97
Location: 11 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 12 Prev | Next Part: 106852 *Qty: 2 Rondella Superseded
Location: 13 Prev | Next Part: 10519601 *Qty: 1 Distanziale Superseded
Location: 14 Prev | Next Part: 106852 *Qty: 1 Rondella Superseded
Location: 15 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 16 Prev | Next Part: 115396 *Qty: 1 Supporto pedale acceleratore $58.74
Location: 17 Prev | Next Part: 118005 *Qty: 1 Cavo commando acceleratore $90.80
Location: 18 Prev | Next Part: 113556 *Qty: 2 Vite regolazione aria $17.19
Location: 19 Prev | Next Part: 113571 *Qty: 2 Molla Unavailable
Location: 20 Prev | Next Part: 113563 *Qty: 2 Farfalla $248.47
Location: 21 Prev | Next Part: 113564 *Qty: 2 Alberino per farfalla $140.63
Location: 22 Prev | Next Part: 107443 *Qty: 4 Bussola Unavailable
Location: 23 Prev | Next Part: 115361 *Qty: 4 Vite $0.91
Location: 24 Prev | Next Part: 13550401 *Qty: 2 Rondella tranciata $0.90
Location: 25 Prev | Next Part: 11065976 *Qty: 2 Seeger Unavailable
Location: 26 Prev | Next Part: 113566 *Qty: 2 Rosetta di fermo $2.76
Location: 27 Prev | Next Part: 16102321 *Qty: 2 Dado Unavailable
Location: 28 Prev | Next Part: 117301 *Qty: 1 Leva comando farfalla Sx. $70.43
Location: 28 Prev | Next Part: 117299 *Qty: 1 Leva comando farfdlla Dx. $70.43
Location: 29 Prev | Next Part: 105619 *Qty: 2 Testina per perno sferico $112.93
Location: 30 Prev | Next Part: 105617 *Qty: 3 Testina per perno sferico Superseded
Location: 31 Prev | Next Part: 117309 *Qty: 2 Tirante per comando farfalle $8.83
Location: 32 Prev | Next Part: 15896411 *Qty: 3 Dado filetto Dx. Superseded
Location: 33 Prev | Next Part: 105586 *Qty: 2 Dadofiletto Sx. $4.72
Location: 34 Prev | Next Part: 117230 *Qty: 1 Supporto $148.24
Location: 35 Prev | Next Part: 103907 *Qty: 1 Perno Unavailable
Location: 36 Prev | Next Part: 117233 *Qty: 1 Leva per comando farfalle completa di boccola rullini $105.77
Location: 37 Prev | Next Part: 103921 *Qty: 1 Boccola a rullini $6.38
Location: 38 Prev | Next Part: 10730501 *Qty: 1 Rondella Superseded
Location: 39 Prev | Next Part: 11065976 *Qty: 1 Anello di fermo Unavailable
Location: 40 Prev | Next Part: 114366 *Qty: 2 Vite di registro $3.38
Location: 41 Prev | Next Part: 107824 *Qty: 2 Molla $1.29
Location: 42 Prev | Next Part: 113558 *Qty: 1 Molla per farfalla Dx. $19.67
Location: 42 Prev | Next Part: 113562 *Qty: 1 Molla per farfalla Sx. $2.04
Location: 43 Prev | Next Part: 102951 *Qty: 1 Molla richiamo leva $50.26
Location: 44 Prev | Next Part: 111182 *Qty: 2 Cappuccio inviolabilita $12.67
Location: 45 Prev | Next Part: 114367 *Qty: 2 Perno arresto cappuccio Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
