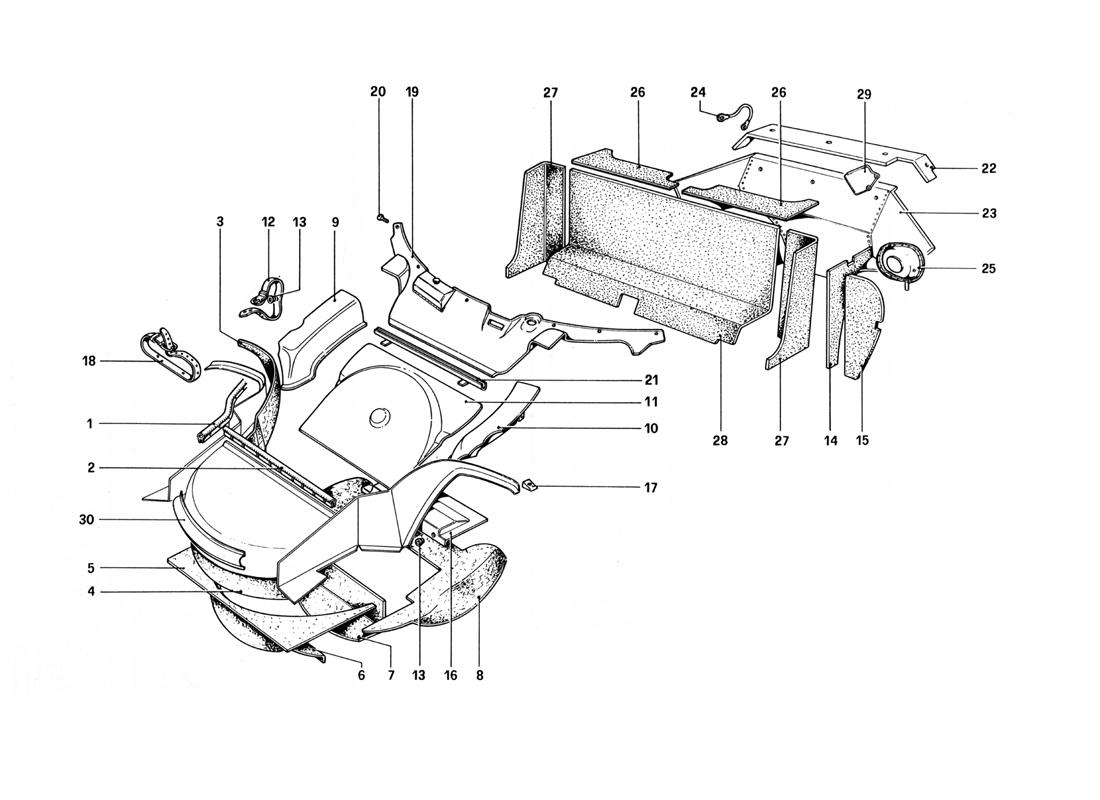

INSULATING MATERIAL AND BULKHEADS

Go to Split View

INSULATING MATERIAL AND BULKHEADS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60853000 *Qty: 2 Guarnizione late ale $11.35
Location: 2 Prev | Next Part: 50046309 *Qty: 1 Guarnizione cenfale $36.98
Location: 3 Prev | Next Part: 60853100 *Qty: 2 Rivestirhento latcrale $95.33
Location: 4 Prev | Next Part: 50042407 *Qty: 1 Rivestimento cemrale $155.83
Location: 5 Prev | Next Part: 50100700 *Qty: 1 Rivestimento vane ruota di scorta $104.38
Location: 6 Prev | Next Part: 50100403 *Qty: 1 Cuscino per vano trousse $108.36
Location: 7 Prev | Next Part: 50100809 *Qty: 1 Rivestimento per vano trousse $174.09
Location: 8 Prev | Next Part: 50042100 *Qty: 1 Rivestimento vano baule $144.91
Location: 9 Prev | Next Part: 60967100 *Qty: 1 Protezione tubi riscnldamento $203.06
Location: 10 Prev | Next Part: 60967200 *Qty: 1 Piotezione tubi riscaldamento $203.06
Location: 11 Prev | Next Part: 60988300 *Qty: 1 Coperchio ruota di scorta per GS Call
Location: 11 Prev | Next Part: 60988500 *Qty: 1 Coperchio ruota di stortti nor RHD $436.60
Location: 12 Prev | Next Part: 50101500 *Qty: 1 Cinghia bloccaggio ruota Call
Location: 13 Prev | Next Part: 30062608 *Qty: 1 Ghiera fissaggio cinghia $18.70
Location: 14 Prev | Next Part: 50072107 *Qty: 1 Isoiante Sx. Call
Location: 14 Prev | Next Part: 50072008 *Qty: 1 Isolante Dx. Call
Location: 15 Prev | Next Part: 50072206 *Qty: 1 Isolante Dx. Call
Location: 15 Prev | Next Part: 50072305 *Qty: 1 Isolante Sx. Call
Location: 16 Prev | Next Part: 50332600 *Qty: 1 Coperchio balleria Call
Location: 17 Prev | Next Part: 50155100 *Qty: 2 Terminate per guarnizione $3.16
Location: 18 Prev | Next Part: 50137306 *Qty: 1 Cinghia per valigetta Call
Location: 19 Prev | Next Part: 50348002 *Qty: 1 Paratia post. vano baule per RHD $517.62
Location: 19 Prev | Next Part: 50309509 *Qty: 1 Paratia post. vano baule per GS $646.75
Location: 20 Prev | Next Part: 20033007 *Qty: 3 Vite Call
Location: 21 Prev | Next Part: 50157106 *Qty: 1 Angolare per paratia baule $24.80
Location: 22 Prev | Next Part: 60853500 *Qty: 1 Protezione supei iore $249.89
Location: 23 Prev | Next Part: 60868900 *Qty: 1 Protezione inferiore $511.32
Location: 24 Prev | Next Part: 50161603 *Qty: 2 Cavo massa $19.34
Location: 25 Prev | Next Part: 50043009 *Qty: 1 Contenitore bocchettone benzina $293.99
Location: 26 Prev | Next Part: 50401603 *Qty: 2 Isolante pianetto lunntlo per RHD Call
Location: 26 Prev | Next Part: 50117605 *Qty: 2 Isolante pianetto lunotto per GS Call
Location: 27 Prev | Next Part: 50117704 *Qty: 2 Isolante lalcrale Call
Location: 28 Prev | Next Part: 50205501 *Qty: 1 Isolante cantrale Call
Location: 29 Prev | Next Part: 60983700 *Qty: 1 Paratia distributoie accensione Call
Location: 30 Prev | Next Part: 60906900 *Qty: 1 Protezione cavi su porta ruota $108.14

* Quantity shown indicates the number of pieces used in the diagram.
