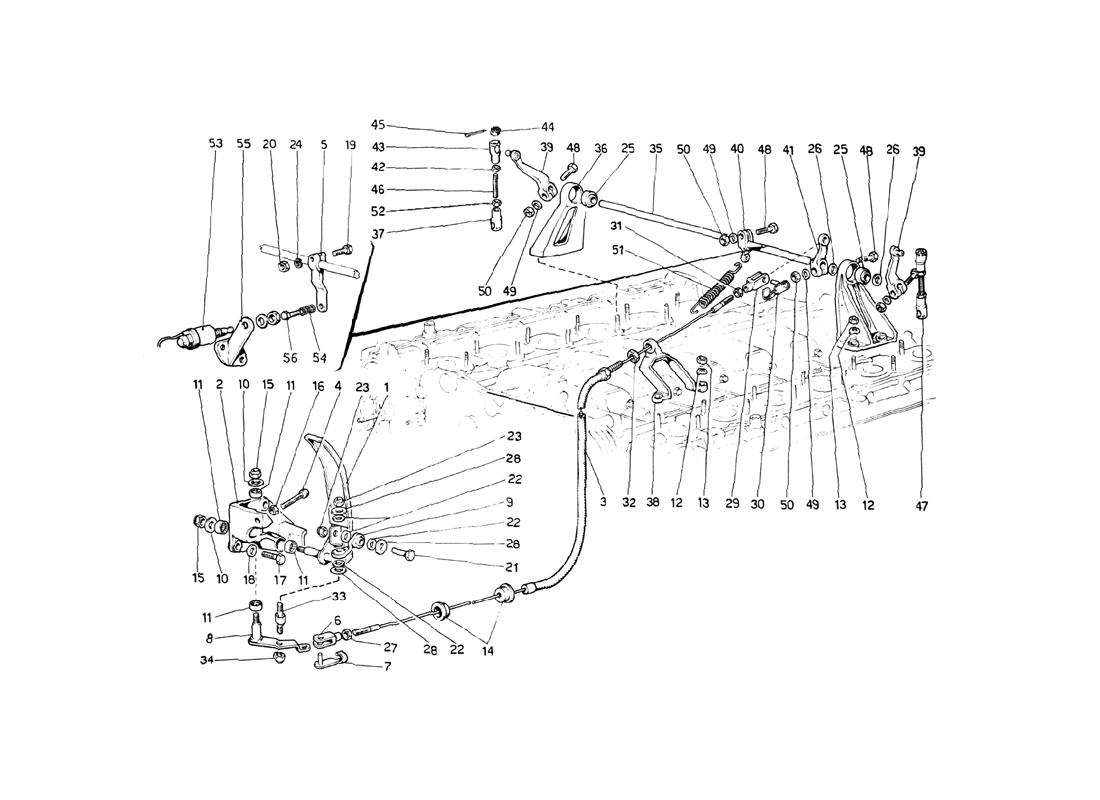

THROTTLE CONTROL

Go to Split View

THROTTLE CONTROL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 103329 *Qty: 1 Pedale acceleratore Superseded
Location: 2 Prev | Next Part: 106587 *Qty: 1 Supporto pedale acceleratore
Vale fino esaurimento
Superseded
Location: 2 Prev | Next Part: 110932 *Qty: 1 Supporto pedale acceleratore
Dopo esaurimento n. 106587
$237.29
Location: 3 Prev | Next Part: 110809 *Qty: 1 Cavo completo comando acceleratore $103.34
Location: 4 Prev | Next Part: 105232 *Qty: 1 Registro $4.57
Location: 5 Prev | Next Part: 109245 *Qty: 1 Leva $87.98
Location: 6 Prev | Next Part: 100655 *Qty: 1 Forcella $130.59
Location: 7 Prev | Next Part: 100656 *Qty: 1 Perno con molletta $2.54
Location: 8 Prev | Next Part: 105235 *Qty: 1 Leva rinvio pedale acceleratore Superseded
Location: 9 Prev | Next Part: 105237 *Qty: 1 Puntone $107.95
Location: 10 Prev | Next Part: 102683 *Qty: 2 Rondeila $12.67
Location: 11 Prev | Next Part: 101677 *Qty: 4 Astuccio a rulli $2.13
Location: 12 Prev | Next Part: 11198071 *Qty: 6 Rondeila elastica Superseded
Location: 13 Prev | Next Part: 16100811 *Qty: 6 Dado Superseded
Location: 14 Prev | Next Part: 105369 *Qty: 2 Passafilo $1.54
Location: 15 Prev | Next Part: 16104421 *Qty: 2 Dado Superseded
Location: 16 Prev | Next Part: 16102311 *Qty: 1 Controdado per registro Superseded
Location: 17 Prev | Next Part: 16135721 *Qty: 3 Rondeila Unavailable
Location: 18 Prev | Next Part: 12601371 *Qty: 3 Bullone Superseded
Location: 19 Prev | Next Part: 16043821 *Qty: 1 Bullone Superseded
Location: 20 Prev | Next Part: 16100811 *Qty: 1 Dado Superseded
Location: 21 Prev | Next Part: 10902621 *Qty: 1 Bullone Superseded
Location: 22 Prev | Next Part: 10519421 *Qty: 4 Rondeila di rasamento Superseded
Location: 23 Prev | Next Part: 12574221 *Qty: 2 Dado Superseded
Location: 24 Prev | Next Part: 106852 *Qty: 1 Rondeila Superseded
Location: 25 Prev | Next Part: 107620 *Qty: 2 Snodo sferico $299.24
Location: 26 Prev | Next Part: 107619 *Qty: 2 Rosetta di spallamento $24.16
Location: 27 Prev | Next Part: 10725911 *Qty: 1 Controdado Superseded
Location: 28 Prev | Next Part: 12643721 *Qty: 3 Rondeila $1.07
Location: 29 Prev | Next Part: 100655 *Qty: 1 Forcella $130.59
Location: 30 Prev | Next Part: 100656 *Qty: 1 Perno con molletta $2.54
Location: 31 Prev | Next Part: 10725911 *Qty: 1 Controdado Superseded
Location: 32 Prev | Next Part: 16102311 *Qty: 1 Controdado Superseded
Location: 33 Prev | Next Part: 105679 *Qty: 1 Colonnetta sulla leva rinvio Unavailable
Location: 34 Prev | Next Part: 16104111 *Qty: 1 Dado Superseded
Location: 35 Prev | Next Part: 109244 *Qty: 1 Alberino di rinvio per comando carburatori $140.28
Location: 36 Prev | Next Part: 107171 *Qty: 2 Assieme supporto Dx e Sx $297.13
Location: 36 Prev | Next Part: 107167 *Qty: 2 Supporto Dx e Sx Superseded
Location: 37 Prev | Next Part: 105619 *Qty: 2 Testina $96.63
Location: 38 Prev | Next Part: 106061 *Qty: 1 Supporto flessibile $213.15
Location: 39 Prev | Next Part: 102869 *Qty: 2 Leva comando carburatori Unavailable
Location: 40 Prev | Next Part: 102870 *Qty: 1 Leva attacco molla di richiamo $184.58
Location: 41 Prev | Next Part: 105258 *Qty: 1 Leva attacco flessibile $230.99
Location: 42 Prev | Next Part: 15896411 *Qty: 2 Dado Superseded
Location: 43 Prev | Next Part: 15149911 *Qty: 2 Testina Superseded
Location: 44 Prev | Next Part: 15150911 *Qty: 2 Tappo per testina $20.10
Location: 45 Prev | Next Part: 10795101 *Qty: 2 Copiglia $0.90
Location: 46 Prev | Next Part: 107173 *Qty: 2 Barra filettata $19.12
Location: 47 Prev | Next Part: 107169 *Qty: 2 Assieme tirante comando carburatori Unavailable
Location: 48 Prev | Next Part: 16043821 *Qty: 4 Bullone Superseded
Location: 49 Prev | Next Part: 10516671 *Qty: 4 Rondeila Superseded
Location: 50 Prev | Next Part: 16100811 *Qty: 4 Dado Superseded
Location: 51 Prev | Next Part: 105260 *Qty: 1 Molla $11.54
Location: 52 Prev | Next Part: 105586 *Qty: 2 Dado $5.52
Location: 53 Prev | Next Part: 108485 *Qty: 1 Solenoide Unavailable
Location: 54 Prev | Next Part: 107824 *Qty: 1 Molla $1.10
Location: 55 Prev | Next Part: 109246 *Qty: 1 Supporto solenoide Unavailable
Location: 56 Prev | Next Part: 107823 *Qty: 1 Vite per regolazione solenoide $3.80

* Quantity shown indicates the number of pieces used in the diagram.
