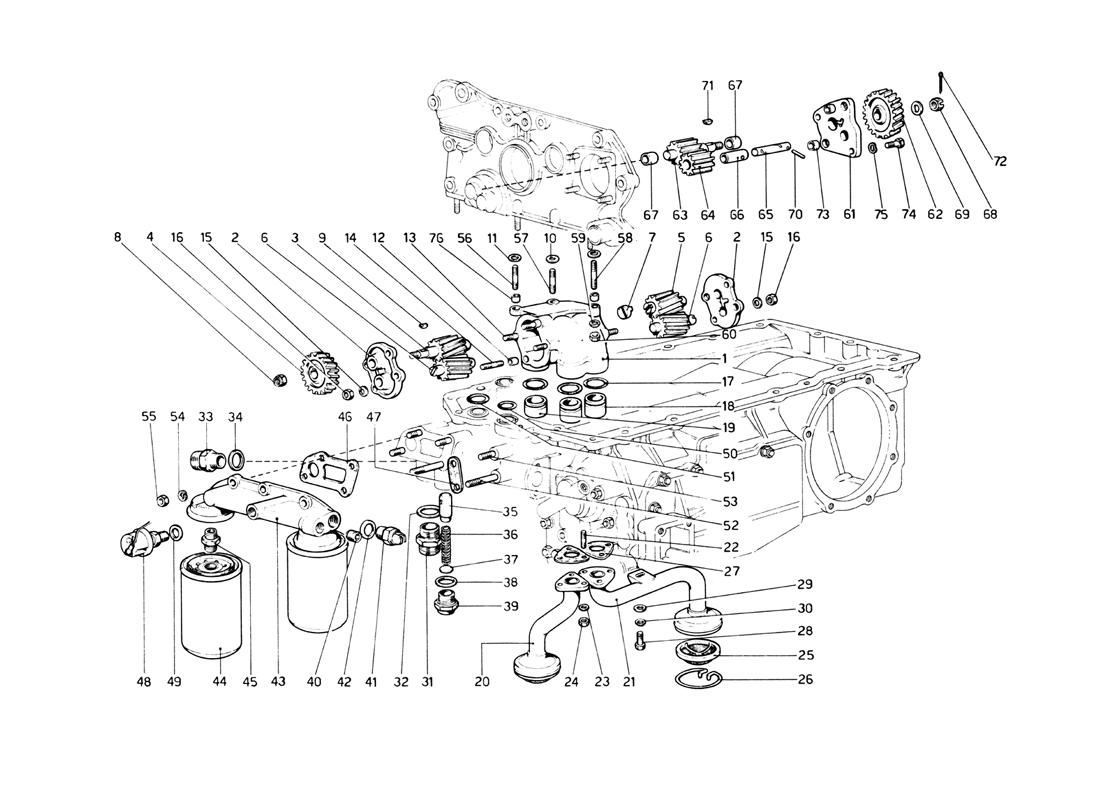

LUBRICATION - OIL PUMPS AND FILTERS

Go to Split View

LUBRICATION - OIL PUMPS AND FILTERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 109499 *Qty: 1 Pompa recupero olio Unavailable
Location: 1 Prev | Next Part: 111306 *Qty: 1 Pompa recupero olio complete $963.19
Location: 2 Prev | Next Part: 109505 *Qty: 2 Coperchio pompa $240.24
Location: 3 Prev | Next Part: 109312 *Qty: 1 Ingranaggio conduttore anteriore Superseded
Location: 4 Prev | Next Part: 104574 *Qty: 1 Ingranaggio esterno $196.26
Location: 5 Prev | Next Part: 109311 *Qty: 1 Ingranaggio conduttore posteriore Superseded
Location: 6 Prev | Next Part: 109310 *Qty: 2 Ingranaggio condotto Superseded
Location: 7 Prev | Next Part: 109309 *Qty: 1 Giunto di trascinamento $14.98
Location: 8 Prev | Next Part: 104011 *Qty: 1 Dado autobloccante $13.65
Location: 9 Prev | Next Part: 10205620 *Qty: 1 Linguetta Unavailable
Location: 10 Prev | Next Part: 111279 *Qty: 1 Rondella rasamento spess. mm. 1.10 $2.97
Location: 10 Prev | Next Part: 111280 *Qty: 1 Rondella rasamento spess. mm. 1.15 $2.97
Location: 10 Prev | Next Part: 111281 *Qty: 1 Rondella rasamento spess. mm. 1.20 $2.97
Location: 11 Prev | Next Part: 111284 *Qty: 2 Rondella rasamento spess mm. 1.20 $2.97
Location: 11 Prev | Next Part: 111282 *Qty: 2 Rondella rasamento spess. mm. 1.10 $2.97
Location: 11 Prev | Next Part: 111283 *Qty: 2 Rondella rasamento spess. mm. 1.15 $2.97
Location: 12 Prev | Next Part: 102725 *Qty: 4 Grano $1.26
Location: 13 Prev | Next Part: 11500121 *Qty: 4 THREADED STUD Superseded
Location: 14 Prev | Next Part: 11500321 *Qty: 4 THREADED STUD Unavailable
Location: 15 Prev | Next Part: 11197771 *Qty: 8 Rondella bombata Superseded
Location: 16 Prev | Next Part: 15896221 *Qty: 8 Dado Superseded
Location: 17 Prev | Next Part: 105556 *Qty: 3 Anello di tenuta $5.09
Location: 18 Prev | Next Part: 110006 *Qty: 2 Bussola $51.32
Location: 19 Prev | Next Part: 110007 *Qty: 1 Bussola $57.18
Location: 20 Prev | Next Part: 109532 *Qty: 1 Pescante anteriore $158.02
Location: 21 Prev | Next Part: 109534 *Qty: 1 Pescante posteriore $105.29
Location: 22 Prev | Next Part: 13540921 *Qty: 6 THREADED STUD Unavailable
Location: 23 Prev | Next Part: 11197771 *Qty: 6 Rondella Superseded
Location: 24 Prev | Next Part: 15896221 *Qty: 6 Dado Superseded
Location: 25 Prev | Next Part: 100332 *Qty: 2 Filtro $23.13
Location: 26 Prev | Next Part: 103944 *Qty: 2 Anello di tenuta $114.38
Location: 27 Prev | Next Part: 109530 *Qty: 2 Guarnizione Superseded
Location: 28 Prev | Next Part: 16043311 *Qty: 1 Bullone $1.93
Location: 29 Prev | Next Part: 12646700 *Qty: 1 Rondella piana Unavailable
Location: 30 Prev | Next Part: 11198071 *Qty: 1 Rondella bombata Superseded
Location: 31 Prev | Next Part: 110203 *Qty: 1 Raccordo $134.38
Location: 32 Prev | Next Part: 10303460 *Qty: 1 Guarnizione Superseded
Location: 33 Prev | Next Part: 109371 *Qty: 1 Raccordo $252.84
Location: 34 Prev | Next Part: 10264660 *Qty: 1 Guarnizione $5.27
Location: 35 Prev | Next Part: 110948 *Qty: 1 Pistoncino Superseded
Location: 36 Prev | Next Part: 106900 *Qty: 1 Molla Unavailable
Location: 37 Prev | Next Part: 106238 *Qty: 1 Distanziale $2.04
Location: 38 Prev | Next Part: 10264660 *Qty: 1 Guarnizione $5.27
Location: 39 Prev | Next Part: 106237 *Qty: 1 Tappo Unavailable
Location: 40 Prev | Next Part: 10269750 *Qty: 1 Tappo $1.80
Location: 41 Prev | Next Part: 108500 *Qty: 1 Interruttore termometrico a scatto $18.17
Location: 42 Prev | Next Part: 10263460 *Qty: 1 Guarnizione Superseded
Location: 43 Prev | Next Part: 108018 *Qty: 1 Supporto filtri olio completo Unavailable
Location: 43 Prev | Next Part: 106727 *Qty: 1 Supporto filtri $865.04
Location: 44 Prev | Next Part: 191993 *Qty: 2 Cartuccia per filtro senza valvola by-pass
Fiamm Filter
$34.95
Location: 44 Prev | Next Part: 100325 *Qty: 2 Cartuccia per filtro senza valvola by-pass Superseded
Location: 45 Prev | Next Part: 100327 *Qty: 2 Raccordo $28.70
Location: 46 Prev | Next Part: 106733 *Qty: 1 Guarnizione Superseded
Location: 47 Prev | Next Part: 102887 *Qty: 1 Guarnizione Superseded
Location: 48 Prev | Next Part: 100343 *Qty: 1 Trasmettitore elettrico di pressione 12 V 0 ? 12 Kg/cm? Superseded
Location: 49 Prev | Next Part: 10257060 *Qty: 1 Guarnizione $0.90
Location: 50 Prev | Next Part: 103020 *Qty: 1 Anello di tenuta $3.59
Location: 51 Prev | Next Part: 103021 *Qty: 1 Anello di tenuta $3.04
Location: 52 Prev | Next Part: 13543921 *Qty: 2 THREADED STUD $1.10
Location: 53 Prev | Next Part: 13543521 *Qty: 4 THREADED STUD Superseded
Location: 54 Prev | Next Part: 12601371 *Qty: 6 Rondella Superseded
Location: 55 Prev | Next Part: 16100821 *Qty: 6 Dado Unavailable
Location: 56 Prev | Next Part: 13517021 *Qty: 1 THREADED STUD Unavailable
Location: 57 Prev | Next Part: 13516821 *Qty: 1 THREADED STUD Superseded
Location: 58 Prev | Next Part: 13517221 *Qty: 1 THREADED STUD Superseded
Location: 59 Prev | Next Part: 11198071 *Qty: 3 Rondella Superseded
Location: 60 Prev | Next Part: 16100821 *Qty: 3 Dado Unavailable
Location: 61 Prev | Next Part: 102326 *Qty: 1 Coperchio pompa olio $813.50
Location: 62 Prev | Next Part: 102764 *Qty: 1 Ingranaggio comando pompa $33.63
Location: 63 Prev | Next Part: 102774 *Qty: 1 Ingranaggio conduttore
Vale fino esaurimento
Superseded
Location: 63 Prev | Next Part: 109954 *Qty: 1 Ingranaggio conduttore
Vale dopo esaur. n. 102774
$1,079.46
Location: 64 Prev | Next Part: 109955 *Qty: 1 Ingranaggio condotto Unavailable
Location: 65 Prev | Next Part: 102772 *Qty: 1 Alberino per ingranaggio condotto Unavailable
Location: 66 Prev | Next Part: 102771 *Qty: 1 Boccola $23.09
Location: 67 Prev | Next Part: 102770 *Qty: 2 Boccola $25.28
Location: 68 Prev | Next Part: 102900 *Qty: 1 Dado $10.51
Location: 69 Prev | Next Part: 102901 *Qty: 1 Rondella Unavailable
Location: 70 Prev | Next Part: 14161970 *Qty: 1 Spina elastica Unavailable
Location: 71 Prev | Next Part: 10205620 *Qty: 1 Linguetta Unavailable
Location: 72 Prev | Next Part: 10734301 *Qty: 1 Copiglia Unavailable
Location: 73 Prev | Next Part: 102032 *Qty: 2 Grano di centraggio $4.40
Location: 74 Prev | Next Part: 16043621 *Qty: 4 Bullone Unavailable
Location: 75 Prev | Next Part: 12601371 *Qty: 4 Rondella Superseded
Location: 76 Prev | Next Part: 102704 *Qty: 2 Grano $3.44

* Quantity shown indicates the number of pieces used in the diagram.
