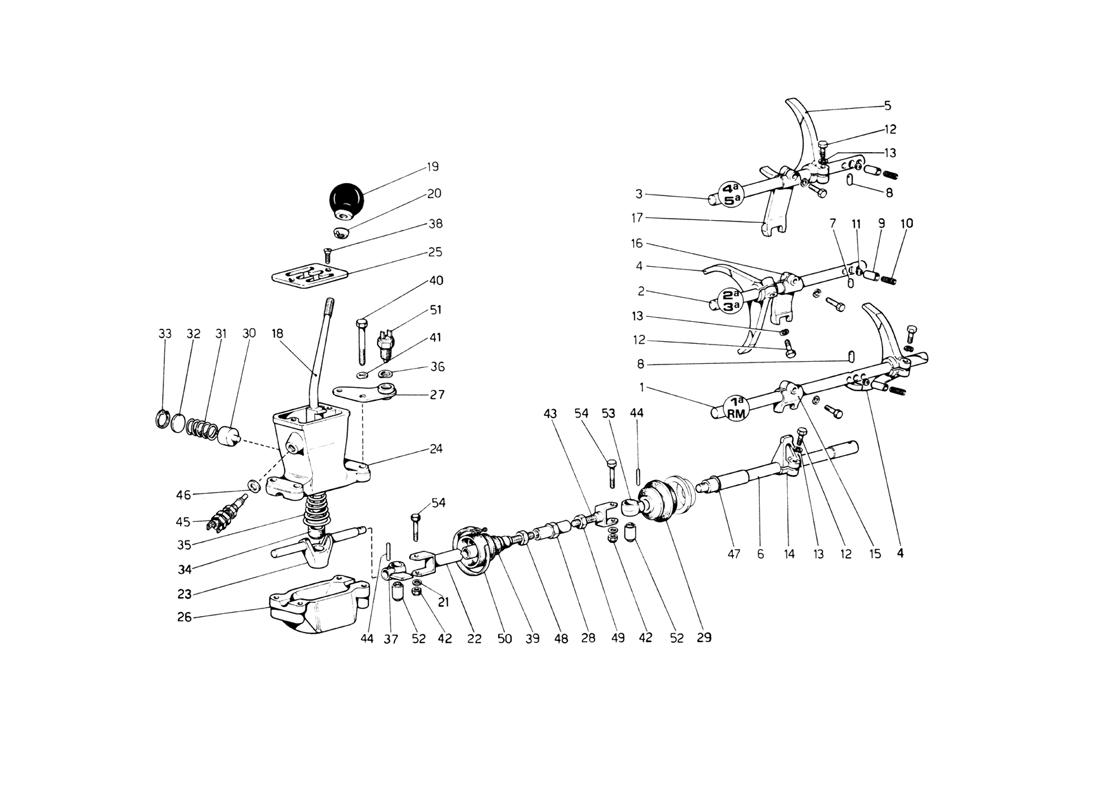

GEAR BOX CONTROLS

Go to Split View

GEAR BOX CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 107451 *Qty: 1 Asta comando forcella 1? vel. e R.M. $59.70
Location: 2 Prev | Next Part: 107452 *Qty: 1 Asta comando forcella 2? e 3? vel. $57.34
Location: 3 Prev | Next Part: 107453 *Qty: 1 Asta comando forcella 4? e 5? vel. $124.74
Location: 4 Prev | Next Part: 107374 *Qty: 2 Forcella comando innesto 1? 2? 3? velocita e R.M. $116.89
Location: 5 Prev | Next Part: 107375 *Qty: 1 Forcella comando innesto 4? e 5? vel. $1,651.39
Location: 6 Prev | Next Part: 107377 *Qty: 1 Asta comando cambio Superseded
Location: 7 Prev | Next Part: 107454 *Qty: 1 Rullino arresto asta centrale Call
Location: 8 Prev | Next Part: 103011 *Qty: 2 Rullino arresto aste lateral! Call
Location: 9 Prev | Next Part: 100749 *Qty: 3 Bussola per molla $51.13
Location: 10 Prev | Next Part: 100750 *Qty: 3 Molla $1.60
Location: 11 Prev | Next Part: 101612 *Qty: 3 Sfera arresto aste $1.23
Location: 12 Prev | Next Part: 16043521 *Qty: 7 Bullone Superseded
Location: 13 Prev | Next Part: 10516671 *Qty: 7 Rondella Superseded
Location: 14 Prev | Next Part: 106217 *Qty: 1 Levetta comando forcellini $173.26
Location: 15 Prev | Next Part: 106221 *Qty: 1 Forcellino comando asta 1? velocita e R.M. $163.03
Location: 16 Prev | Next Part: 106222 *Qty: 1 Forcellino comando asta 2? e 3? vel. $37.98
Location: 17 Prev | Next Part: 106223 *Qty: 1 Forcellino comando asta 4? e 5? vel. $177.97
Location: 18 Prev | Next Part: 108874 *Qty: 1 Leva comando cambio $356.95
Location: 19 Prev | Next Part: 103301 *Qty: 1 Pomello per leva $226.25
Location: 20 Prev | Next Part: 108010 *Qty: 1 Controdado $28.56
Location: 21 Prev | Next Part: 10519601 *Qty: 2 Rondella Superseded
Location: 22 Prev | Next Part: 107378 *Qty: 1 Barra comando cambio $194.26
Location: 23 Prev | Next Part: 107023 *Qty: 1 Perno con sede snodo $285.57
Location: 24 Prev | Next Part: 105438 *Qty: 1 Gearbox casing Call
Location: 24 Prev | Next Part: 108848 *Qty: 1 Scatola comando cambio completa Superseded
Location: 25 Prev | Next Part: 105439 *Qty: 1 Selettore marce Superseded
Location: 26 Prev | Next Part: 106844 *Qty: 1 Coperchio inferiore Call
Location: 27 Prev | Next Part: 106845 *Qty: 2 Boccola Superseded
Location: 28 Prev | Next Part: 103321 *Qty: 1 Tirante per registro $6.65
Location: 29 Prev | Next Part: 106168 *Qty: 1 Soffietto per asta $16.32
Location: 30 Prev | Next Part: 103317 *Qty: 1 Puntalino richiamo leva $14.99
Location: 31 Prev | Next Part: 103318 *Qty: 1 Molla richiamo leva $4.69
Location: 32 Prev | Next Part: 103319 *Qty: 1 Dischetto ritegno molla $21.38
Location: 33 Prev | Next Part: 103326 *Qty: 1 Anello Seeger $0.90
Location: 34 Prev | Next Part: 108214 *Qty: 1 Sede sferica per leva Superseded
Location: 35 Prev | Next Part: 108531 *Qty: 1 Molla centrale
Vale fino esaurimento
Superseded
Location: 35 Prev | Next Part: 108823 *Qty: 1 Molla centrale
Dopo esaur. n. 108531
$4.57
Location: 36 Prev | Next Part: 107021 *Qty: 1 Rondella $1.45
Location: 37 Prev | Next Part: 109567 *Qty: 1 Occhiello per giunto $68.69
Location: 38 Prev | Next Part: 101619 *Qty: 2 Vite fissaggio selettore $10.89
Location: 39 Prev | Next Part: 106687 *Qty: 1 Soffietto riparo barra comando cambio $7.73
Location: 40 Prev | Next Part: 16136621 *Qty: 4 Vite $1.74
Location: 41 Prev | Next Part: 12601371 *Qty: 4 Rondella Superseded
Location: 42 Prev | Next Part: 101309 *Qty: 2 Dado Call
Location: 43 Prev | Next Part: 106820 *Qty: 1 Forcellino e perno registro Call
Location: 44 Prev | Next Part: 103327 *Qty: 2 Spina elastica $2.35
Location: 45 Prev | Next Part: 104320 *Qty: 1 Interruttore segnalazione luce R.M. Superseded
Location: 46 Prev | Next Part: 12601571 *Qty: 1 Rondella $0.90
Location: 47 Prev | Next Part: 105140 *Qty: 1 Anello di tenuta $3.49
Location: 48 Prev | Next Part: 10791221 *Qty: 1 Controdado
Filetto destro
$4.03
Location: 49 Prev | Next Part: 10791921 *Qty: 1 Controdado
Filetto sinistro
Superseded
Location: 50 Prev | Next Part: 10291490 *Qty: 1 Fascetta $1.74
Location: 51 Prev | Next Part: 109569 *Qty: 1 Interruttore per disinserire comando minimo accelerate $35.29
Location: 52 Prev | Next Part: 106814 *Qty: 2 Silentbloc Superseded
Location: 53 Prev | Next Part: 109562 *Qty: 1 Occhiello per giunto $57.98
Location: 54 Prev | Next Part: 107830 *Qty: 2 Vite $5.12

* Quantity shown indicates the number of pieces used in the diagram.
