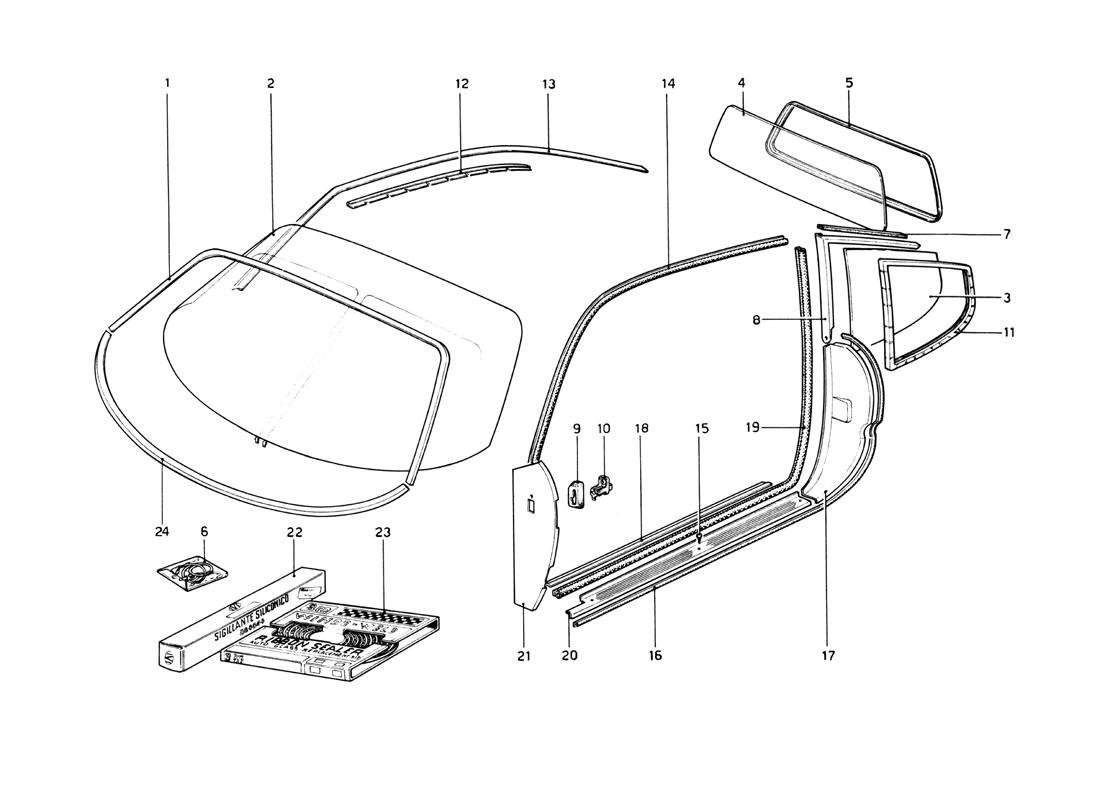

FIXED GLASS

Go to Split View

FIXED GLASS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 50015403 *Qty: 1 Cornice parabrezza Superseded
Location: 2 Prev | Next Part: 50015304 *Qty: 1 Cristallo parabrezza Unavailable
Location: 3 Prev | Next Part: 50015502 *Qty: 1 Cristallo laterale post. fisso Dx Unavailable
Location: 3 Prev | Next Part: 50015601 *Qty: 1 Cristallo laterale post. fisso Sx Unavailable
Location: 4 Prev | Next Part: 50016104 *Qty: 1 Cristallo lunotto $3,578.53
Location: 5 Prev | Next Part: 50016203 *Qty: 1 Cornice lunotto $355.26
Location: 6 Prev | Next Part: 50127307 *Qty: 1 Cavo per antenna radio $37.24
Location: 7 Prev | Next Part: 50015700 *Qty: 2 Guarnizione $16.92
Location: 8 Prev | Next Part: 50016906 *Qty: 1 Cornice cristallo laterale post. Dx Unavailable
Location: 8 Prev | Next Part: 50017003 *Qty: 1 Cornice cristallo laterale post. Sx $18.26
Location: 9 Prev | Next Part: 50313303 *Qty: 2 Guarnizione $0.90
Location: 10 Prev | Next Part: 50313204 *Qty: 2 Interruttore plafoniera abitacolo $11.94
Location: 11 Prev | Next Part: 40023905 *Qty: 2 Guarnizione cristallo lat. post. $286.45
Location: 12 Prev | Next Part: 50044908 *Qty: 1 Gocciolatoio Dx $174.81
Location: 12 Prev | Next Part: 50045004 *Qty: 1 Gocciolatoio Sx Unavailable
Location: 13 Prev | Next Part: 50045103 *Qty: 1 Modanatura superiore porta Dx $390.31
Location: 13 Prev | Next Part: 50045202 *Qty: 1 Modanatura superiore porta Sx $390.31
Location: 14 Prev | Next Part: 50044601 *Qty: 2 Guarnizione superiore porta $77.02
Location: 15 Prev | Next Part: 17677805 *Qty: 6 Vite Unavailable
Location: 16 Prev | Next Part: 50044809 *Qty: 2 Guarnizione inferiore esterna $7.99
Location: 17 Prev | Next Part: 50045707 *Qty: 1 Riparo posteriore Dx porta Unavailable
Location: 17 Prev | Next Part: 50045806 *Qty: 1 Riparo posteriore Sx porta $302.67
Location: 18 Prev | Next Part: 50097806 *Qty: 2 Modanatura interna Unavailable
Location: 19 Prev | Next Part: 50044601 *Qty: 2 Guarnizione inferiore interna $77.02
Location: 20 Prev | Next Part: 50045301 *Qty: 1 Modanatura sottoporta Dx $148.63
Location: 20 Prev | Next Part: 50045400 *Qty: 1 Modanatura sottoporta Sx $170.14
Location: 21 Prev | Next Part: 50313006 *Qty: 1 Riparo anteriore Dx porta $64.76
Location: 21 Prev | Next Part: 50313105 *Qty: 1 Riparo anteriore Sx porta $48.14
Location: 22 Prev | Next Part: 60156106 *Qty: 1 Cartuccia sigillante siliconico Unavailable
Location: 23 Prev | Next Part: 60089505 *Qty: 1 Sigillante parabrezza Windo Weld Superseded
Location: 24 Prev | Next Part: 50332709 *Qty: 1 Cornice inf. parabrezza Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
