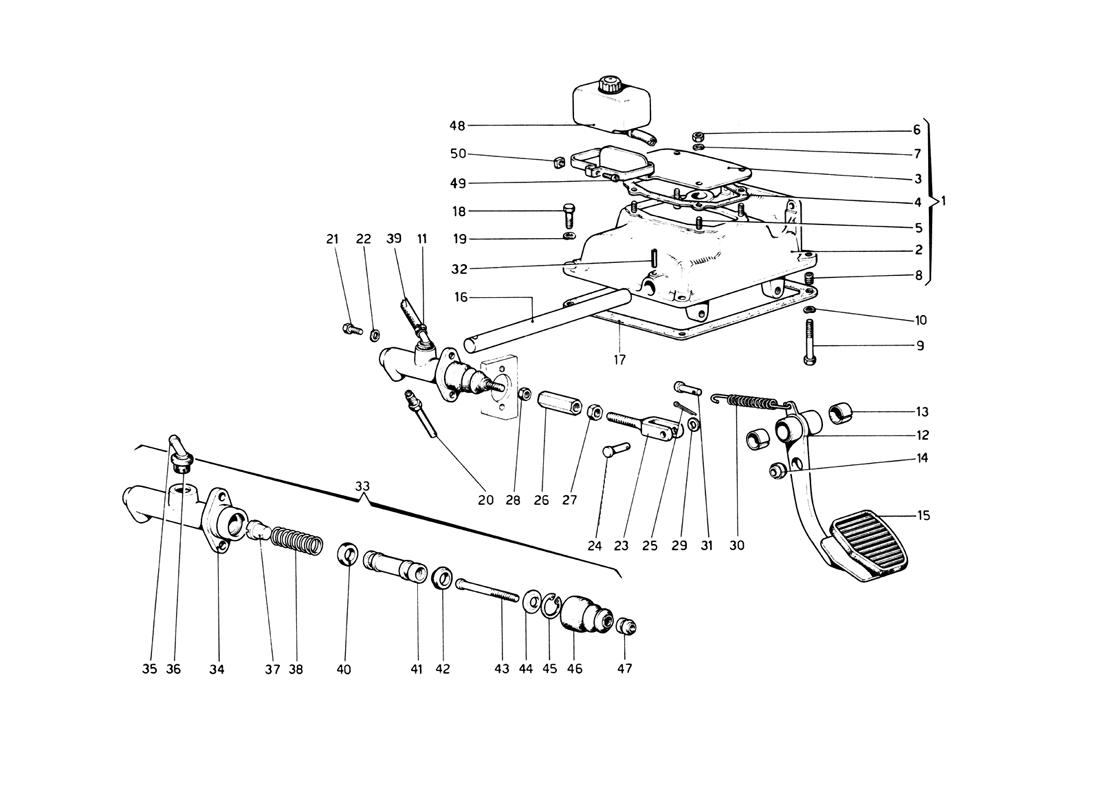

CLUTCH RELEASE CONTROL

Go to Split View

CLUTCH RELEASE CONTROL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 108022 *Qty: 1 Supporto pedaliera completo $2,141.83
Location: 2 Prev | Next Part: 106187 *Qty: 1 Supporto pedaliera Superseded
Location: 3 Prev | Next Part: 111135 *Qty: 1 Coperchio $57.55
Location: 4 Prev | Next Part: 104905 *Qty: 1 Guarnizione $10.09
Location: 5 Prev | Next Part: 11500021 *Qty: 4 THREADED STUD Superseded
Location: 6 Prev | Next Part: 15896211 *Qty: 4 Dado Superseded
Location: 7 Prev | Next Part: 106850 *Qty: 4 Rondella Superseded
Location: 8 Prev | Next Part: 106188 *Qty: 2 Boccola filettata $40.13
Location: 9 Prev | Next Part: 16044421 *Qty: 2 Bullone Unavailable
Location: 10 Prev | Next Part: 10516671 *Qty: 2 Rondella Superseded
Location: 11 Prev | Next Part: 102604 *Qty: 2 Fascetta Superseded
Location: 12 Prev | Next Part: 107917 *Qty: 1 Pedale frizione completo $250.96
Location: 13 Prev | Next Part: 103163 *Qty: 2 Boccola $3.80
Location: 14 Prev | Next Part: 100424 *Qty: 1 Snotlo sferico Unavailable
Location: 15 Prev | Next Part: 106949 *Qty: 1 Gommino protezione pedale $9.71
Location: 16 Prev | Next Part: 104900 *Qty: 1 Perno supporto pedali $128.31
Location: 17 Prev | Next Part: 104899 *Qty: 1 Guarnizione Unavailable
Location: 18 Prev | Next Part: 16139021 *Qty: 2 Bullone $2.74
Location: 19 Prev | Next Part: 12601471 *Qty: 2 Rondella Superseded
Location: 20 Prev | Next Part: 108864 *Qty: 1 Tubo comando frizione Unavailable
Location: 21 Prev | Next Part: 16043421 *Qty: 2 Vite Superseded
Location: 22 Prev | Next Part: 106852 *Qty: 2 Rondella Superseded
Location: 23 Prev | Next Part: 10008571 *Qty: 1 Forcella Superseded
Location: 24 Prev | Next Part: 10033410 *Qty: 1 Perno per forcella Unavailable
Location: 25 Prev | Next Part: 10734401 *Qty: 1 Copiglia Unavailable
Location: 26 Prev | Next Part: 107921 *Qty: 1 Manicotto $80.24
Location: 27 Prev | Next Part: 10791011 *Qty: 1 Controdado Unavailable
Location: 28 Prev | Next Part: 16102311 *Qty: 1 Controdado Superseded
Location: 29 Prev | Next Part: 103167 *Qty: 1 Rondella $4.31
Location: 30 Prev | Next Part: 104895 *Qty: 1 Molla richiamo pedale $8.01
Location: 31 Prev | Next Part: 104896 *Qty: 1 Perno tenuta molla $33.60
Location: 32 Prev | Next Part: 104901 *Qty: 1 Spina $2.12
Location: 33 Prev | Next Part: 108419 *Qty: 1 Pompa ? 11/16" comando idraulico frizione completa Superseded
Location: 34 Prev | Next Part: 111257 *Qty: 1 Corpo pompa Unavailable
Location: 35 Prev | Next Part: 111255 *Qty: 1 Tubetto $6.21
Location: 36 Prev | Next Part: 106625 *Qty: 1 Gommino Superseded
Location: 37 Prev | Next Part: 111256 *Qty: 1 Cilindretto $4.83
Location: 38 Prev | Next Part: 111258 *Qty: 1 Molla $17.01
Location: 39 Prev | Next Part: 111138 *Qty: 1 Tubo dalla vaschetta alia pompa $7.37
Location: 40 Prev | Next Part: 111259 *Qty: 1 Anello di tenuta Unavailable
Location: 41 Prev | Next Part: 111260 *Qty: 1 Cilindretto $52.30
Location: 42 Prev | Next Part: 111261 *Qty: 1 Anello di tenuta $32.80
Location: 43 Prev | Next Part: 111268 *Qty: 1 Puntalino per Cilindretto $12.39
Location: 44 Prev | Next Part: 111267 *Qty: 1 Anello di fermo $1.48
Location: 45 Prev | Next Part: 111266 *Qty: 1 Seeger $1.79
Location: 46 Prev | Next Part: 111269 *Qty: 1 Cuffia di protezione $32.97
Location: 47 Prev | Next Part: 111270 *Qty: 1 Anello di fermo $10.51
Location: 48 Prev | Next Part: 103168 *Qty: 1 Vaschetta $77.42
Location: 49 Prev | Next Part: 10374911 *Qty: 1 Vite $0.90
Location: 50 Prev | Next Part: 10196911 *Qty: 1 Dado $0.90

* Quantity shown indicates the number of pieces used in the diagram.
