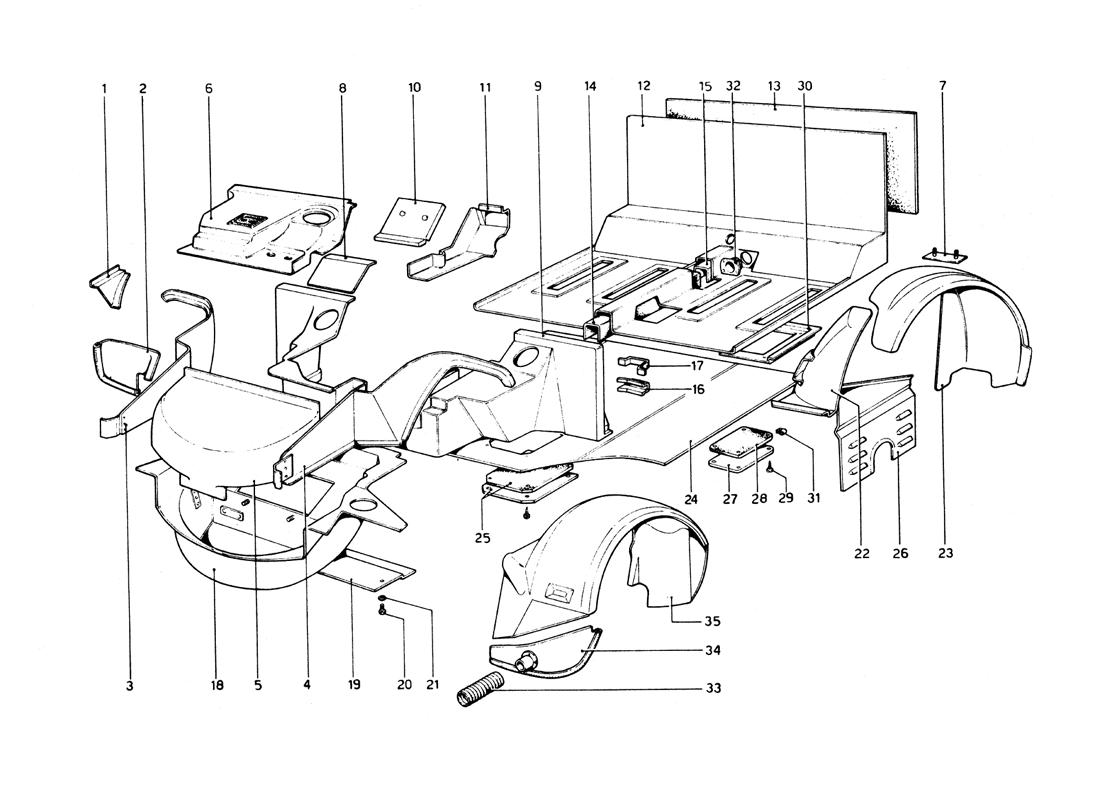

BODY SHELL - INNER ELEMENTS LOWER

Go to Split View

BODY SHELL - INNER ELEMENTS LOWER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 50156504 *Qty: 1 Supporto valigetta $22.83
Location: 2 Prev | Next Part: 50087402 *Qty: 1 Paratia per tubi A.C. $181.59
Location: 3 Prev | Next Part: 50317007 *Qty: 1 Paratia laterale Dx vano baule $490.78
Location: 4 Prev | Next Part: 50317106 *Qty: 1 Paratia laterale Sx vano baule $490.78
Location: 5 Prev | Next Part: 50317403 *Qty: 1 Paratia centrale vano baule $550.92
Location: 6 Prev | Next Part: 50351004 *Qty: 1 Paratia superiore pianale ant.
Vale per RHD
Unavailable
Location: 6 Prev | Next Part: 50306109 *Qty: 1 Paratia superiore pianale ant.
Non vale per RHD
$325.14
Location: 7 Prev | Next Part: 50328103 *Qty: 1 Staffa supp. bobina $19.88
Location: 8 Prev | Next Part: 50073907 *Qty: 1 Paratia inferiore pedaliera
Non vale per RHD
$119.25
Location: 8 Prev | Next Part: 50167006 *Qty: 1 Paratia inferiore pedaliera
Vale per RHD
$119.25
Location: 9 Prev | Next Part: 50306208 *Qty: 1 Pianale anteriore
Non vale per RHD
Superseded
Location: 9 Prev | Next Part: 50343607 *Qty: 1 Pianale anteriore
Vale per RHD
$1,401.21
Location: 10 Prev | Next Part: 50073709 *Qty: 1 Paratia superiore pedaliera
Non vale per RHD
$58.63
Location: 10 Prev | Next Part: 50167303 *Qty: 1 Paratia superiore pedaliera
Vale per RHD
Unavailable
Location: 11 Prev | Next Part: 50305804 *Qty: 1 Riporto per pianale anteriore
Non vale per RHD
$112.64
Location: 11 Prev | Next Part: 50350909 *Qty: 1 Riporto per pianale anteriore
Vale per RHD
$190.44
Location: 12 Prev | Next Part: 50305705 *Qty: 1 Pianale $1,197.55
Location: 13 Prev | Next Part: 50201508 *Qty: 1 Isolante posteriore pianale $71.52
Location: 14 Prev | Next Part: 50077007 *Qty: 1 Isolante per tunnel centrale $85.65
Location: 15 Prev | Next Part: 50202209 *Qty: 1 Isolante post. per tunnel centrale $28.23
Location: 16 Prev | Next Part: 50079706 *Qty: 1 Supporto leva apricofano Unavailable
Location: 17 Prev | Next Part: 50156603 *Qty: 1 Supporto cassetto portaoggetti
Non vale per RHD
Unavailable
Location: 17 Prev | Next Part: 50169002 *Qty: 1 Supporto cassetto portaoggetti
Vale per RHD
Unavailable
Location: 18 Prev | Next Part: 50315803 *Qty: 1 Contenitore ruota di scorta $679.95
Location: 19 Prev | Next Part: 50131804 *Qty: 1 Sottopianale anteriore $70.92
Location: 20 Prev | Next Part: 20146601 *Qty: 4 Vite Superseded
Location: 21 Prev | Next Part: 12643701 *Qty: 4 Rondella Superseded
Location: 22 Prev | Next Part: 50320803 *Qty: 1 Parasassi post. Dx $539.87
Location: 22 Prev | Next Part: 50320902 *Qty: 1 Parasassi post. Sx $539.87
Location: 23 Prev | Next Part: 50304807 *Qty: 1 Passaruota post. Dx $504.28
Location: 23 Prev | Next Part: 50304906 *Qty: 1 Passaruota post. Sx $504.28
Location: 24 Prev | Next Part: 50315001 *Qty: 1 Sottopianale completo di coperchi
Non vale per RHD
$904.32
Location: 24 Prev | Next Part: 50350800 *Qty: 1 Sottopianale completo di coperchi
Vale per RHD
$1,154.50
Location: 25 Prev | Next Part: 40259509 *Qty: 1 Coperchio sottopianale con guarniz. $49.59
Location: 26 Prev | Next Part: 50001106 *Qty: 1 Riparo motore Dx $943.54
Location: 26 Prev | Next Part: 50001205 *Qty: 1 Riparo motore Sx $734.49
Location: 27 Prev | Next Part: 50202100 *Qty: 1 Coperchio ispezione freno $20.14
Location: 28 Prev | Next Part: 50202001 *Qty: 1 Guarnizione $6.63
Location: 29 Prev | Next Part: 17671106 *Qty: 12 Vite Unavailable
Location: 30 Prev | Next Part: 50201904 *Qty: 1 Scatola protezione freno Superseded
Location: 31 Prev | Next Part: 20273603 *Qty: 12 Molletta $1.02
Location: 32 Prev | Next Part: 40081200 *Qty: 1 Boccola per leva cambio $9.35
Location: 33 Prev | Next Part: 50021302 *Qty: 2 Tubo $52.55
Location: 34 Prev | Next Part: 50305200 *Qty: 1 Parasassi ant. Dx $322.70
Location: 34 Prev | Next Part: 50305309 *Qty: 1 Parasassi ant. Sx $322.70
Location: 35 Prev | Next Part: 50002203 *Qty: 1 Passaruota ant. Dx Unavailable
Location: 35 Prev | Next Part: 50002302 *Qty: 1 Passaruota ant. Sx Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
