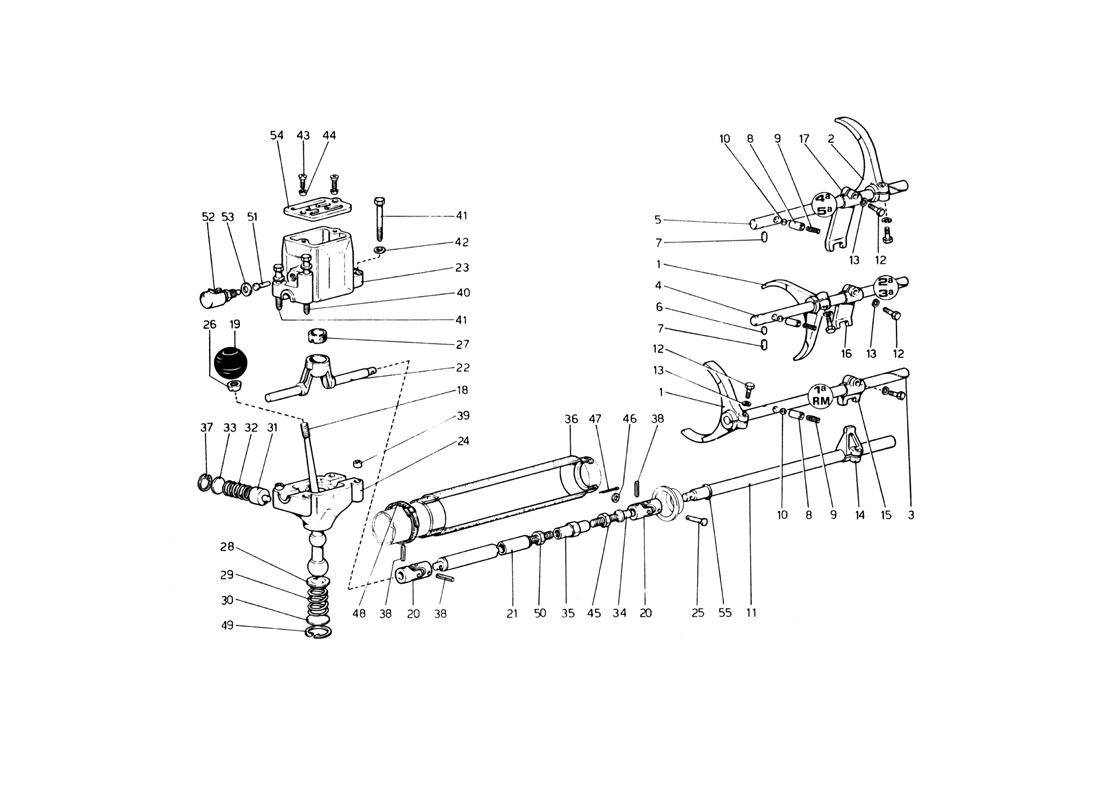

GEARBOX CONTROLS (UP TO CAR NO. 17535)

Go to Split View

GEARBOX CONTROLS (UP TO CAR NO. 17535)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 102801 *Qty: 2 Forcella comando 1? RM - 2? e 3? vel. $412.50
Location: 2 Prev | Next Part: 102802 *Qty: 1 Forcella comando 4? - 5? vel. $323.70
Location: 3 Prev | Next Part: 103007 *Qty: 1 Asta comando 1? e R.M. $344.74
Location: 4 Prev | Next Part: 103008 *Qty: 1 Asta comando 2? e 3? vel. $371.62
Location: 5 Prev | Next Part: 103009 *Qty: 1 Asta comando 4? e 5? vel. Unavailable
Location: 6 Prev | Next Part: 103010 *Qty: 1 Rullino arresto asta centrale Unavailable
Location: 7 Prev | Next Part: 103011 *Qty: 2 Rullino arresto aste laterali Unavailable
Location: 8 Prev | Next Part: 100749 *Qty: 3 Boccola per molla e sfera arresto aste $56.91
Location: 9 Prev | Next Part: 100750 *Qty: 3 Molla $1.60
Location: 10 Prev | Next Part: 101612 *Qty: 3 Sfera $1.23
Location: 11 Prev | Next Part: 103012 *Qty: 1 Asta comando cambio Superseded
Location: 12 Prev | Next Part: 16043521 *Qty: 7 Vite fissaggio forcelle e forcellini Superseded
Location: 13 Prev | Next Part: 10516670 *Qty: 7 Rondella $0.90
Location: 14 Prev | Next Part: 106217 *Qty: 1 Levetta comando forcellini $192.82
Location: 15 Prev | Next Part: 106218 *Qty: 1 Forcellini comando asta 1? e R.M. $195.86
Location: 16 Prev | Next Part: 106219 *Qty: 1 Forcellino comando asta 2? e 3? vel. Unavailable
Location: 17 Prev | Next Part: 106220 *Qty: 1 Forcellino comando asta 4? e 5? vel. Unavailable
Location: 18 Prev | Next Part: 103300 *Qty: 1 Leva comando cambio Unavailable
Location: 19 Prev | Next Part: 103301 *Qty: 1 Pomello per leva $95.00
Location: 20 Prev | Next Part: 103189 *Qty: 2 Giunto per barra comando cambio $268.59
Location: 21 Prev | Next Part: 103302 *Qty: 1 Barra comando cambio Unavailable
Location: 22 Prev | Next Part: 103304 *Qty: 1 Perno con sede snodo $165.49
Location: 23 Prev | Next Part: 103307 *Qty: 1 Scatola comando cambio Unavailable
Location: 23 Prev | Next Part: 106913 *Qty: 1 Sea tola comando cambio completa Unavailable
Location: 24 Prev | Next Part: 103311 *Qty: 1 Coperchio inferiore Unavailable
Location: 25 Prev | Next Part: 103309 *Qty: 1 Perno Unavailable
Location: 26 Prev | Next Part: 103312 *Qty: 1 Controdado per pomello
Vale fino ad esaurimento
Unavailable
Location: 26 Prev | Next Part: 108010 *Qty: 1 Controdado per pomello
Dopo esaurim.N.103312
$28.56
Location: 27 Prev | Next Part: 103313 *Qty: 1 Sede sferica $33.41
Location: 28 Prev | Next Part: 103314 *Qty: 1 Fondello inferiore $36.03
Location: 29 Prev | Next Part: 103315 *Qty: 1 Molla inferiore $57.51
Location: 30 Prev | Next Part: 103316 *Qty: 1 Dischetto ritegno molla inferiore $1.40
Location: 31 Prev | Next Part: 103317 *Qty: 1 Puntalino richiamo leva $16.69
Location: 32 Prev | Next Part: 103318 *Qty: 1 Molla laterale $4.69
Location: 33 Prev | Next Part: 103319 *Qty: 1 Dischetto ritegno molla laterale Unavailable
Location: 34 Prev | Next Part: 103320 *Qty: 1 Perno per registro Unavailable
Location: 35 Prev | Next Part: 103321 *Qty: 1 Tirante per registro Unavailable
Location: 36 Prev | Next Part: 103322 *Qty: 1 Cannotto protezione barra $301.50
Location: 37 Prev | Next Part: 103326 *Qty: 1 Anello di tenuta $0.90
Location: 38 Prev | Next Part: 103327 *Qty: 3 Spina unione glunti e barra $2.61
Location: 39 Prev | Next Part: 16137121 *Qty: 2 Grano di centraggio Unavailable
Location: 40 Prev | Next Part: 16136621 *Qty: 1 Vitef issaggio sea tola al telato $1.93
Location: 41 Prev | Next Part: 12801371 *Qty: 3 Vite Unavailable
Location: 42 Prev | Next Part: 13310805 *Qty: 4 Rondella Unavailable
Location: 43 Prev | Next Part: 12606771 *Qty: 2 Vite f issaggio selettore Unavailable
Location: 44 Prev | Next Part: 10791921 *Qty: 2 Rondella Superseded
Location: 45 Prev | Next Part: 10619301 *Qty: 1 Controdado per registro
Filetto Sx
Unavailable
Location: 47 Prev | Next Part: 10291490 *Qty: 1 Copiglia Unavailable
Location: 48 Prev | Next Part: 11059075 *Qty: 1 Fascetta $0.90
Location: 48 Prev | Next Part: 10734201 *Qty: 1 Rondella Unavailable
Location: 49 Prev | Next Part: 10791221 *Qty: 1 Anello elastico $4.03
Location: 50 Prev | Next Part: 103323 *Qty: 1 Controdado per registro
Filetto Dx
$26.88
Location: 51 Prev | Next Part: 103324 *Qty: 1 Perno per interruttore R.M. Unavailable
Location: 52 Prev | Next Part: 12601471 *Qty: 1 Interruttore per luce R.M. Superseded
Location: 53 Prev | Next Part: 103310 *Qty: 1 Rondella Unavailable
Location: 54 Prev | Next Part: 103022 *Qty: 1 Selettore marce $3.97
Location: 55 Prev | Next Part: - *Qty: 1 Anello di tenuta Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
