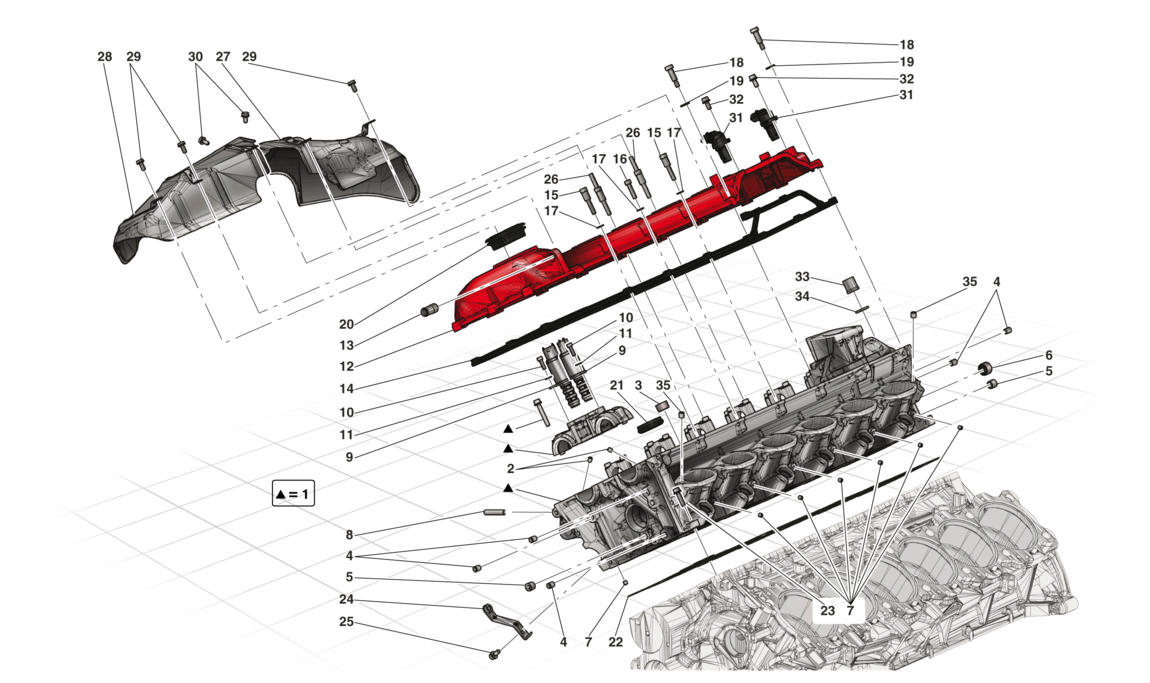

RIGHT HAND CYLINDER HEAD

Go to Split View

RIGHT HAND CYLINDER HEAD

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 287817 *Qty: 1 RH HEAD -Applicable up to engine No. 234043- Unavailable
Location: 1 Prev | Next Part: 296081 *Qty: 1 RH HEAD -Applicable from engine No. 234044- $3,365.23
Location: 2 Prev | Next Part: 256827 *Qty: 2 GRUB SCREW $6.56
Location: 3 Prev | Next Part: 127635 *Qty: 12 THREADED PLUG -M18 X 11 X 1.5- $3.81
Location: 4 Prev | Next Part: 282755 *Qty: 5 CAP Unavailable
Location: 5 Prev | Next Part: 282400 *Qty: 2 CAP $4.35
Location: 6 Prev | Next Part: 127635 *Qty: 1 THREADED PLUG -M18 X 11 X 1.5- $3.81
Location: 7 Prev | Next Part: 199760 *Qty: 7 THREADED PLUG -D. 6 X 1- $0.90
Location: 8 Prev | Next Part: 211641 *Qty: 12 STUD BOLT $1.08
Location: 9 Prev | Next Part: 296017 *Qty: 2 OIL PRESSURE REGULATOR VALVE $212.08
Location: 10 Prev | Next Part: 14304221 *Qty: 2 SCREW -M5 X 16- Unavailable
Location: 11 Prev | Next Part: 11181574 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 292565 *Qty: 1 RH CYLINDER HEAD COVER Unavailable
Location: 13 Prev | Next Part: 271521 *Qty: 1 CONNECTOR Unavailable
Location: 14 Prev | Next Part: 243800 *Qty: 1 RH HEAD COVER GASKET $74.77
Location: 15 Prev | Next Part: 300510 *Qty: 2 STUD BOLT $16.70
Location: 16 Prev | Next Part: 157218 *Qty: 14 SCREW -M6 X 25- $0.90
Location: 17 Prev | Next Part: 11197774 *Qty: 18 WASHER $0.90
Location: 18 Prev | Next Part: 293278 *Qty: 2 SCREW $16.08
Location: 19 Prev | Next Part: 11198074 *Qty: 2 WASHER $0.90
Location: 20 Prev | Next Part: 229353 *Qty: 1 SOLENOID VALVE GASKET $15.70
Location: 21 Prev | Next Part: 223982 *Qty: 6 SPARK PLUG TUBE SEAL $2.19
Location: 22 Prev | Next Part: 243803 *Qty: 1 RH HEAD-CRANKCASE GASKET $262.74
Location: 23 Prev | Next Part: 231620 *Qty: 1 SCREW -M6 X 25- $0.90
Location: 24 Prev | Next Part: 252099 *Qty: 1 SHIELD MOUNTING BRACKET Unavailable
Location: 25 Prev | Next Part: 231616 *Qty: 1 SCREW -M6 X 14- $0.90
Location: 26 Prev | Next Part: 269228 *Qty: 2 STUD BOLT -M6 X 25- $6.87
Location: 27 Prev | Next Part: 297952 *Qty: 1 REAR RH HEAD HEAT SHIELD $230.53
Location: 28 Prev | Next Part: 293212 *Qty: 1 FRONT RH HEAD HEAT SHIELD Unavailable
Location: 29 Prev | Next Part: 11628424 *Qty: 3 SCREW Unavailable
Location: 30 Prev | Next Part: 11625524 *Qty: 2 SCREW $0.90
Location: 31 Prev | Next Part: 224573 *Qty: 2 TIMING SENSOR $36.56
Location: 32 Prev | Next Part: 231616 *Qty: 2 SCREW -M6 X 14- $0.90
Location: 33 Prev | Next Part: 183524 *Qty: 14 NUT $3.79
Location: 34 Prev | Next Part: 151117 *Qty: 14 WASHER $1.23
Location: 35 Prev | Next Part: 102725 *Qty: 2 ALIGNMENT DOWEL $1.23

* Quantity shown indicates the number of pieces used in the diagram.
