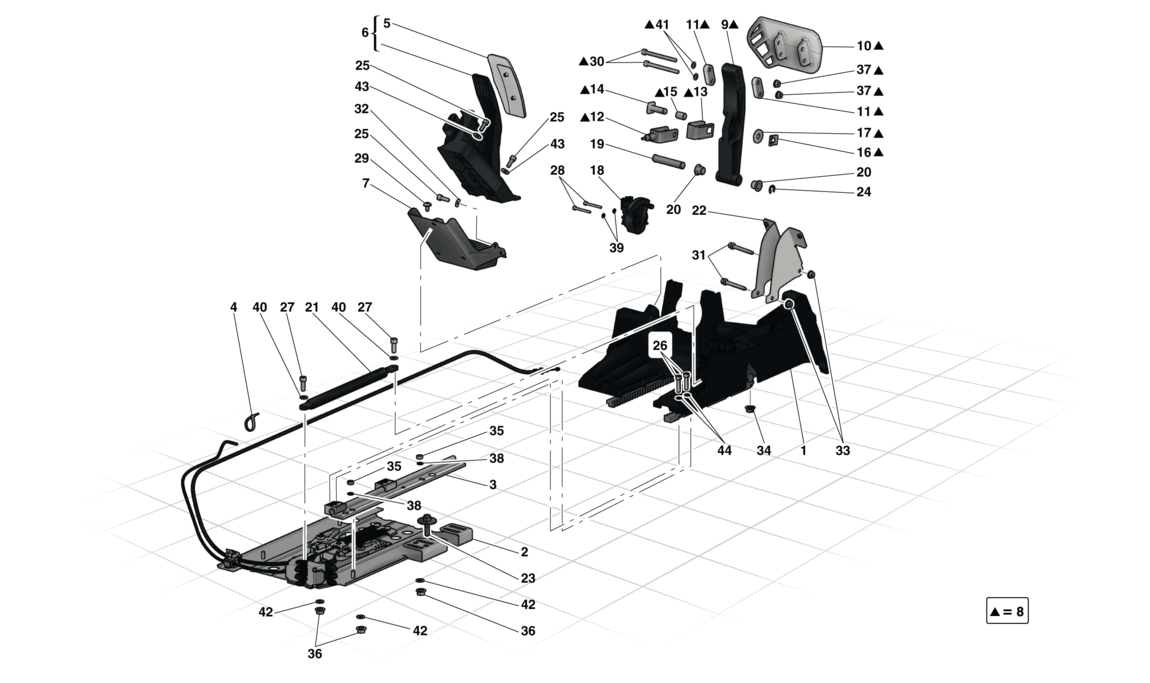

PEDAL BOARD

Location	Part #	Quantity*	Description	Price	Add To Cart
1	307879	1	PEDAL BOARD MOUNTING	$4,629.50
2	298474	1	PEDAL BOARD LOCK SYSTEM	$4,380.31
3	291389	2	COMPL. GUIDE	$914.49
4	206739	6	CABLE TIE	$11.41
5	283409	1	PEDAL COVER	$151.82
6	283408	1	COMPL. ACCELERATOR PEDAL	$465.86
7	301052	1	ACCELERATOR MOUNTING BRACKET	$258.80
8	287590	1	COMPL. BRAKE PEDAL	$7,549.04
9	303730	1	BRAKE PEDAL SHANK	$1,535.67
10	289404	1	BRAKE PEDAL COVER	$655.67
11	187017	2	BRAKE PEDAL COVER SPACER	$30.43
12	245178	1	BRAKE SERVO LINKAGE YOKE	$84.53
13	245179	1	CAGE	$27.38
14	245180	1	PIN	$89.71
15	260639	1	BUSHING	$19.77
16	11064176	1	SAFETY CLIP	$3.94
17	245181	1	RUBBER WASHER	$10.80
18	279682	1	LINEAR BRAKE PEDAL SENSOR	$633.34
19	288494	1	BRAKE PEDAL PIVOT PIN	$276.06
20	284392	2	BUSHING	$258.80
21	298681	1	AIR SPRING	$84.53
22	288452	1	LH FOOTREST BRACKET	$586.65
23	301076	2	SPECIAL STUD BOLT	$60.37
24	16160976	1	SNAP RING	$0.90
25	14305224	5	SCREW		Unavailable
26	14305424	8	SCREW		Superseded
27	14359224	2	SCREW		Unavailable
28	15210624	2	SCREW	$3.15
29	84873500	1	SCREW -Black-		Unavailable
30	14303924	2	SCREW		Unavailable
31	11569124	2	SCREW	$2.11
32	12648224	2	WASHER		Unavailable
33	14040614	2	NUT		Unavailable
34	14059311	1	NUT		Unavailable
35	15896214	4	NUT		Unavailable
36	177778	4	NUT	$1.97
37	14058421	2	NUT	$1.66
38	12639724	4	WASHER	$0.90
39	14497704	2	WASHER		Unavailable
40	14499421	2	WASHER		Unavailable
41	13579221	2	WASHER		Unavailable
42	12638524	4	WASHER	$0.90
43	12646624	3	WASHER		Unavailable
44	12648224	8	WASHER		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
