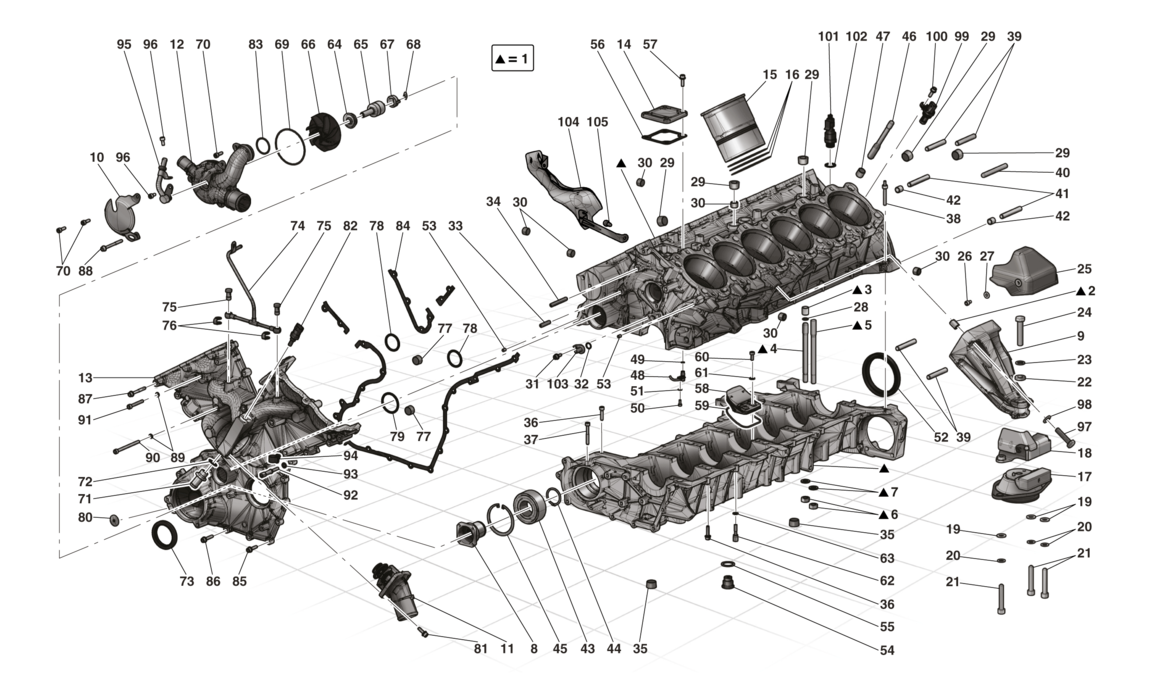

CRANKCASE

Go to Split View

CRANKCASE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 306547 *Qty: 1 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY $7,906.85
Location: 2 Prev | Next Part: 218440 *Qty: 8 THREADED INSERT Unavailable
Location: 3 Prev | Next Part: 176421 *Qty: 14 ALIGNMENT DOWEL $4.43
Location: 4 Prev | Next Part: 217796 *Qty: 14 STUD BOLT $11.78
Location: 5 Prev | Next Part: 190426 *Qty: 14 STUD BOLT $37.79
Location: 6 Prev | Next Part: 133988 *Qty: 28 NUT $0.90
Location: 7 Prev | Next Part: 178348 *Qty: 28 WASHER $0.90
Location: 8 Prev | Next Part: 295132 *Qty: 1 PUMP DRIVE JOINT Unavailable
Location: 9 Prev | Next Part: 267424 *Qty: 1 LH ENGINE STRUT Unavailable
Location: 9 Prev | Next Part: 298098 *Qty: 1 RH ENGINE STRUT $336.94
Location: 10 Prev | Next Part: 305332 *Qty: 1 PUMP GUARD $172.55
Location: 11 Prev | Next Part: 262913 *Qty: 1 THERMOSTAT/PRESSURE SWITCH $241.52
Location: 12 Prev | Next Part: 305356 *Qty: 1 PUMP COVER Unavailable
Location: 13 Prev | Next Part: 301653 *Qty: 1 FRONT CRANKCASE COVER $3,966.04
Location: 14 Prev | Next Part: 208451 *Qty: 1 INSPECTION HATCH COVER $30.28
Location: 15 Prev | Next Part: 266366 *Qty: 12 CYLINDER SLEEVE $275.49
Location: 16 Prev | Next Part: 186251 *Qty: 36 O-RING $2.73
Location: 17 Prev | Next Part: 271887 *Qty: 1 COMPL. LH BUSHING $403.15
Location: 17 Prev | Next Part: 271886 *Qty: 1 COMPL. RH BUSHING $403.15
Location: 18 Prev | Next Part: 291127 *Qty: 1 LH BRACKET $193.14
Location: 18 Prev | Next Part: 291126 *Qty: 1 RH BRACKET $193.14
Location: 19 Prev | Next Part: 14496624 *Qty: 6 WASHER $0.90
Location: 20 Prev | Next Part: 127497 *Qty: 6 WASHER $0.90
Location: 21 Prev | Next Part: 14308134 *Qty: 6 SCREW $2.41
Location: 22 Prev | Next Part: 10738021 *Qty: 2 WASHER $1.46
Location: 23 Prev | Next Part: 127498 *Qty: 2 WASHER $0.90
Location: 24 Prev | Next Part: 15215834 *Qty: 2 SCREW Unavailable
Location: 25 Prev | Next Part: 292705 *Qty: 2 HEAT SHIELD $199.38
Location: 26 Prev | Next Part: 14305024 *Qty: 4 SCREW $0.90
Location: 27 Prev | Next Part: 12644404 *Qty: 4 WASHER Superseded
Location: 28 Prev | Next Part: 134704 *Qty: 28 O-RING $0.90
Location: 29 Prev | Next Part: 14325340 *Qty: 5 CAP $8.69
Location: 30 Prev | Next Part: 164400 *Qty: 6 THREADED PLUG $3.97
Location: 31 Prev | Next Part: 282393 *Qty: 1 SCREW $0.90
Location: 32 Prev | Next Part: 137192 *Qty: 1 O-RING $0.90
Location: 33 Prev | Next Part: 13543124 *Qty: 1 STUD BOLT $0.90
Location: 34 Prev | Next Part: 13543824 *Qty: 1 STUD BOLT Superseded
Location: 35 Prev | Next Part: 14325340 *Qty: 2 CAP $8.69
Location: 36 Prev | Next Part: 231620 *Qty: 14 SCREW -M6 X 25- $0.90
Location: 37 Prev | Next Part: 231624 *Qty: 1 SCREW -M6 X 45- $0.90
Location: 38 Prev | Next Part: 219283 *Qty: 1 STUD BOLT $14.68
Location: 39 Prev | Next Part: 13546834 *Qty: 4 STUD BOLT $1.78
Location: 40 Prev | Next Part: 13547234 *Qty: 1 STUD BOLT $16.78
Location: 41 Prev | Next Part: 13546934 *Qty: 2 STUD BOLT $1.86
Location: 42 Prev | Next Part: 100052 *Qty: 2 ALIGNMENT DOWEL $2.42
Location: 43 Prev | Next Part: 128799 *Qty: 1 BEARING Unavailable
Location: 44 Prev | Next Part: 11068376 *Qty: 1 SEEGER RING $0.90
Location: 45 Prev | Next Part: 11061576 *Qty: 1 SEEGER RING Unavailable
Location: 46 Prev | Next Part: 217968 *Qty: 28 STUD BOLT $16.70
Location: 47 Prev | Next Part: 185360 *Qty: 4 ALIGNMENT DOWEL $3.06
Location: 48 Prev | Next Part: 264087 *Qty: 12 COMPL. PISTON COOLING NOZZLE Unavailable
Location: 49 Prev | Next Part: 164877 *Qty: 12 O-RING $0.90
Location: 50 Prev | Next Part: 14302921 *Qty: 12 SCREW $0.90
Location: 51 Prev | Next Part: 11181474 *Qty: 12 WASHER $0.90
Location: 52 Prev | Next Part: 240214 *Qty: 1 GASKET $55.47
Location: 53 Prev | Next Part: 175611 *Qty: 2 ALIGNMENT DOWEL $1.81
Location: 54 Prev | Next Part: 104280 *Qty: 1 MAGNETIC PLUG $5.72
Location: 55 Prev | Next Part: 10261860 *Qty: 1 GASKET $0.90
Location: 56 Prev | Next Part: 248026 *Qty: 1 GASKET $3.05
Location: 57 Prev | Next Part: 231618 *Qty: 4 SCREW -M6 X 20- $0.90
Location: 58 Prev | Next Part: 255136 *Qty: 6 COMPLETE VALVE HOLDER $228.28
Location: 59 Prev | Next Part: 154691 *Qty: 6 GASKET $1.81
Location: 60 Prev | Next Part: 13026924 *Qty: 12 SCREW $0.90
Location: 61 Prev | Next Part: 11197774 *Qty: 12 WASHER $0.90
Location: 62 Prev | Next Part: 214412 *Qty: 3 STUD BOLT $11.70
Location: 63 Prev | Next Part: 11197774 *Qty: 3 WASHER $0.90
Location: 64 Prev | Next Part: 252192 *Qty: 1 WATER PUMP GASKET $249.20
Location: 65 Prev | Next Part: 295219 *Qty: 1 WATER PUMP BEARING Unavailable
Location: 66 Prev | Next Part: 253795 *Qty: 1 WATER PUMP ROTOR Unavailable
Location: 67 Prev | Next Part: 295218 *Qty: 1 JOINT Unavailable
Location: 68 Prev | Next Part: 255939 *Qty: 1 CLIP Unavailable
Location: 69 Prev | Next Part: 253797 *Qty: 1 GASKET $6.84
Location: 70 Prev | Next Part: 231617 *Qty: 3 SCREW -M6 X 18- $0.90
Location: 71 Prev | Next Part: 253823 *Qty: 1 CONNECTOR $106.84
Location: 72 Prev | Next Part: 11270550 *Qty: 1 O-RING $0.90
Location: 73 Prev | Next Part: 210359 *Qty: 1 GASKET Unavailable
Location: 74 Prev | Next Part: 299382 *Qty: 1 VAPOUR VENT PIPE -No longer supplied- -Replaced by 306599- Unavailable
Location: 74 Prev | Next Part: 306599 *Qty: 1 VAPOUR VENT PIPE $229.28
Location: 75 Prev | Next Part: 211847 *Qty: 2 PIPE UNION $12.20
Location: 76 Prev | Next Part: 292186 *Qty: 2 DUAL GASKET -No longer supplied- -Replaced by 10260160- $3.12
Location: 76 Prev | Next Part: 10260160 *Qty: 4 GASKET $0.97
Location: 77 Prev | Next Part: 127635 *Qty: 2 THREADED PLUG -M18 X 11 X 1.5- $3.81
Location: 78 Prev | Next Part: 183010 *Qty: 2 O-RING $1.61
Location: 79 Prev | Next Part: 289278 *Qty: 1 O-RING Unavailable
Location: 80 Prev | Next Part: 10159001 *Qty: 1 CAP Unavailable
Location: 81 Prev | Next Part: 231618 *Qty: 4 SCREW -M6 X 20- $0.90
Location: 82 Prev | Next Part: 180137 *Qty: 1 WATER/OIL TEMPERATURE SENSOR $26.68
Location: 83 Prev | Next Part: 271463 *Qty: 1 O-RING $1.63
Location: 84 Prev | Next Part: 290006 *Qty: 1 GASKET BETWEEN CRANKCASE AND FRONT COVER $34.68
Location: 85 Prev | Next Part: 231620 *Qty: 5 SCREW -M6 X 25- $0.90
Location: 86 Prev | Next Part: 231621 *Qty: 8 SCREW -M6 X 30- $0.90
Location: 87 Prev | Next Part: 231625 *Qty: 9 SCREW -M6 X 50- $0.90
Location: 88 Prev | Next Part: 255495 *Qty: 1 SCREW Unavailable
Location: 89 Prev | Next Part: 216292 *Qty: 5 GASKET $3.59
Location: 90 Prev | Next Part: 10589624 *Qty: 3 SCREW $0.90
Location: 91 Prev | Next Part: 14305924 *Qty: 2 SCREW Superseded
Location: 92 Prev | Next Part: 260965 *Qty: 1 STUD BOLT -M6 X 23- Unavailable
Location: 93 Prev | Next Part: 11197774 *Qty: 1 WASHER $0.90
Location: 94 Prev | Next Part: 198264 *Qty: 1 CLIP $3.36
Location: 95 Prev | Next Part: 302329 *Qty: 1 PUMP INLET PIPE $509.02
Location: 96 Prev | Next Part: 233600 *Qty: 2 SCREW -M6 X 12- $0.90
Location: 97 Prev | Next Part: 11234734 *Qty: 8 SCREW $0.91
Location: 98 Prev | Next Part: 11190574 *Qty: 8 WASHER $0.90
Location: 99 Prev | Next Part: 276125 *Qty: 1 RPM SENSOR $125.13
Location: 100 Prev | Next Part: 2316181 *Qty: 1 SCREW -M6 X 20- Unavailable
Location: 101 Prev | Next Part: 2012071 *Qty: 1 PRESSURE TRANSMITTER -No longer supplied- -Replaced by 304074- Unavailable
Location: 101 Prev | Next Part: 3040741 *Qty: 1 PRESSURE TRANSMITTER Unavailable
Location: 102 Prev | Next Part: 102599601 *Qty: 1 GASKET -No longer supplied- Unavailable
Location: 103 Prev | Next Part: 2949441 *Qty: 1 COMPL. CHAIN COOLING NOZZLE Unavailable
Location: 104 Prev | Next Part: 2902951 *Qty: 1 HEAT SHIELD Unavailable
Location: 105 Prev | Next Part: 2336002 *Qty: 2 SCREW -M6 X 12- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
