BRAKE SYSTEM

Go to Split View

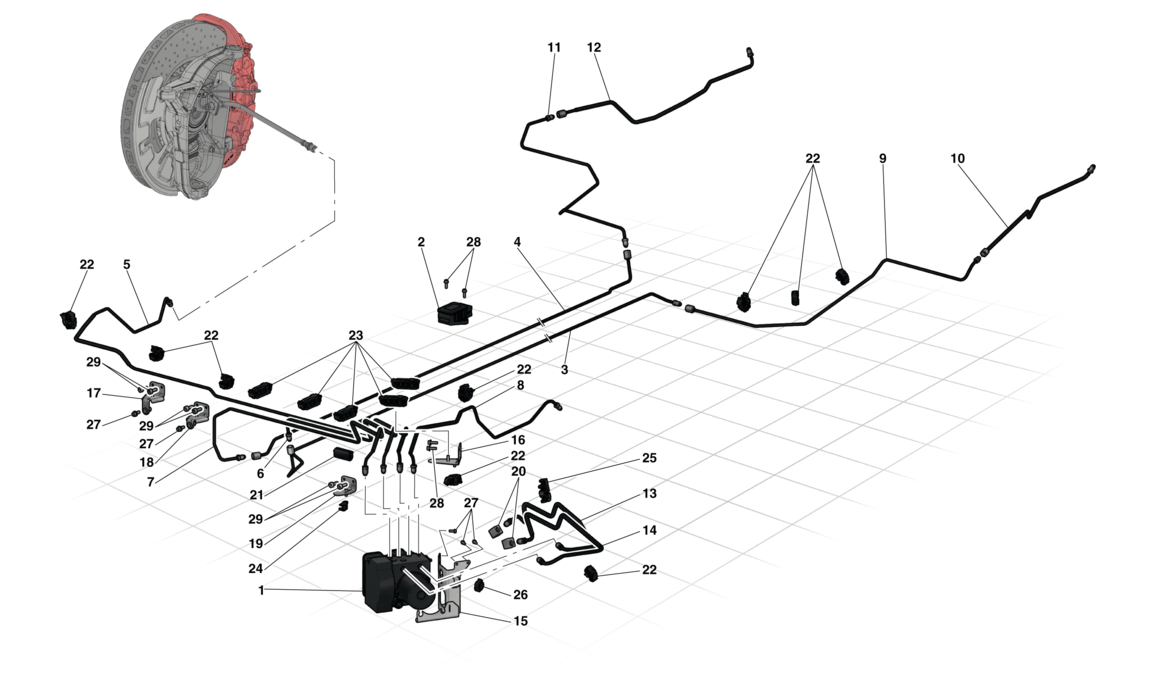

BRAKE SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 290302 1 HYDRAULIC UNIT $5,189.80
2 206070 1 YAW SENSOR $329.09
3 292639 1 UNDERBODY BRAKE PIPE TO LH REAR WHEEL $46.02
4 292737 1 UNDERBODY BRAKE PIPE TO RH REAR WHEEL $46.02
5 295854 1 BRAKE PIPE FROM RH FRONT WHEEL TO RH FRONT CORNER $88.16
6 295853 1 BRAKE PIPE FROM LH REAR WHEEL TO FIREWALL JUNCTION $51.87
7 295849 1 BRAKE PIPE FROM RH REAR WHEEL TO FIREWALL JUNCTION $51.87
8 295860 1 BRAKE PIPE FROM LH FRONT WHEEL TO LH FRONT CORNER $88.16
9 298238 1 LH REAR BRAKE PIPE FROM UNDERBODY TO TRELLIS $33.70
10 304392 1 LH REAR BRAKE PIPE ON REAR TRELLIS $44.92
11 304321 1 RH REAR BRAKE PIPE FROM UNDERBODY TO TRELLIS $43.69
12 304322 1 RH REAR BRAKE PIPE ON REAR TRELLIS $44.60
13 300877 1 MC1 BRAKE PIPE $54.95
14 300878 1 MC2 BRAKE PIPE $52.88
15 303016 1 ESP ECU AND POWER STEERING PUMP MOUNTING BRACKET $649.44
16 295870 1 BRACKET FASTENING BRAKE PIPES TO FRONT SUBCHASSIS $38.25
17 296740 1 FRONT BRAKE PIPE BRACKET FOR RH FRONT LIFT $77.79
18 296741 1 FRONT BRAKE PIPE BRACKET FOR LH FRONT LIFT $77.79
19 296951 1 FRONT BRAKE PIPE BRACKET FOR LH FRONT LIFT $51.85
20 293189 2 2-WAY CONNECTOR $81.69
21 262737 1 RUBBER RETAINER $6.33
22 234285 9 CLIP Unavailable
23 234286 5 CLIP $1.93
24 235682 1 CLIP Unavailable
25 292487 1 CLIP Unavailable
26 199592 1 CLIP $4.16
27 302574 5 ERGAL SCREW -M6 X 15- $6.96
28 302723 4 SCREW -M5 X 15- $6.13
29 14304124 6 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
