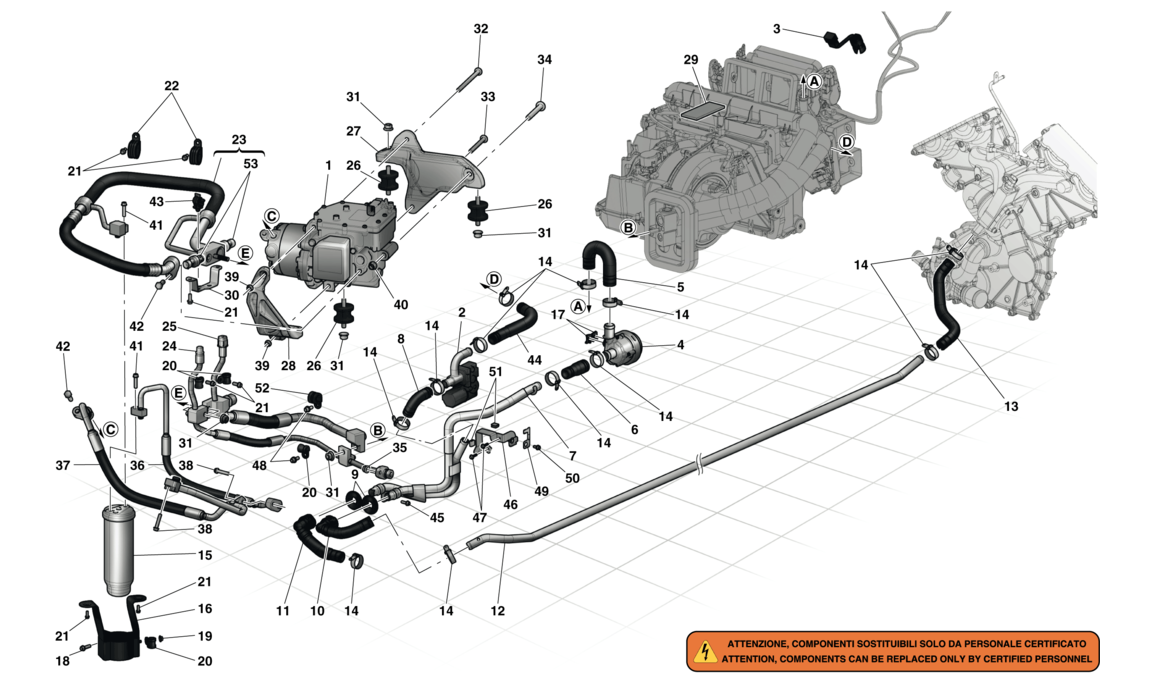

AC SYSTEM

Go to Split View

AC SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 304675 *Qty: 1 AIR CONDITIONING COMPRESSOR $5,887.41
Location: 2 Prev | Next Part: 67635900 *Qty: 1 RH CYLINDER BANK TGK VALVE $198.78
Location: 3 Prev | Next Part: 236847 *Qty: 1 TEMPERATURE SENSOR $84.35
Location: 4 Prev | Next Part: 291349 *Qty: 1 IDLE WATER RECIRCULATION PUMP $3,733.04
Location: 5 Prev | Next Part: 302805 *Qty: 1 U-PIPE FROM PUMP TO AC UNIT $257.39
Location: 6 Prev | Next Part: 291332 *Qty: 1 IDLE PUMP INLET CONNECTOR PIPE $160.47
Location: 7 Prev | Next Part: 302813 *Qty: 1 WATER PIPE FROM TGK TO IDLE PUMP $529.49
Location: 8 Prev | Next Part: 240729 *Qty: 1 CONNECTOR PIPE $15.55
Location: 9 Prev | Next Part: 81895900 *Qty: 2 GASKET $9.37
Location: 10 Prev | Next Part: 284800 *Qty: 1 AC HEATING PIPE CONNECTOR ELBOW ON CHASSIS BULKHEAD -Applicable until depletion- Unavailable
Location: 10 Prev | Next Part: 308291 *Qty: 1 AC HEATING PIPE CONNECTOR ELBOW ON CHASSIS BULKHEAD -Applicable after depletion of 284800- $995.44
Location: 11 Prev | Next Part: 284811 *Qty: 1 CONNECTOR ELBOW FROM HEATER TO RADIATOR PIPE $1,015.32
Location: 12 Prev | Next Part: 284781 *Qty: 1 UNDERBODY WATER PIPE FOR AC HEATING $179.43
Location: 13 Prev | Next Part: 291671 *Qty: 1 FLEXIBLE HOSE FROM THERMOSTAT TO UNDERBODY $220.31
Location: 14 Prev | Next Part: 262110 *Qty: 12 COLLAR CLAMP -Applicable until depletion- Unavailable
Location: 14 Prev | Next Part: 262109 *Qty: 12 COLLAR CLAMP -Applicable after depletion of 262110- $1.22
Location: 15 Prev | Next Part: 67085100 *Qty: 1 GAS FILTER $73.92
Location: 16 Prev | Next Part: 294924 *Qty: 1 DEHYDRATOR FILTER BRACKET $87.22
Location: 17 Prev | Next Part: 82268600 *Qty: 2 CLIP $2.28
Location: 18 Prev | Next Part: 302655 *Qty: 1 ERGAL SCREW -M6 X 20- $13.08
Location: 19 Prev | Next Part: 13046014 *Qty: 1 NUT Unavailable
Location: 20 Prev | Next Part: 302394 *Qty: 4 BRACKET WITH SHEATH $42.36
Location: 21 Prev | Next Part: 302574 *Qty: 8 ERGAL SCREW -M6 X 15- $6.68
Location: 22 Prev | Next Part: 302979 *Qty: 2 BRACKET WITH SHEATH -No longer supplied- -Replaced by 307048- Unavailable
Location: 22 Prev | Next Part: 307048 *Qty: 2 BRACKET WITH SHEATH $49.71
Location: 23 Prev | Next Part: 301137 *Qty: 1 COMPL. GAS PIPE $1,488.33
Location: 24 Prev | Next Part: 304904 *Qty: 1 GAS DELIVERY PIPE $576.64
Location: 25 Prev | Next Part: 303479 *Qty: 1 GAS RETURN PIPE $573.42
Location: 26 Prev | Next Part: 303692 *Qty: 3 PLUG $34.27
Location: 27 Prev | Next Part: 298659 *Qty: 1 MOUNTING SHELL WITH 3 HOLES $535.82
Location: 28 Prev | Next Part: 298660 *Qty: 1 MOUNTING SHELL WITH 2 HOLES $548.28
Location: 29 Prev | Next Part: 295279 *Qty: 1 PLUG $1.32
Location: 30 Prev | Next Part: 296642 *Qty: 1 BRACKET FASTENING PIPES TO FRONT STRUT $74.77
Location: 31 Prev | Next Part: 14040711 *Qty: 5 NUT $0.90
Location: 32 Prev | Next Part: 298624 *Qty: 1 TITANIUM SCREW -M8 X 120- $109.52
Location: 33 Prev | Next Part: 298626 *Qty: 1 TITANIUM SCREW -M8 X 80- $78.37
Location: 34 Prev | Next Part: 298627 *Qty: 1 TITANIUM SCREW -M10 X 75- $104.53
Location: 35 Prev | Next Part: 194031 *Qty: 1 NUT $0.90
Location: 36 Prev | Next Part: 304040 *Qty: 1 GAS DELIVERY PIPE FROM CONDENSER TO DEHYDRATOR FILTER $400.09
Location: 37 Prev | Next Part: 304039 *Qty: 1 GAS RETURN PIPE FROM CONDENSER TO COMPRESSOR $594.12
Location: 38 Prev | Next Part: 302657 *Qty: 2 ERGAL SCREW -M6 X 30- $10.78
Location: 39 Prev | Next Part: 177778 *Qty: 2 NUT $1.60
Location: 40 Prev | Next Part: 133216 *Qty: 1 NUT $11.43
Location: 41 Prev | Next Part: 302656 *Qty: 2 ERGAL SCREW -M6 X 25- $12.35
Location: 42 Prev | Next Part: 16043624 *Qty: 2 SCREW -M8 X 25- $0.90
Location: 43 Prev | Next Part: 250318 *Qty: 1 CLIP $0.90
Location: 44 Prev | Next Part: 302812 *Qty: 1 CONNECTOR PIPE $245.44
Location: 45 Prev | Next Part: 302723 *Qty: 1 SCREW -M5 X 15- $5.62
Location: 46 Prev | Next Part: 294818 *Qty: 1 TGK VALVE FASTENER BRACKET $74.77
Location: 47 Prev | Next Part: 68391900 *Qty: 2 SCREW $1.55
Location: 48 Prev | Next Part: 248334 *Qty: 2 SCREW Superseded
Location: 49 Prev | Next Part: 162606 *Qty: 1 CLIP $1.61
Location: 50 Prev | Next Part: 302659 *Qty: 1 ERGAL SCREW -M5 X 10- $13.60
Location: 51 Prev | Next Part: 82329200 *Qty: 2 ANTI-VIBRATION RUBBER BLOCK $1.29
Location: 52 Prev | Next Part: 303122 *Qty: 1 BRACKET WITH SHEATH $43.62
Location: 53 Prev | Next Part: 80552400 *Qty: 1 HIGH PRESSURE TRANSDUCER $84.69
Location: 53 Prev | Next Part: 86249300 *Qty: 1 LOW PRESSURE TRANSDUCER $373.76

* Quantity shown indicates the number of pieces used in the diagram.
