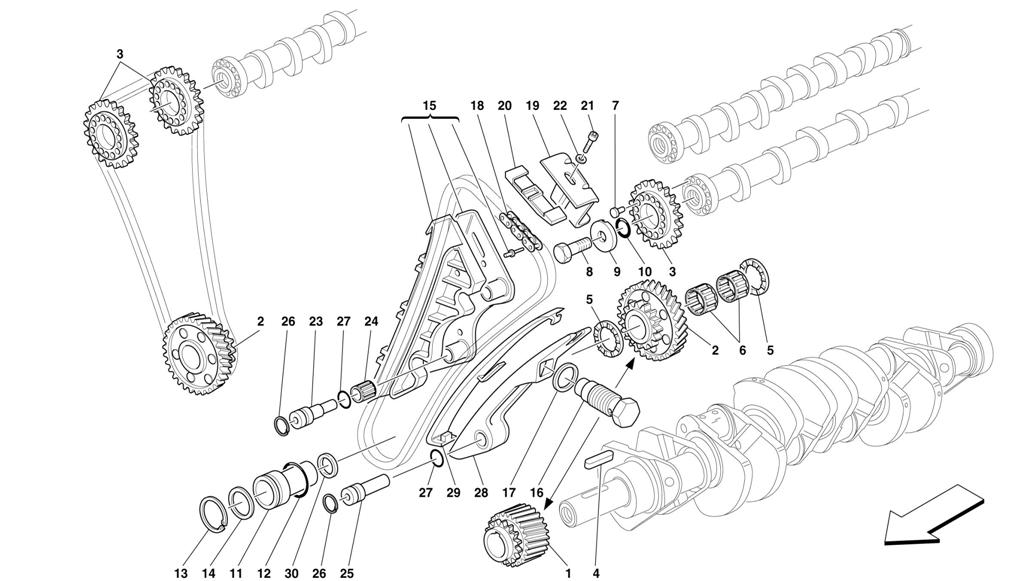

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165976 *Qty: 1 CONTROL TIMING GEAR $188.22
Location: 2 Prev | Next Part: 165919 *Qty: 2 GEAR ASSEMBLY $394.13
Location: 3 Prev | Next Part: 154171 *Qty: 4 TOOTHED WHEEL $712.55
Location: 4 Prev | Next Part: 159835 *Qty: 1 KEY $7.31
Location: 5 Prev | Next Part: 163016 *Qty: 4 ROLLER CAGE $7.32
Location: 6 Prev | Next Part: 165788 *Qty: 4 ROLLER CASING $30.71
Location: 7 Prev | Next Part: 106203 *Qty: 4 CENTERING DOWEL $6.86
Location: 8 Prev | Next Part: 146540 *Qty: 4 SCREW $7.48
Location: 9 Prev | Next Part: 117274 *Qty: 4 WASHER $3.70
Location: 10 Prev | Next Part: 114808 *Qty: 4 O.R. GASKET $4.81
Location: 11 Prev | Next Part: 162887 *Qty: 2 PIN $125.37
Location: 12 Prev | Next Part: 111000 *Qty: 2 O.R. GASKET $1.28
Location: 13 Prev | Next Part: 11059776 *Qty: 2 SEEGER RING $0.90
Location: 14 Prev | Next Part: 166446 *Qty: 2 SPACER WASHER -Th. mm. 0,45 $11.83
Location: 14 Prev | Next Part: 164297 *Qty: 2 SPACER WASHER -Th. mm. 0,50 $7.90
Location: 14 Prev | Next Part: 164347 *Qty: 2 SPACER WASHER -Th. mm. 0,55 $11.83
Location: 14 Prev | Next Part: 164348 *Qty: 2 SPACER WASHER -Th. mm. 0,60 $7.90
Location: 15 Prev | Next Part: 158173 *Qty: 2 GUIDE SHOE ASSEMBLY $1,061.44
Location: 16 Prev | Next Part: 152502 *Qty: 2 CHAIN TENSIONER Call
Location: 17 Prev | Next Part: 10261860 *Qty: 2 GASKET $0.90
Location: 18 Prev | Next Part: 151784 *Qty: 2 TIMING CONTROL CHAIN $38.91
Location: 19 Prev | Next Part: 158175 *Qty: 2 UPPER GUIDE SHOE BASE Call
Location: 20 Prev | Next Part: 158176 *Qty: 2 UPPER SLIDE GUIDE Call
Location: 21 Prev | Next Part: 14304124 *Qty: 4 SCREW $0.90
Location: 22 Prev | Next Part: 12604179 *Qty: 4 WASHER $1.20
Location: 23 Prev | Next Part: 152640 *Qty: 4 PIN FOR FIXED GUIDE SHOE $50.07
Location: 24 Prev | Next Part: 154172 *Qty: 4 BALANCING RING $5.11
Location: 25 Prev | Next Part: 152639 *Qty: 2 PIN FOR MOBILE GUIDE SHOE $43.19
Location: 26 Prev | Next Part: 11057576 *Qty: 6 SEEGER $0.90
Location: 27 Prev | Next Part: 137192 *Qty: 7 O.R. GASKET $0.90
Location: 28 Prev | Next Part: 158077 *Qty: 2 MOBILE GUIDE SHOE BASE Call
Location: 29 Prev | Next Part: 158078 *Qty: 2 MOBILE GUIDE SHOE Call
Location: 30 Prev | Next Part: 169203 *Qty: 2 SPACER WASHER -Th. mm. 1,30 $13.14
Location: 30 Prev | Next Part: 169204 *Qty: 2 SPACER WASHER -Th. mm. 1,35 $12.01
Location: 30 Prev | Next Part: 169205 *Qty: 2 SPACER WASHER -Th. mm. 1,40 $12.73
Location: 30 Prev | Next Part: 169206 *Qty: 2 SPACER WASHER -Th. mm. 1,45 $12.04
Location: 30 Prev | Next Part: 169207 *Qty: 2 SPACER WASHER -Th. mm. 1,50 $7.16
Location: 30 Prev | Next Part: 170799 *Qty: 2 SPACER WASHER -Th. mm. 1,325 $40.03
Location: 30 Prev | Next Part: 170800 *Qty: 2 SPACER WASHER -Th. mm. 1,375 $40.03
Location: 30 Prev | Next Part: 170801 *Qty: 2 SPACER WASHER -Th. mm. 1,425 $40.03
Location: 30 Prev | Next Part: 170802 *Qty: 2 SPACER WASHER -Th. mm. 1,475 $40.03

* Quantity shown indicates the number of pieces used in the diagram.
