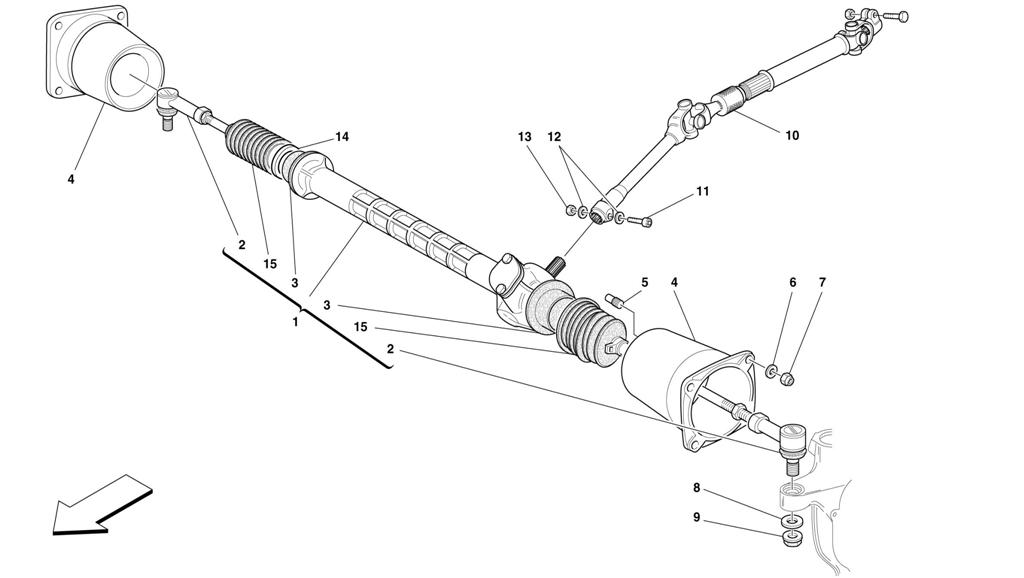

STEERING BOX AND CARDANIC TRANSMISSION

Go to Split View

STEERING BOX AND CARDANIC TRANSMISSION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 163893 *Qty: 1 STEERING BOX Unavailable
Location: 2 Prev | Next Part: 154300 *Qty: 2 BALL JOINT $567.29
Location: 3 Prev | Next Part: 151215 *Qty: 2 RUBBER $60.38
Location: 4 Prev | Next Part: 151143 *Qty: 2 STEERING BOX SUPPORT $1,011.07
Location: 5 Prev | Next Part: 151145 *Qty: 1 THREADED PIN $8.88
Location: 6 Prev | Next Part: 10730321 *Qty: 8 WASHER Unavailable
Location: 7 Prev | Next Part: 133215 *Qty: 8 NUT $3.09
Location: 7 Prev | Next Part: 101139 *Qty: 8 NUT -As an alternative- $0.90
Location: 8 Prev | Next Part: 155002 *Qty: 2 WASHER $16.58
Location: 9 Prev | Next Part: 149807 *Qty: 2 NUT $1.25
Location: 10 Prev | Next Part: 150774 *Qty: 1 STEERING CARDANIC TRASMISSION $1,757.85
Location: 11 Prev | Next Part: 125518 *Qty: 1 SCREW $1.92
Location: 12 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: 102948 *Qty: 1 NUT Superseded
Location: 14 Prev | Next Part: 170755 *Qty: 1 STEERING BOX THICKNESS Sp. mm. 1,5 -Possible fittting $24.12
Location: 14 Prev | Next Part: 170756 *Qty: 1 STEERING BOX THICKNESS Sp. mm. 2 -Possible fittting $24.99
Location: 15 Prev | Next Part: 160674 *Qty: 2 RUBBER BOOT $100.73

* Quantity shown indicates the number of pieces used in the diagram.
