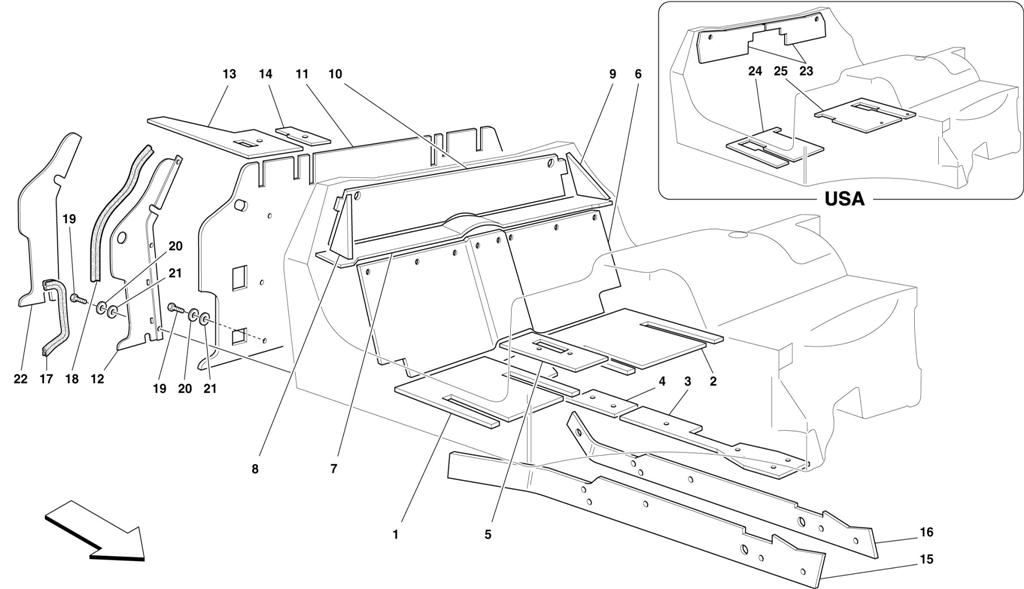

PASSENGERS COMPARTMENT INSULATIONS

Go to Split View

PASSENGERS COMPARTMENT INSULATIONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64763500 *Qty: 1 R.H. UNDER SEAT INSULATION -Not for USA Call
Location: 2 Prev | Next Part: 64763400 *Qty: 1 L.H. UNDER SEAT INSULATION -Not for USA $240.22
Location: 3 Prev | Next Part: 64985300 *Qty: 1 TUNNEL FRONT CENTRAL INSULATION $187.46
Location: 4 Prev | Next Part: 64985400 *Qty: 1 TUNNEL REAR CENTRAL INSULATION $199.59
Location: 5 Prev | Next Part: 64917400 *Qty: 1 TUNNEL REAR UPPER INSULATION $208.70
Location: 6 Prev | Next Part: 64162100 *Qty: 3 REAR WALL INSULATION $691.30
Location: 7 Prev | Next Part: 64917300 *Qty: 3 UNDER REAR WINDOW PANEL UPPER INSULATION $193.64
Location: 8 Prev | Next Part: 64917100 *Qty: 3 UNDER REAR WINDOW R.H. VERTICAL LATERAL INSULATION $425.65
Location: 9 Prev | Next Part: 64917200 *Qty: 3 UNDER REAR WINDOW L.H. VERTICAL LATERAL INSULATION $193.64
Location: 10 Prev | Next Part: 64917000 *Qty: 3 UNDER REAR WINDOW VERTICAL INSULATION -Not for USA $193.64
Location: 11 Prev | Next Part: 64162800 *Qty: 1 CENTRAL INSULATION FOR ENGINE COMPARTMENT Call
Location: 12 Prev | Next Part: 64162400 *Qty: 1 R.H. WALL ENGINE COMPARTMENT LATERAL ENCLOSURE $1,012.25
Location: 12 Prev | Next Part: 64162500 *Qty: 1 L.H. WALL ENGINE COMPARTMENT LATERAL ENCLOSURE $1,012.25
Location: 13 Prev | Next Part: 64985600 *Qty: 1 R.H. BRACKET INSULATION $156.73
Location: 13 Prev | Next Part: 64985700 *Qty: 1 L.H. BRACKET INSULATION $156.73
Location: 14 Prev | Next Part: 64985900 *Qty: 1 R.H. INNER BRACKET INSULATION $121.70
Location: 14 Prev | Next Part: 64985800 *Qty: 1 R.H. INNER BRACKET INSULATION $121.70
Location: 15 Prev | Next Part: 64985500 *Qty: 1 R.H. TUNNEL INSULATION $233.56
Location: 16 Prev | Next Part: 64985200 *Qty: 1 L.H. TUNNEL INSULATION $230.42
Location: 17 Prev | Next Part: 64990300 *Qty: 2 LOWER GASKET $6.89
Location: 18 Prev | Next Part: 64162600 *Qty: 2 UPPER GASKET $7.06
Location: 19 Prev | Next Part: 10902024 *Qty: 6 SCREW $0.90
Location: 20 Prev | Next Part: 12601274 *Qty: 6 WASHER $0.90
Location: 21 Prev | Next Part: 12644424 *Qty: 6 WASHER $0.90
Location: 22 Prev | Next Part: 64790700 *Qty: 1 R.H. LATERAL INSULATION $223.49
Location: 22 Prev | Next Part: 64790800 *Qty: 1 L.H. LATERAL INSULATION $223.49

* Quantity shown indicates the number of pieces used in the diagram.
