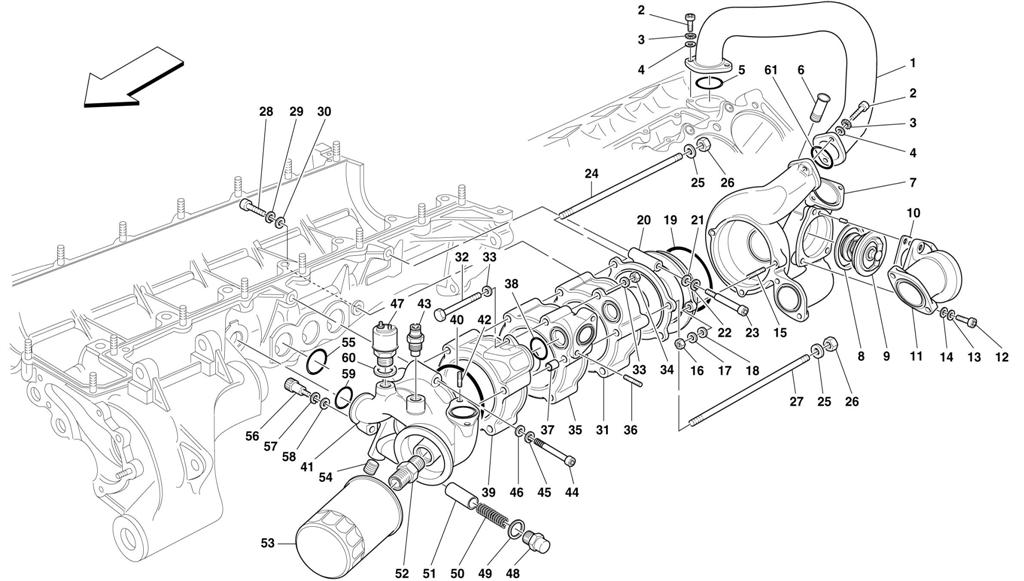

OIL/WATER PUMP - BODY AND ACCESSORIES

chevron-left
chevron-right
Go to Split View view-grid

OIL/WATER PUMP - BODY AND ACCESSORIES

Location Part # Quantity* Description Price Add To Cart
1 162829 1 WATER DELIVERY TUBE TO CRANKCASE $586.65
2 14305224 4 SCREW Unavailable
3 12605371 4 WASHER Unavailable
4 12639724 4 WASHER $0.90
5 154191 1 GASKET $1.81
6 141068 1 UNION $258.80
7 164339 1 WATER PUMP BODY $1,996.95
8 137873 1 GASKET $5.68
9 168200 1 THERMOSTAT Unavailable
10 164493 1 GASKET Unavailable
11 164424 1 THERMOSTATIC VALVE COVER $1,014.71
12 14432224 3 SCREW Superseded
13 12605371 3 WASHER Unavailable
14 12639724 3 WASHER $0.90
15 13540924 3 STUD $54.79
16 132877 3 NUT -As an alternative- Superseded
16 10720121 3 NUT Unavailable
17 12601274 3 WASHER $0.90
18 12604274 3 WASHER $0.90
19 161619 1 GASKET $21.29
20 164360 1 PUMPS INTERMEDIATE BODY $1,190.57
21 106352 1 WASHER Unavailable
22 10569474 1 WASHER Unavailable
23 149537 1 SCREW $8.32
24 149769 2 STUD $87.19
25 12604474 4 WASHER $0.90
26 133215 4 NUT Superseded
27 149768 2 STUD $101.78
28 14306624 1 SCREW Unavailable
29 127496 1 WASHER $0.90
30 12604474 1 WASHER $0.90
31 155048 1 R.H. RECOVERY OIL PUMP BODY $1,613.50
32 10901924 1 SCREW Unavailable
33 12604274 2 WASHER $0.90
34 132877 1 NUT Superseded
35 155083 1 CENTRAL RECOVERY OIL PUMP BODY $1,746.19
36 11500224 2 STUD Unavailable
37 102032 8 CENTERING DOWEL $5.32
38 167135 2 GASKET $5.01
39 155049 1 L.H. RECOVERY OIL PUMP BODY $1,630.62
40 150302 4 GASKET $3.19
41 160566 1 DELIVERY OIL PUMP BODY $2,505.30
42 11500224 2 STUD Unavailable
43 104628 1 OIL THERMISTOR $115.59
44 14359324 1 SCREW Unavailable
45 127496 1 WASHER $0.90
46 12604474 1 WASHER $0.90
47 135940 1 SENDER UNIT $129.00
48 129322 1 PLUG $5.50
49 10257460 1 GASKET $1.56
50 137614 1 SPRING Unavailable
51 160705 1 REGISTER $80.21
52 160505 1 UNION $50.51
53 197654 1 OIL FILTER CARTRIDGE $71.44
54 10269650 1 PLUG $3.19
55 111000 3 GASKET $1.66
56 149538 1 SCREW $6.09
57 10569474 1 WASHER Unavailable
58 106352 1 WASHER Unavailable
59 162517 1 GASKET $7.59
60 10259960 1 GASKET $0.90
61 152054 3 GASKET $4.10

* Quantity shown indicates the number of pieces used in the diagram.
