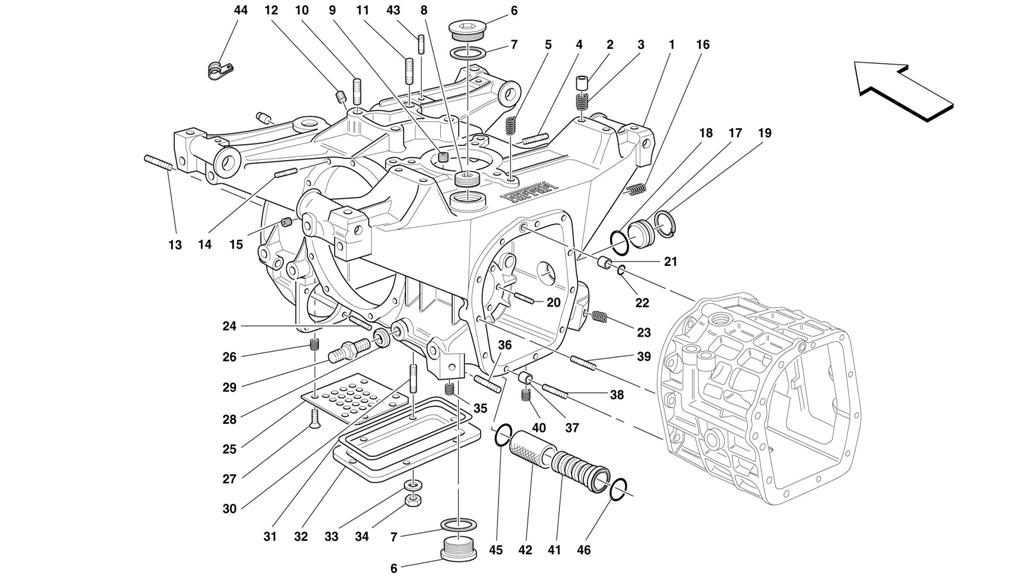

GEARBOXES/DIFFERENTIAL HOUSING

Go to Split View

GEARBOXES/DIFFERENTIAL HOUSING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 156787 *Qty: 1 GEARBOXES ASSEMBLY $17,395.21
Location: 1 Prev | Next Part: 155098 *Qty: 1 FRONT GEARBOX -Not as spare part -With the assembly 156787 Unavailable
Location: 2 Prev | Next Part: 150961 *Qty: 4 CENTERING DOWEL $37.91
Location: 3 Prev | Next Part: 13528370 *Qty: 4 THREADED INSERT $2.27
Location: 4 Prev | Next Part: 13541424 *Qty: 1 STUD $0.90
Location: 5 Prev | Next Part: 13525870 *Qty: 6 THREADED INSERT $3.06
Location: 6 Prev | Next Part: 154387 *Qty: 3 THREADED PLUG $71.01
Location: 7 Prev | Next Part: 164023 *Qty: 3 GASKET Unavailable
Location: 8 Prev | Next Part: 10269950 *Qty: 2 THREADED PLUG Unavailable
Location: 9 Prev | Next Part: 14326150 *Qty: 2 THREADED PLUG Unavailable
Location: 10 Prev | Next Part: 13453534 *Qty: 3 STUD $28.68
Location: 11 Prev | Next Part: 13453634 *Qty: 1 STUD $17.04
Location: 12 Prev | Next Part: 14326150 *Qty: 1 THREADED PLUG Unavailable
Location: 13 Prev | Next Part: 13516924 *Qty: 4 STUD $2.68
Location: 14 Prev | Next Part: 13543424 *Qty: 11 STUD Unavailable
Location: 15 Prev | Next Part: 14326050 *Qty: 1 THREADED PLUG $1.54
Location: 16 Prev | Next Part: 13528370 *Qty: 4 THREADED INSERT $2.27
Location: 17 Prev | Next Part: 158672 *Qty: 1 PLUG $68.50
Location: 18 Prev | Next Part: 111000 *Qty: 1 GASKET $1.31
Location: 19 Prev | Next Part: 11059976 *Qty: 1 SEEGER RING $1.20
Location: 20 Prev | Next Part: 12429324 *Qty: 5 STUD $17.04
Location: 21 Prev | Next Part: 150957 *Qty: 1 BUSHING $9.59
Location: 22 Prev | Next Part: 132536 *Qty: 1 GASKET Unavailable
Location: 23 Prev | Next Part: 13522170 *Qty: 2 THREADED INSERT Unavailable
Location: 24 Prev | Next Part: 13543434 *Qty: 2 STUD $5.39
Location: 25 Prev | Next Part: 152030 *Qty: 1 PROTECTION DRILLET PLATE $29.08
Location: 26 Prev | Next Part: 13521770 *Qty: 6 THREADED INSERT $2.27
Location: 27 Prev | Next Part: 111189 *Qty: 6 SCREW $5.77
Location: 28 Prev | Next Part: 149189 *Qty: 16 WASHER $10.89
Location: 29 Prev | Next Part: 149102 *Qty: 16 SCREW $46.54
Location: 30 Prev | Next Part: 13540924 *Qty: 8 STUD Unavailable
Location: 31 Prev | Next Part: 155685 *Qty: 1 GASKET $32.31
Location: 32 Prev | Next Part: 149828 *Qty: 1 ENGINE OIL TANK COVER $259.39
Location: 33 Prev | Next Part: 12601274 *Qty: 8 WASHER $0.90
Location: 34 Prev | Next Part: 15896214 *Qty: 8 NUT Unavailable
Location: 35 Prev | Next Part: 13522270 *Qty: 4 THREADED INSERT $1.26
Location: 36 Prev | Next Part: 13543324 *Qty: 2 STUD $3.61
Location: 37 Prev | Next Part: 150961 *Qty: 1 CENTERING DOWEL $37.91
Location: 38 Prev | Next Part: 13543624 *Qty: 1 STUD Unavailable
Location: 39 Prev | Next Part: 13543524 *Qty: 10 STUD $5.37
Location: 40 Prev | Next Part: 13522070 *Qty: 2 THREADED INSERT Unavailable
Location: 41 Prev | Next Part: 151505 *Qty: 1 OIL SUCTION FAN $346.76
Location: 42 Prev | Next Part: 151515 *Qty: 1 OIL FILTER $63.53
Location: 43 Prev | Next Part: 11001224 *Qty: 1 STUD $1.04
Location: 44 Prev | Next Part: 145661 *Qty: 1 BRACKET $4.51
Location: 45 Prev | Next Part: 151913 *Qty: 1 LOCK RING Unavailable
Location: 46 Prev | Next Part: 151914 *Qty: 1 O.R. GASKET $1.19

* Quantity shown indicates the number of pieces used in the diagram.
