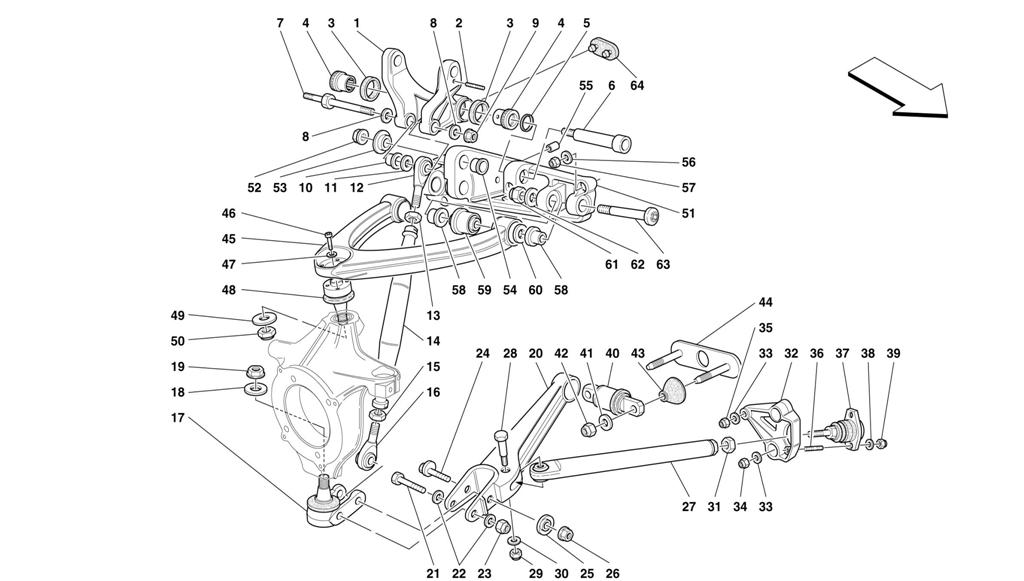

FRONT SUSPENSION - WISHBONES

Location Part # Quantity* Description Price Add To Cart
1 150932 2 SHOCK ABSORBER CONTROL ROCKER ARM $1,380.38
2 13539124 4 STUD $20.10
3 150153 4 SEAL RING $56.31
4 150152 4 BEARING $211.10
5 152022 2 SPACER $57.81
6 151983 2 FULCRUM PIN $396.84
7 153322 2 PIN $100.06
8 10732531 4 WASHER Unavailable
9 12575725 2 NUT -As an alternative- Unavailable
9 132876 2 NUT $44.13
10 150082 4 BUSHING $647.06
11 156260 2 WASHER Th. mm. 0,2 $1.81
11 156261 2 WASHER Th. mm. 0,3 -As an alternative $1.57
11 156262 2 WASHER Th. mm. 0,5 -As an alternative $1.81
11 156263 2 WASHER Th. mm. 0,6 -As an alternative $1.81
11 156264 2 WASHER Th. mm. 0,7 -As an alternative $1.37
11 156265 2 WASHER Th. mm. 0,8 -As an alternative Unavailable
11 156266 2 WASHER Th. mm. 1,0 -As an alternative $1.81
12 149125 2 BALL JOINT $638.41
13 10717477 2 NUT $4.67
14 165656 2 SHOCK ABSORBER CONTROL ROD $500.37
15 149124 2 L.H. THREADED NUT $5.77
16 149126 2 BALL JOINT $638.41
17 146999 2 BALL JOINT FOR LOWER LEVER $633.26
18 155002 2 WASHER $21.29
19 149807 2 NUT $1.48
20 152678 2 LOWER LEVER $4,831.38
21 152819 2 SCREW $36.52
22 10730514 4 WASHER -As an alternative- Unavailable
22 166448 4 WASHER $8.97
23 102742 2 NUT -As an alternative- Unavailable
23 133216 2 NUT $12.63
24 152817 2 SCREW WITH ECCENTRIC $44.13
25 152818 2 ECCENTRIC WASHER $62.10
26 132876 2 NUT $44.13
26 12575725 2 NUT -As an alternative- Unavailable
27 152623 2 LOWER LEVER TIE ROD $586.65
28 152693 2 PIN $27.59
29 12575725 2 NUT -As an alternative- -Not as spare part now -Replaced by 169183 Unavailable
29 132876 2 NUT $44.13
30 129221 2 WASHER $5.62
31 10717477 2 NUT $4.67
32 152660 2 BRACKET FOR LOWER LEVER FIXING $638.41
33 10730514 4 WASHER Unavailable
34 133216 4 NUT $12.63
35 133215 2 NUT Superseded
36 12429324 4 STUD $21.29
37 152626 2 BALL JOINT $600.47
38 10730321 4 WASHER Unavailable
39 101139 4 NUT -As an alternative- $0.90
39 133215 4 NUT Superseded
40 153746 2 BALL JOINT Unavailable
41 102901 4 WASHER Unavailable
42 102742 4 NUT As an alternative- Unavailable
42 133216 4 NUT $12.63
43 150786 4 SPACER $89.77
44 151229 2 BRACKET FOR LOWER LEVER $87.33
45 171114 1 L.H. UPPER LEVER $3,563.14
45 151290 1 R.H. UPPER LEVER $3,563.14
46 14305124 8 SCREW $0.90
47 10569279 8 WASHER Unavailable
48 130202 2 BALL JOINT FOR UPPER LEVER $1,026.67
49 150143 2 WASHER $27.38
50 169193 2 NUT $2.42
51 151811 1 L.H. UPPER LEVER SUPPORT $4,611.37
51 151812 1 R.H. UPPER LEVER SUPPORT $1,290.31
52 133216 2 NUT -As an alternative- $12.63
52 102742 2 NUT Unavailable
53 152021 2 WASHER $14.29
54 151982 2 BUSHING $30.55
55 150961 4 CENTERING DOWEL $46.57
56 12638524 10 WASHER $0.90
57 133215 10 NUT Superseded
58 152020 4 BUSHING $403.77
59 163918 4 BALL JOINT $150.10
60 152032 4 WASHER Th. mm. 0,2 $8.81
60 152033 4 WASHER Th. mm. 0,3 -As an alternative $8.81
60 152034 4 WASHER Th. mm. 0,5 -As an alternative $8.81
60 152035 4 WASHER Th. mm. 0,6 -As an alternative $8.51
60 152036 4 WASHER Th. mm. 0,7 -As an alternative $7.21
60 152037 4 WASHER Th. mm. 0,8 -As an alternative $8.51
60 152038 4 WASHER Th. mm. 1,0 -As an alternative $8.51
61 132876 4 NUT $44.13
62 152031 4 WASHER $395.83
63 152023 4 UPPER LEVER PIN $241.55
64 152615 2 END OF STROKE PAD $16.04

* Quantity shown indicates the number of pieces used in the diagram.
